User Manual

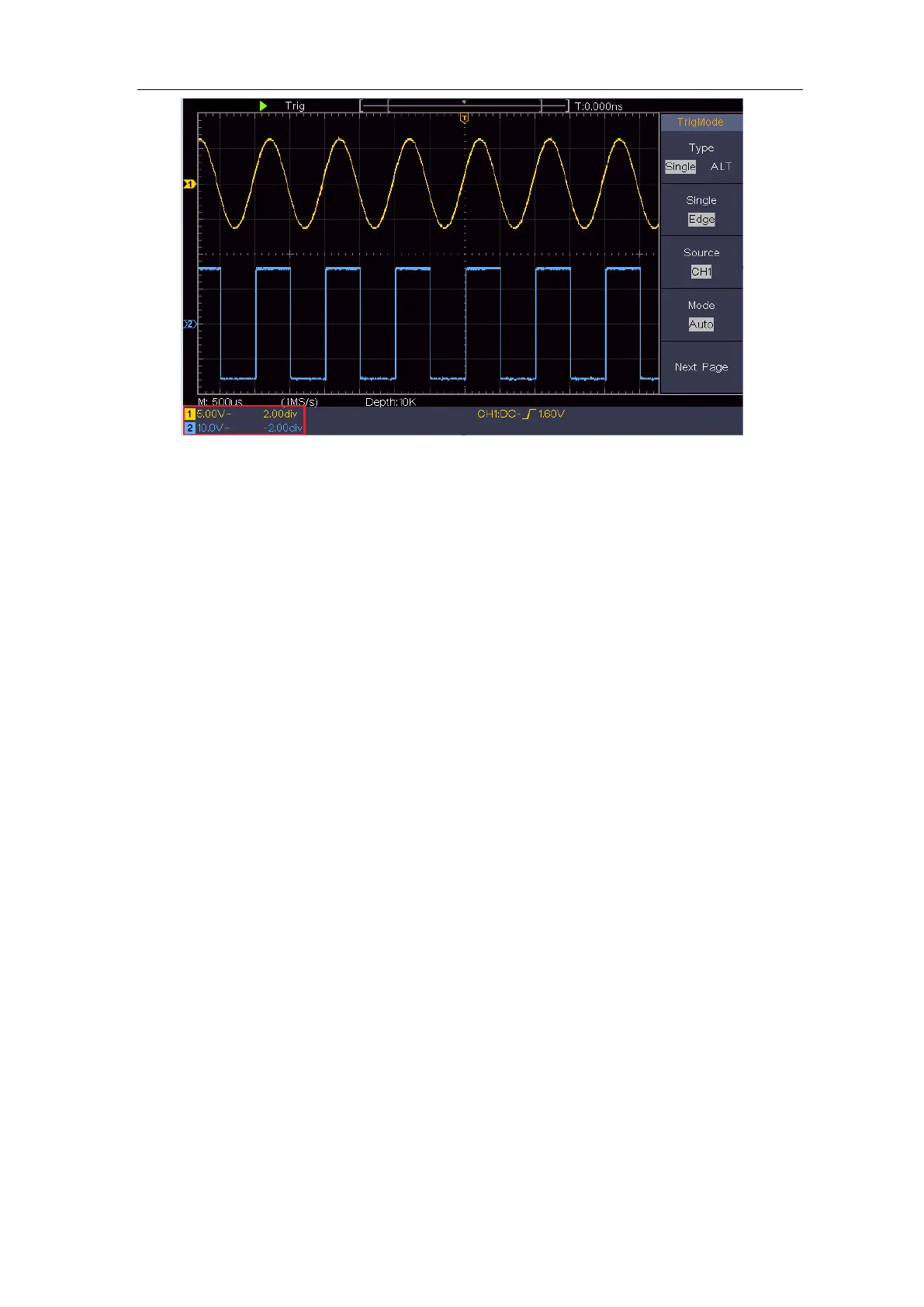

Figure 4-1 Information about Vertical Position
How to Set the Horizontal System
The HORIZONTAL CONTROLS includes the Horizontal HOR button and such
rotary controls as Horizontal Position and Horizontal Scale.
1. Horizontal Position rotary control: this rotary control is used to adjust the
horizontal positions of all channels (include those obtained from the
mathematical manipulation), the analytic resolution of which changes with the
time base.
2. Horizontal Scale rotary control: it is used to set the horizontal scale factor for
setting the main time base or the window.
3. Horizontal HOR button: push it to switch between the normal mode and the
wave zoom mode. For more detailed operations, see the introductions below.
Zoom the Waveform
Push the Horizontal HOR button to enter wave zoom mode. The top half of the
display shows the Main window and the bottom half displays the Zoom window. The
Zoom window is a magnified portion of the Main window.
