MULTILIFT ULTIMA S - Sub frame dimensions S & Z

Installation
Ultima Hooklift 01/2020
13

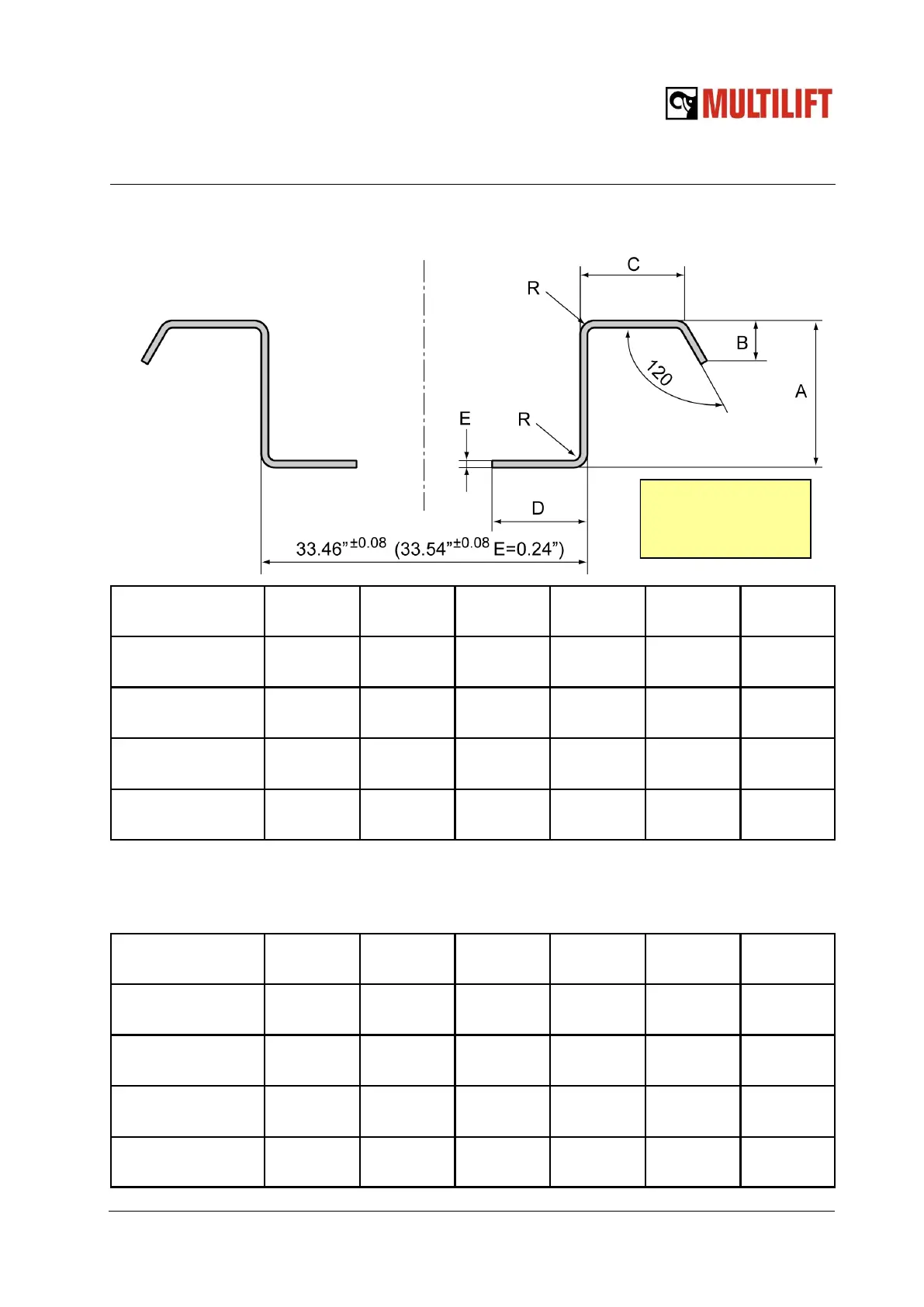

3.3 Sub frame dimensions S & Z
The values in the next table are calculated with both side Z-beams and standard amount of
cross members when the beams are working together. If the value is needed only for one
beam, then the value can be halved.
The sub frame profile
material EN10149:
ULT14-16-18: S500MC
ULT21-26-30: S355MC
Hooklift type A (in) B (in) C (in) D (in) E (in) R (in)
ULT14S
ULT16S46-56
5.71 1.85 4.45 4.21 0.2 0.2
ULT16S55, 59-61
ULT18S/Z
5.71 1.89 4.45 4.21 0.24 0.24
ULT21S/Z
ULT24S, ULT26Z
6.5 1.93 4.76 4.21 0.31 0.31
ULT26S
ULT30S
6.5 1.93 4.76 4.21 0.31 0.31
Hooklift type
A sub frame
(in
2
)
Wx top flange
(in
3
)
e top flange
(in)
Wx bottom fl.
(in
3
)
e bottom fl.
(in)
Ix
(in
4
)
ULT14S
ULT16S46-56
5.9226 12.5773 2.64 10.1166 -3.07 32.0071
ULT16S55, 59-61
ULT18S/Z
7.3331 14.6526 2.64 12.2196 -3.07 38.0368
ULT21S/Z
ULT24S, ULT26Z
9.7588 22.4813 2.87 14.8327 -3.62 64.6000
ULT26S
ULT30S
10.6144 26.1114 3.31 21.5104 -3.98 85.9036
