Installation
Ultima Hooklift 01/2020
24

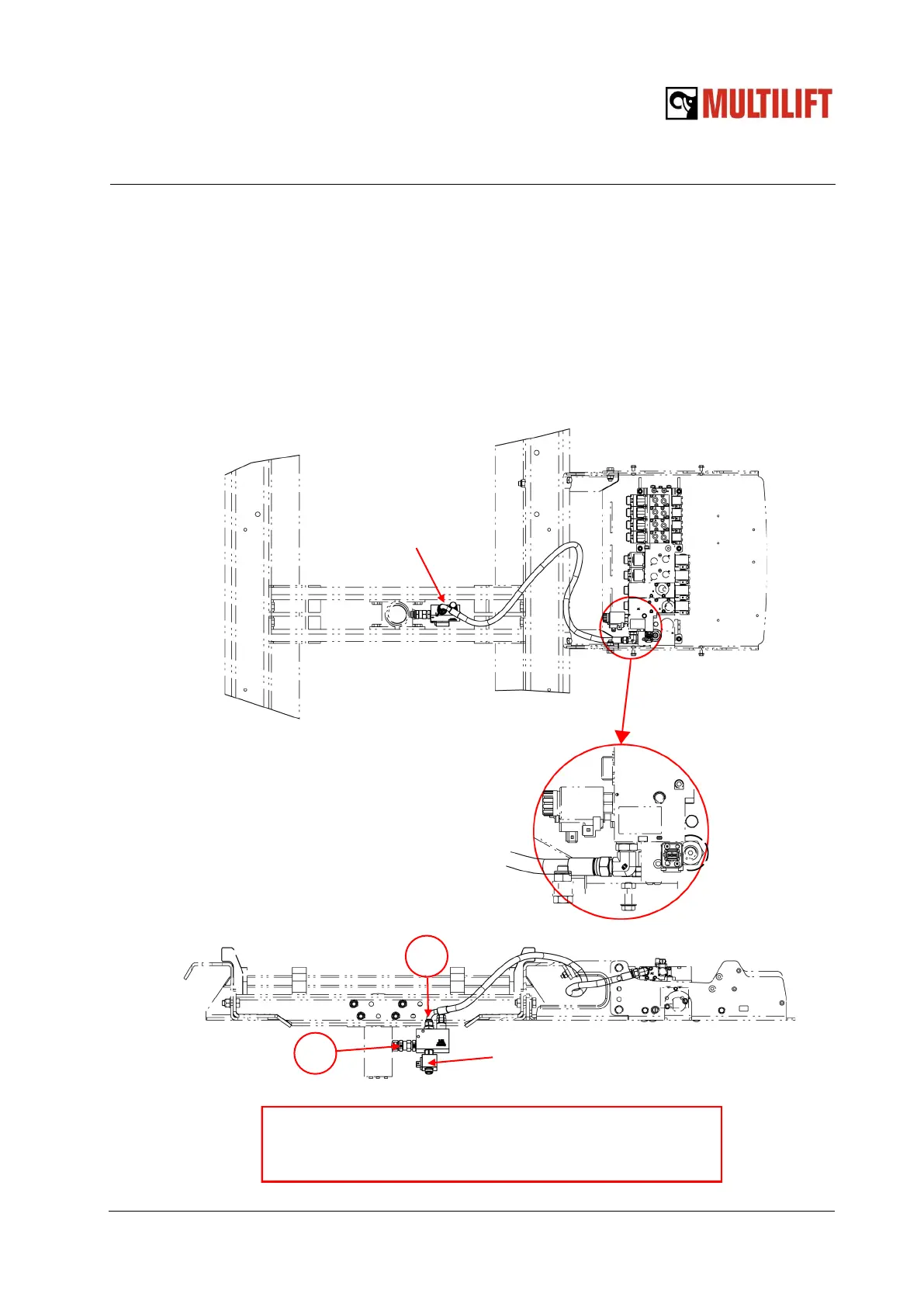

3.9.1 Hydraulic connections of helping cylinder in ULT26S70/78, ULT30S and ULT26Z
Ultima Flex & Pro
After installation of the helping cylinder cross member connect the pressure hose In the side of
the control valve to the elbow connector. Remove the plug from the connector and connect the
hose. The tightening torque is 51.6 ft-lb.
The electric connector 121 for the solenoid valve is located near the control valve.
NOTE! Hose fitting
and valve must be
tilted slightly so that
hose fitting does not
collide with valve car-
tridge.
P
T
NOTE! Valve must be assembled according to drawing.
Wrong assembly can cause severe material damages!
121 connector in
valve harness
CV side middle
