Installation
Ultima Hooklift 01/2020
47
6.2 Top Seat Control (Optional in Ultima Flex & Pro)
Top seat control allows the user to operate hooklift from loader crane cabin or other location.
Top seat control module is preinstalled and parameters are set in the control system. The top
seat controller (1) or alternative controller cable (2) without controller are located in the packing
box. Install the controller to a suitable place where it is easy to use. The emergency stop is set
on as standard. When the emergency stop button is pushed down, then the text “StOP” ap-
pears in the display of the cabin controller. When the top seat controller is activated, then a
text “-C2-” appears in the display.

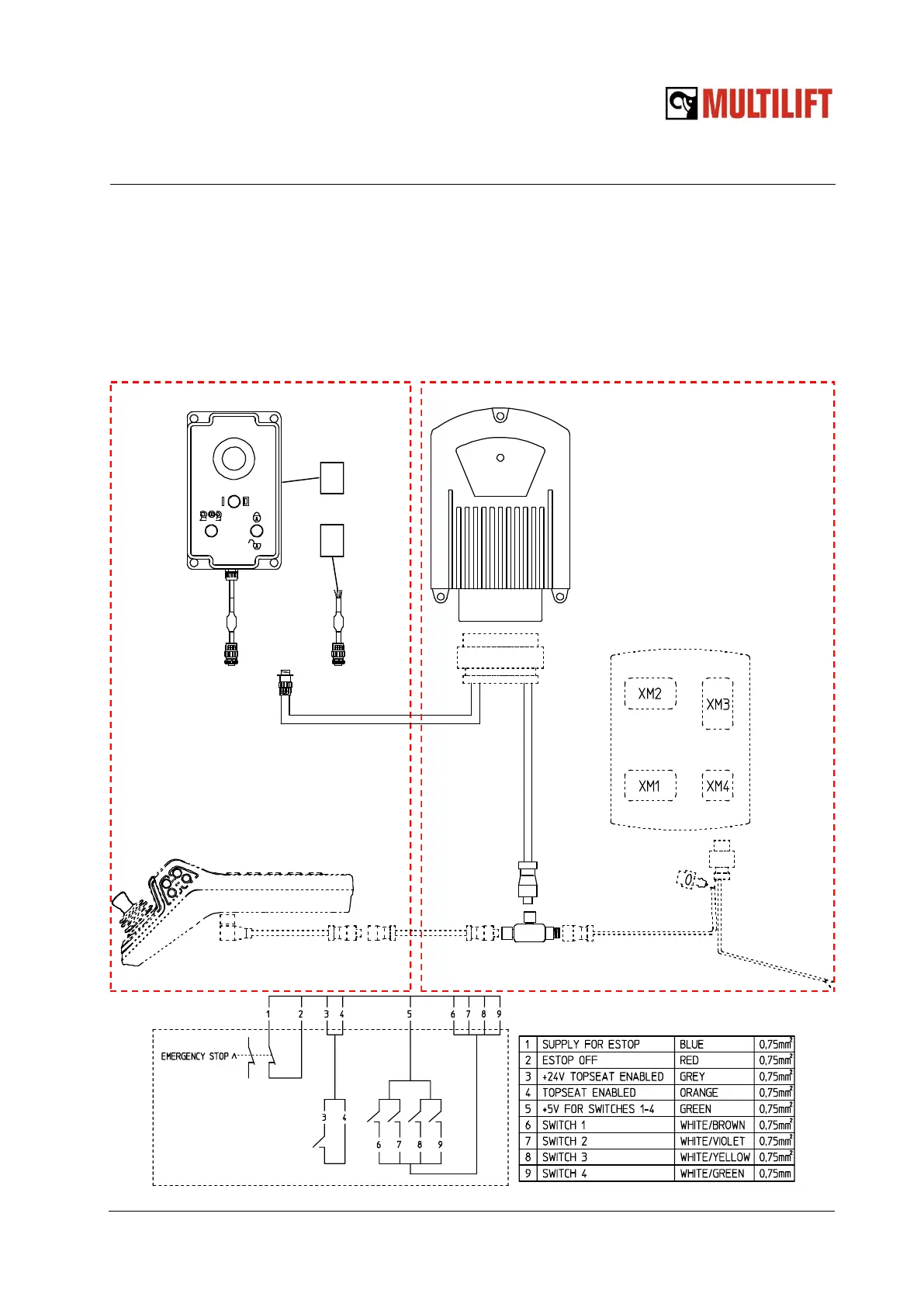

Top seat controller Extension module
36 ft 36 ft
Preinstalled in
the factory
Parts in the
packing box
1
2
