MULTILIFT ULTIMA S - Main components of steel construction Z & ZL

Installation
Ultima Hooklift 01/2020
7
2. Construction of ULTIMA Hooklift

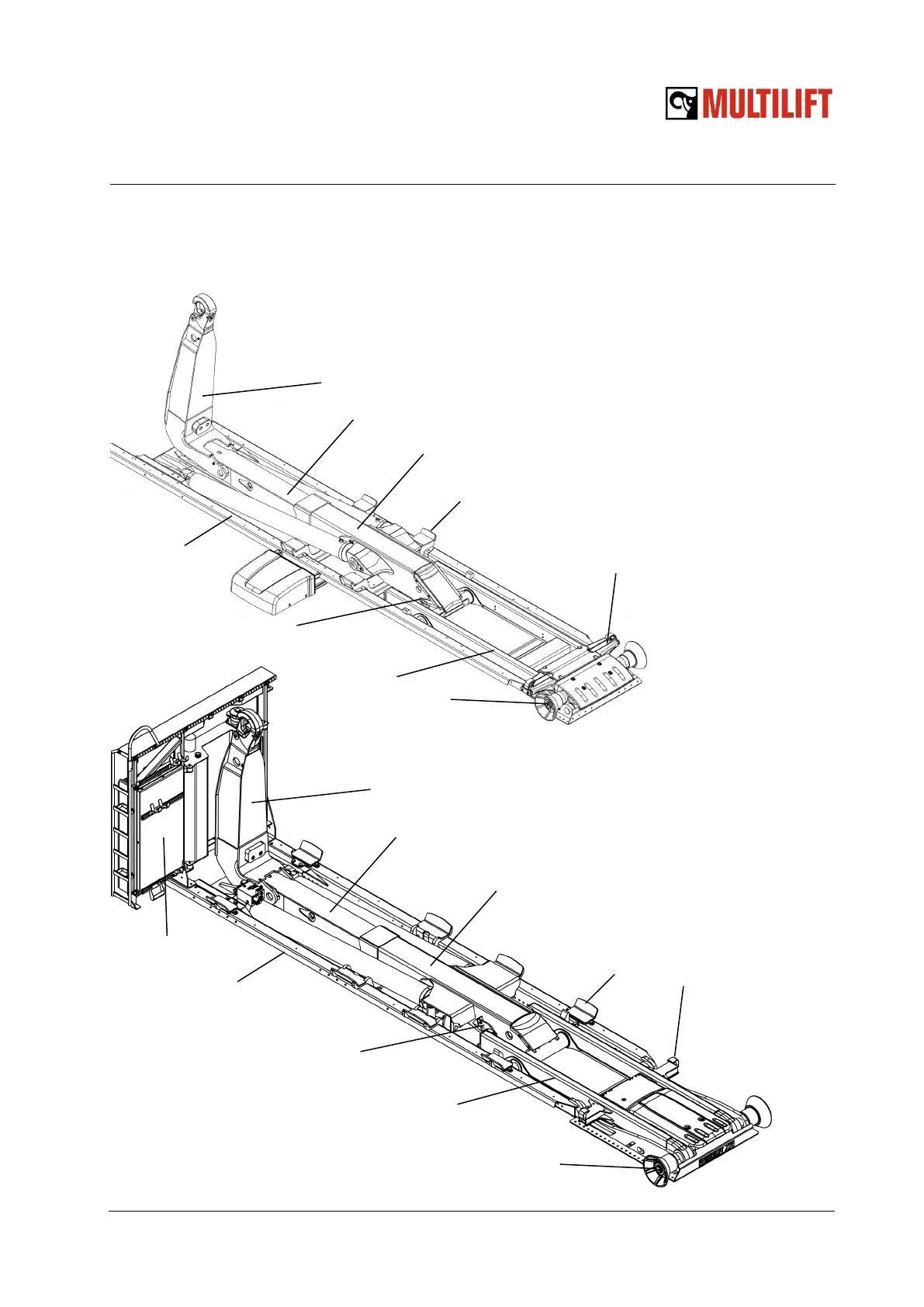

2.1 Main components of steel construction Z & ZL
Ultima ZL
Ultima Z
1. Tilting hook arm Z
2. Slide frame Z
3. Middle frame
4. Rear frame
5. Sub frame
6. Container body supports
7. Hydraulic locking
8. Tipping lock
9. Rear rollers
10. Tool console
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
