Installation
Ultima Hooklift 01/2020
23
3.9 Helping cylinder for tipping in ULT26S70/78, ULT30S and ULT26Z

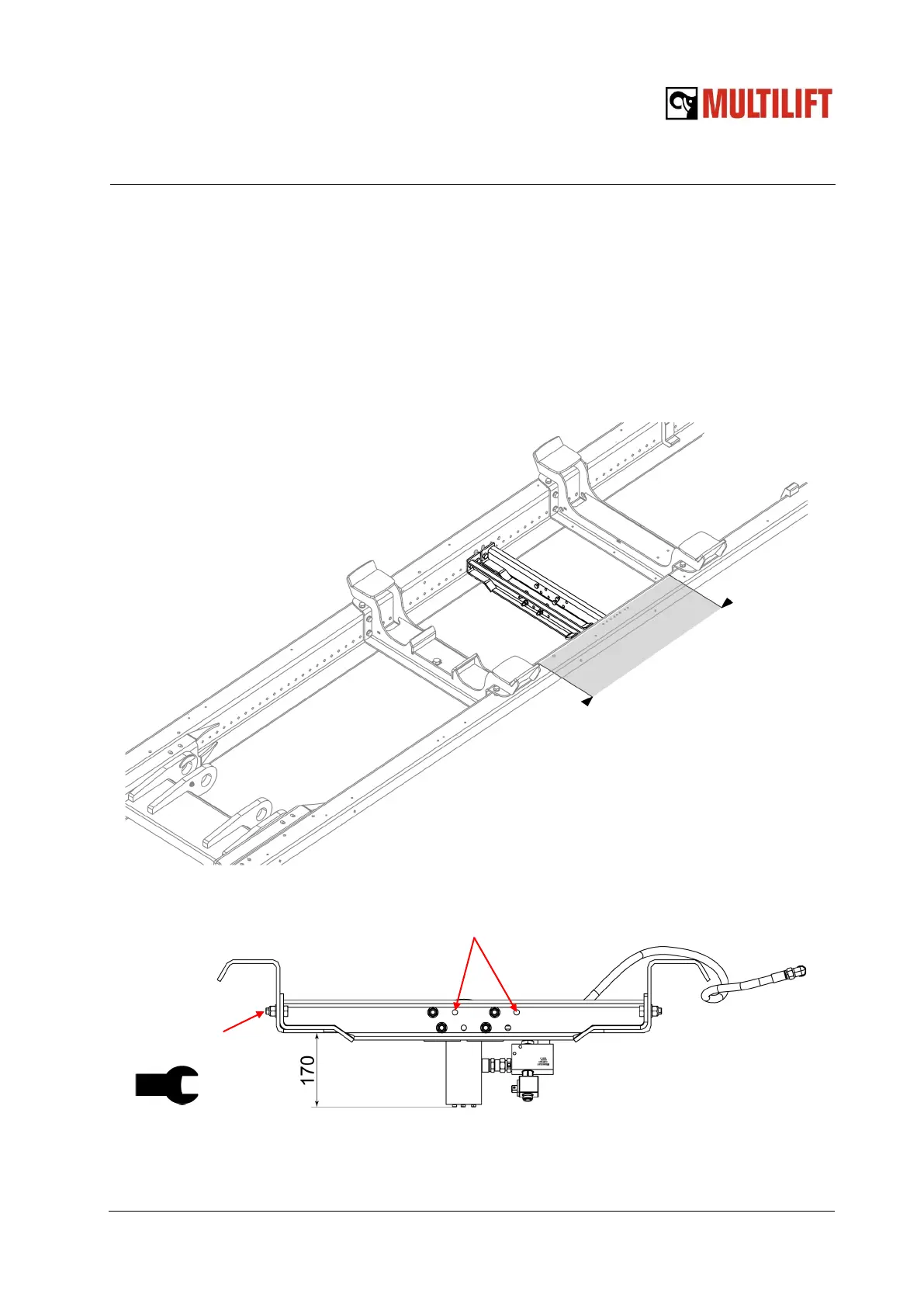

The helping cylinder beam is delivered loose in the installation kit and it should be installed to
the subframe in the area between the middle body support beams shown in the picture below.
Check that the structural parts in the truck chassis allow free installation and that the hydraulic
pipes or connectors under main cylinders do not hit the beam. The beam is fastened to the
subframe with the M14x40 10.9 bolts included in the kit. The tightening torque is 88.5 ft-lb. In
the beam there are alternative holes to move the cylinder about 2” sideways.
Area to install the
helping cylinder beam
Alternative fastening holes
M14x40 10.9
88.5 ft-lb
121 connector in
valve harness
Hose to CV
