Installation
Ultima Hooklift 01/2020
18

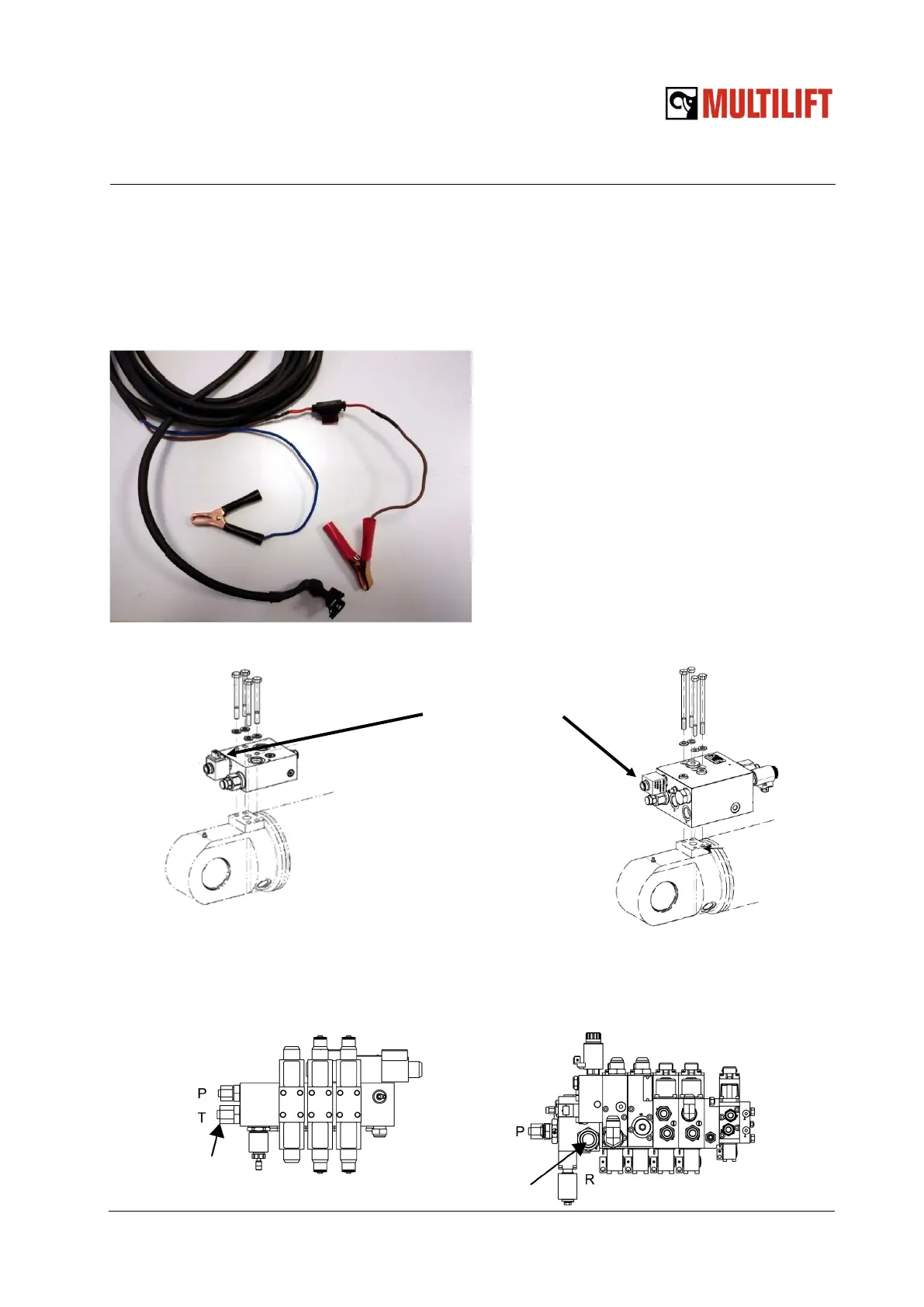

3.6 Releasing pressure from main cylinders
There can be some oil pressure in main cylinders that might slightly bend the subframe of the
hooklift. Before the mounting plates are installed the pressure must be released. This is done
by feeding +24V power to the floating valve solenoid 122 on left side main cylinder.
Use adapter cable MU113937001.
1. Fuse holder with 5A fuse
2. Battery clamp +24VDC
3. Battery clamp GND
4. Connector 122 for floating valve
1
2
3
4
Version without fast speed Version with fast speed
FLOATING 122
If the hooklift is not equipped with preinstalled oil reservoir, then open the plug from the tank
line connector on the control valve before activating the solenoid and catch up the oil
(max. 1 pt).
If the hooklift is equipped with preinstalled oil reservoir, the tank connector does not need to be
opened.
Ultima Base Ultima Flex & Pro
