6.6 Rear view camera control connections

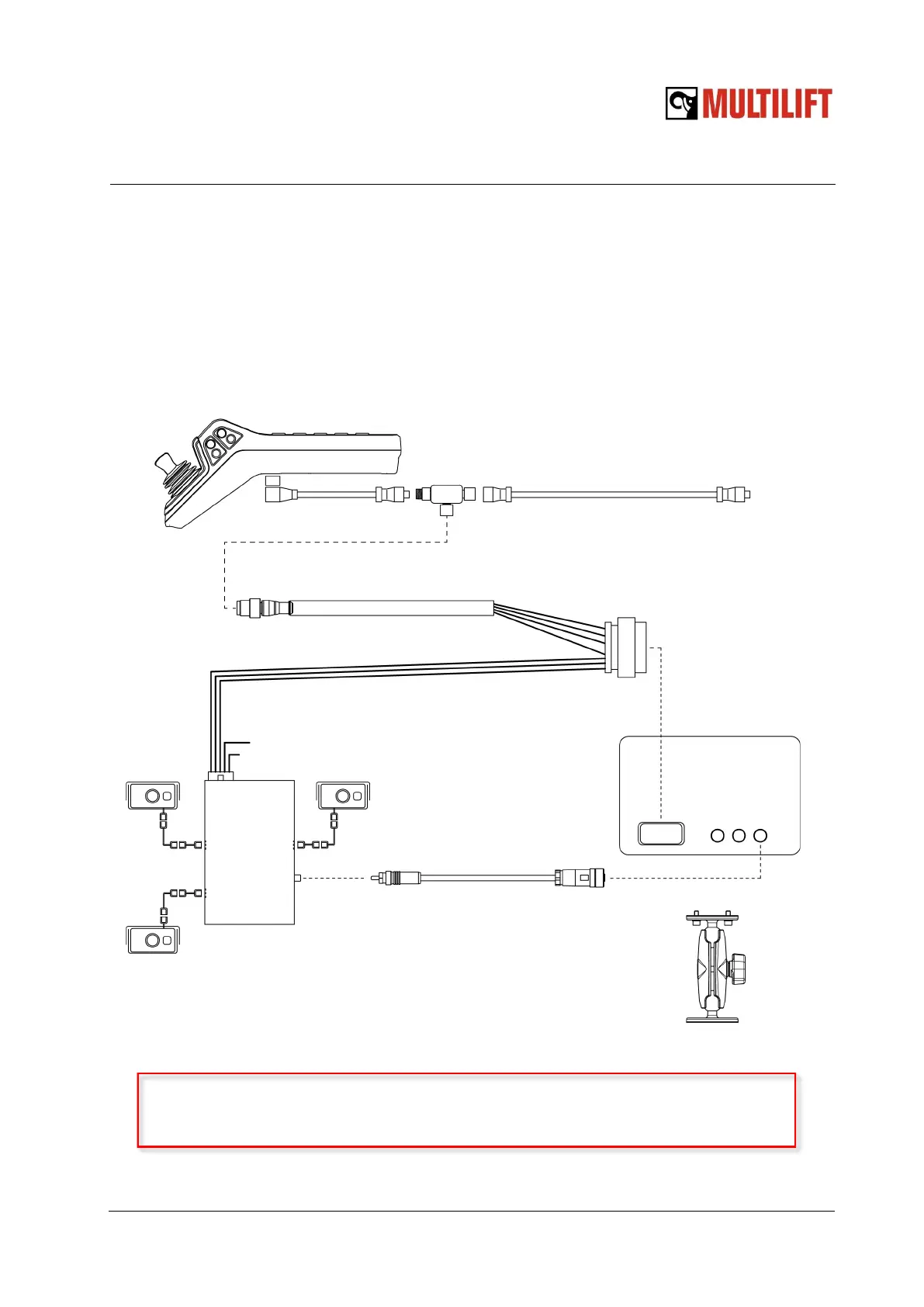

There are three rear view cameras which are installed to cabin back wall, close to rear rollers
and on the rear bumper. The cameras include 65 ft extension cables which are connected to
the 8” connections cables and to the camera switch box. The switch box together with the dis-
play are to be installed close to each others inside the cabin to a suitable place.
Note! Do NOT use the cables included in the camera switch box.
Always use only the MULTILIFT cables!
Flex display adapter cable 10 ft
CC adapter cable 3.2 ft
M12 T-splitter
CAN extension cable
Flex display
Camera adapter cable 3.2 ft
Display bracket
B+ (red) Vehicle power supply 1m (fuse 3A)
GND (black) 3.2 ft
Rear bumper
camera
Cabin back wall
camera
Rear rollers
camera
Camera
switch box
Camera switch box power & trigger wires 3.2 ft
Read the switch box and camera installation manuals included in the packing
box before installation!
