Installation
Ultima Hooklift 01/2020
53

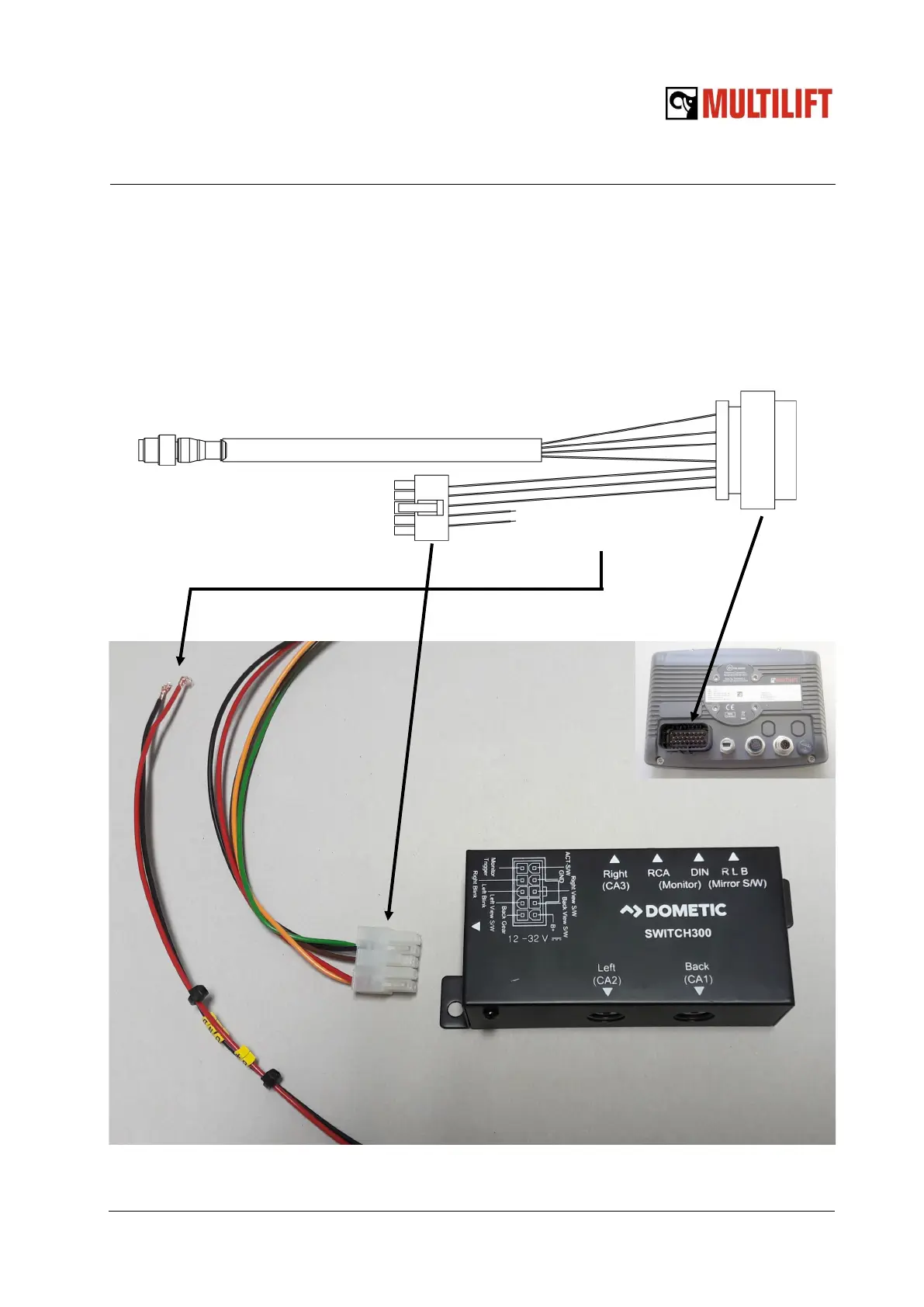

Display adapter cable connections
The display adapter cable is connected to the camera switch box, to the display and to the
hooklift control system.
Note! Do NOT use the cables included in the camera switch box.
Always use only the MULTILIFT cable MU113994801!
M12 connector to splitter in
hooklift control system
Connector to
Flex Display
Connector to
Camera switch box
B+ (red) to vehicle power supply
GND (black) to ground
MU113994801
L=10ft
L=3.2ft
