Installation
Ultima Hooklift 01/2020
48

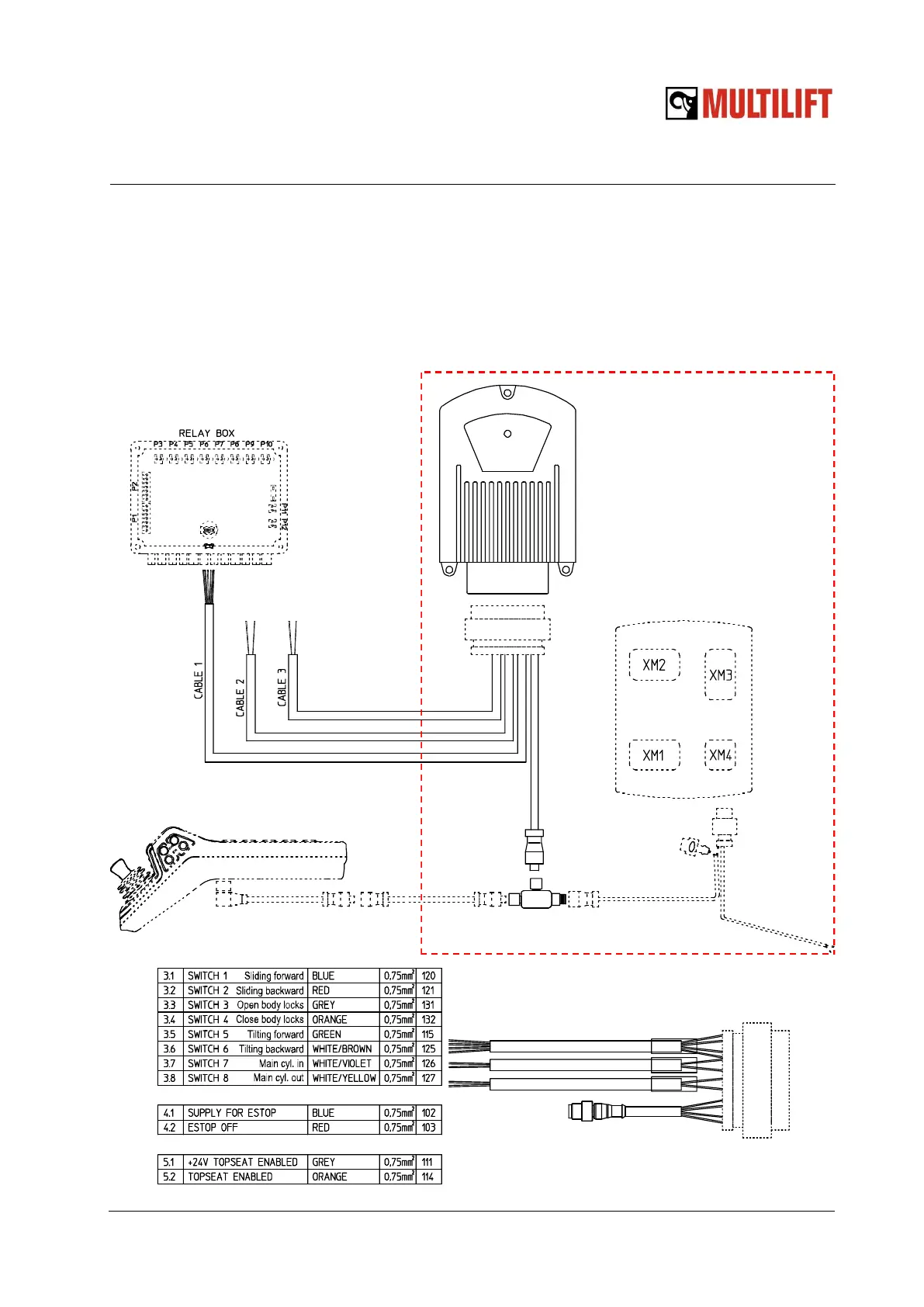

6.3 External Control (Optional in Ultima Flex & Pro)
External controls option allows the user to operate hooklift with another controller for instance
a loader crane controller. External controls harness is preinstalled and parameters are set to
the control system. Install the cables 1, 2 and 3 to the external control system according to the
instruction given by the manufacturer. When the external controller is activated, then a text
“-C2-” appears in the display of the cabin controller.
Preinstalled in
the factory
33 ft
Extension module
External controls harness
