6 Accessories
6.1 Dashboard harness (Optional in Ultima Flex & Pro)

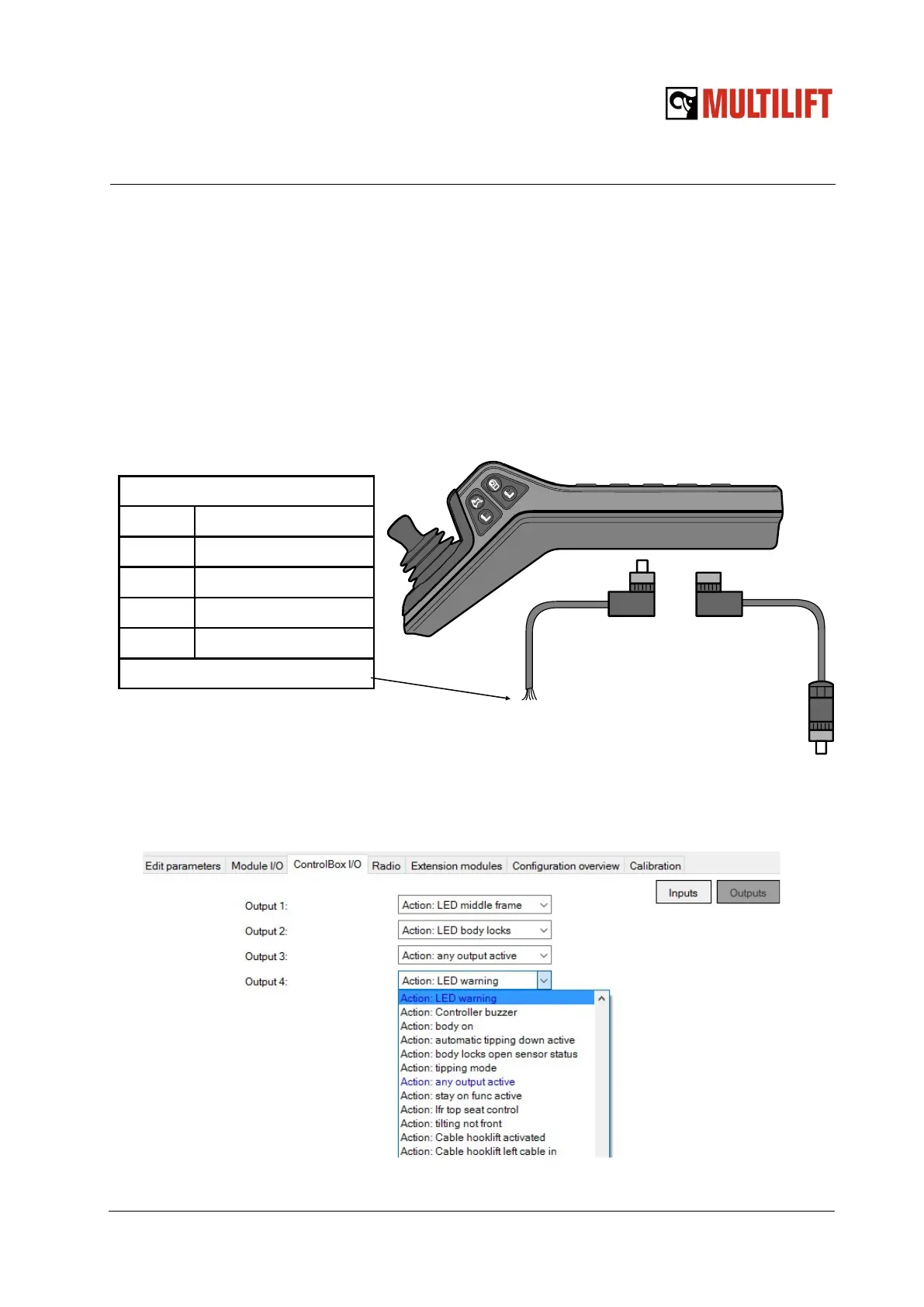

The dashboard harness is used to connect additional warning lights, warnings buzzer or other
signal information into the dashboard of the truck. If the hooklift is delivered with the dashboard
harness there is a 33 ft 5-wire M12 cable included in the packing box. Install the cable into the
dashboard warning lights / buzzer is located and connect the M12 connector in the bottom of
the control unit.
Adjust the outputs with the service tool software.
M12 5-pole
dashboard
harness
L=33 ft
Wires
Brown Output 1
White Output 2
Blue Output 3
Black Output 4
Grey GND
Max. output 0,5A each
