Installation
Ultima Hooklift 01/2020
44

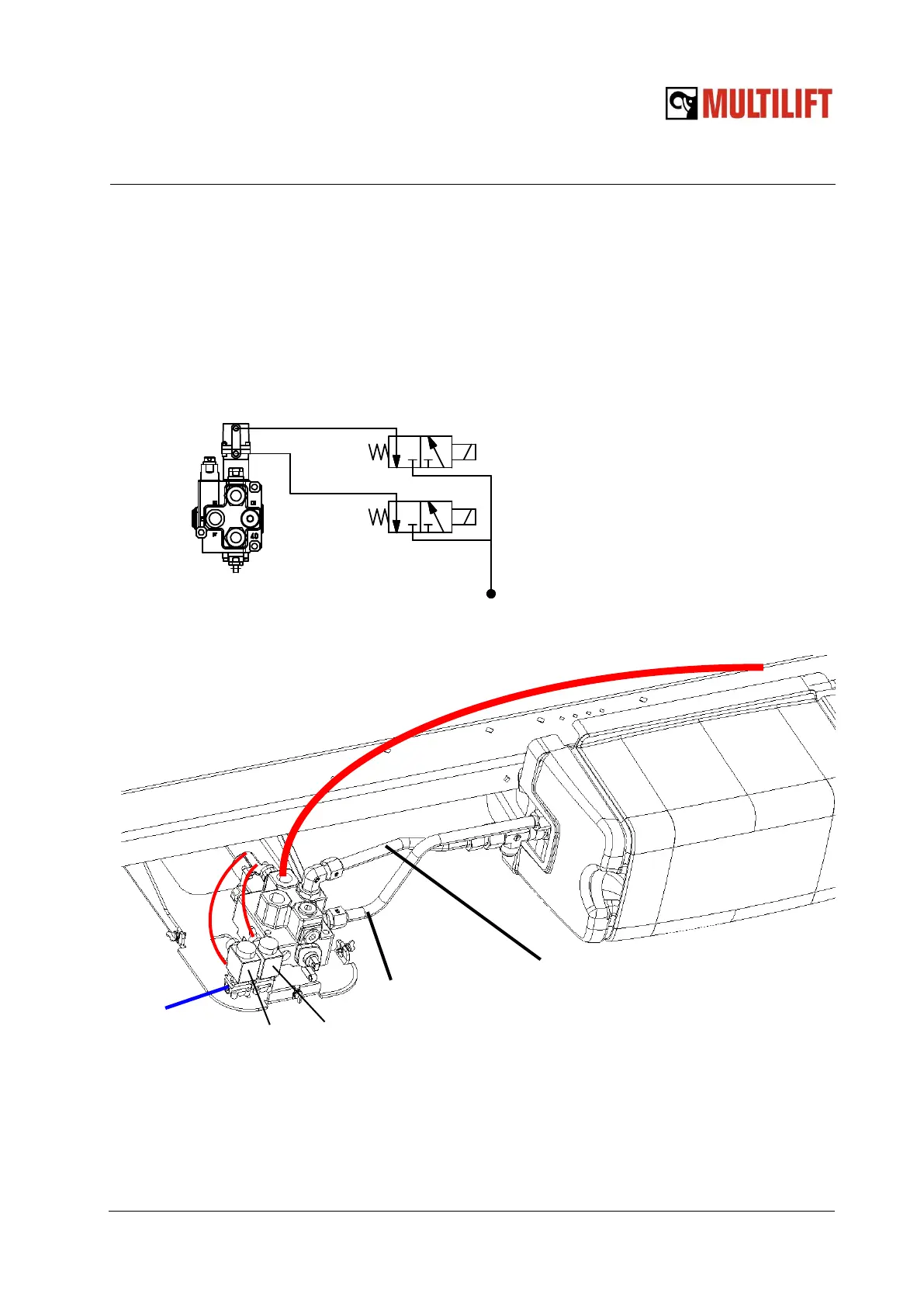

5.3 Installation of the Trailer tipping ”High flow” ULTIMA BASE
Before installing the pneumatic system check the truck manufacturer’s instructions on the cor-
rect connection and the system pressure. The working pressure of the hooklift components is
100 psi. The maximum pressure for the pneumatic system is 145 psi. Use pressure regulator if
needed.
The solenoid valves (Herion) where the air feed is connected are located next to the trailer tip-
ping high flow valve. Remember to follow cleanliness guidelines when installing the pneumatic
connections.
206 Trailer tipping up
205 Trailer tipping down
Air feed 100 psi
206
205
Air feed 100 psi
Pressure, hydraulic
Return line, hydraulic
Hydraulic line
