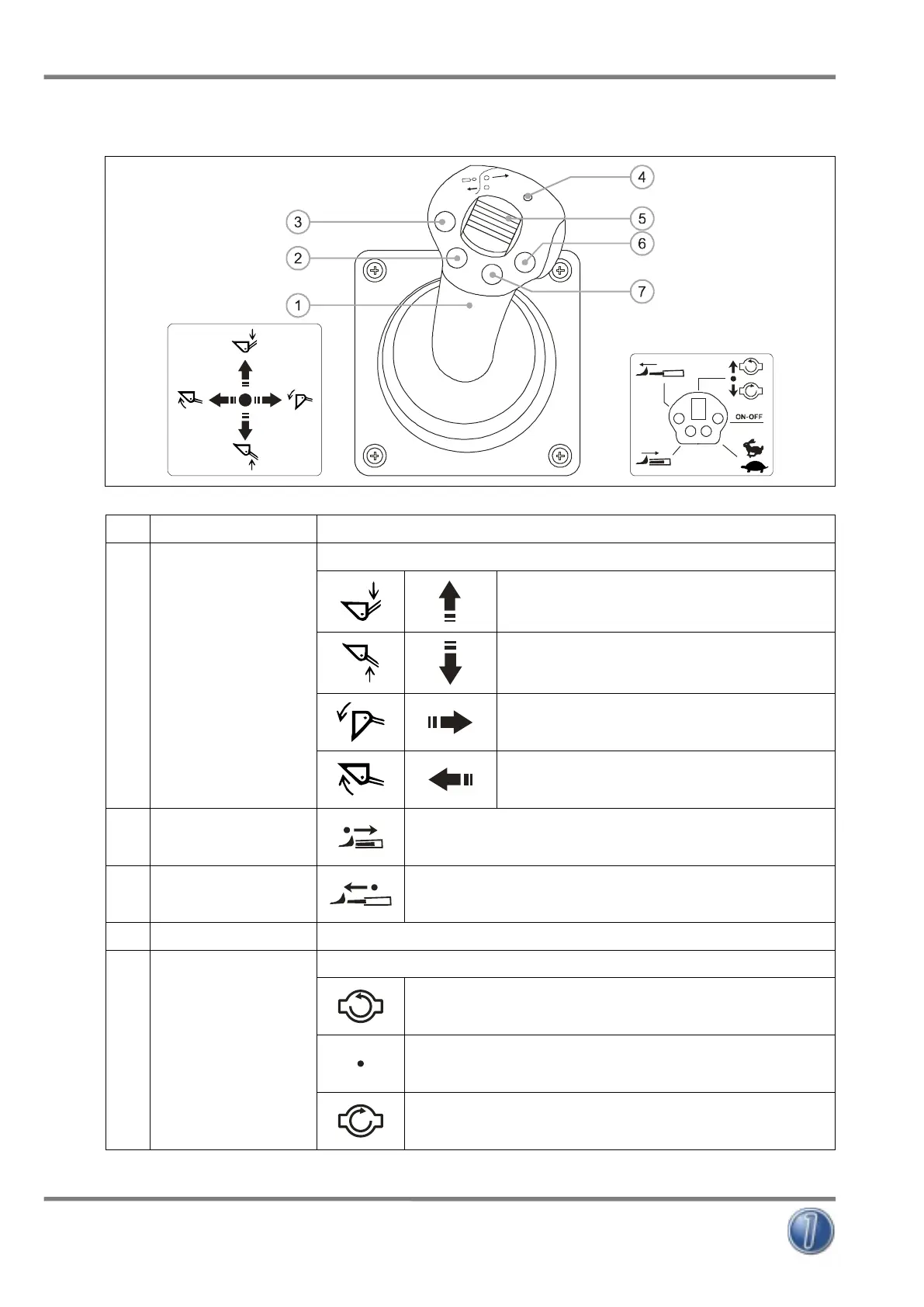

4.3.3 Joystick
FIG. 5
Ref. Name Function
1 Joystick
It controls the movement of the lifting arm and of the quick coupler.
• Position “Forward” (at maintained action): it lowers the
lifting arm.
• Position “Backward” (at maintained action): it raises the
lifting arm.
• Position “Right” (at maintained action): it inclines the quick
coupler forward.
• Position “Left” (at maintained action): it inclines the quick
coupler backward.
2 Gray button Pressed (at maintained action): it withdraws the arm.
3 Orange button Pressed (at maintained action): it extends the arm.
4 Joystick activation light With steady “green” light it indicates that the multifunction joystick is operating.
5 Yellow selector
It controls the hydraulic outlets and in the same time the rear additional hydraulic outlets (optional).
• Pos. “Forward”: it actuates the operation of interchangeable attachment.
• Pos. “center”: off the interchangeable attachment.
• Pos. “backward”: it reverses the operation direction of the interchangeable
attachment.
cont.
