MultiOne 6 Series User Manual

MultiOne SRL
Self-moving Compact wheel loader, articulated frame, equipped with
multipurpose quick coupler, MULTIONE 6 Series
Instruction manual (Translation of the original instructions)
CM150032EN - 16.06.15 - 05 (11.07.18)
26/76
WARNING
FOR FURTHER TECHNICAL DATA REFER TO ENGINE MANUAL ENCLOSED.

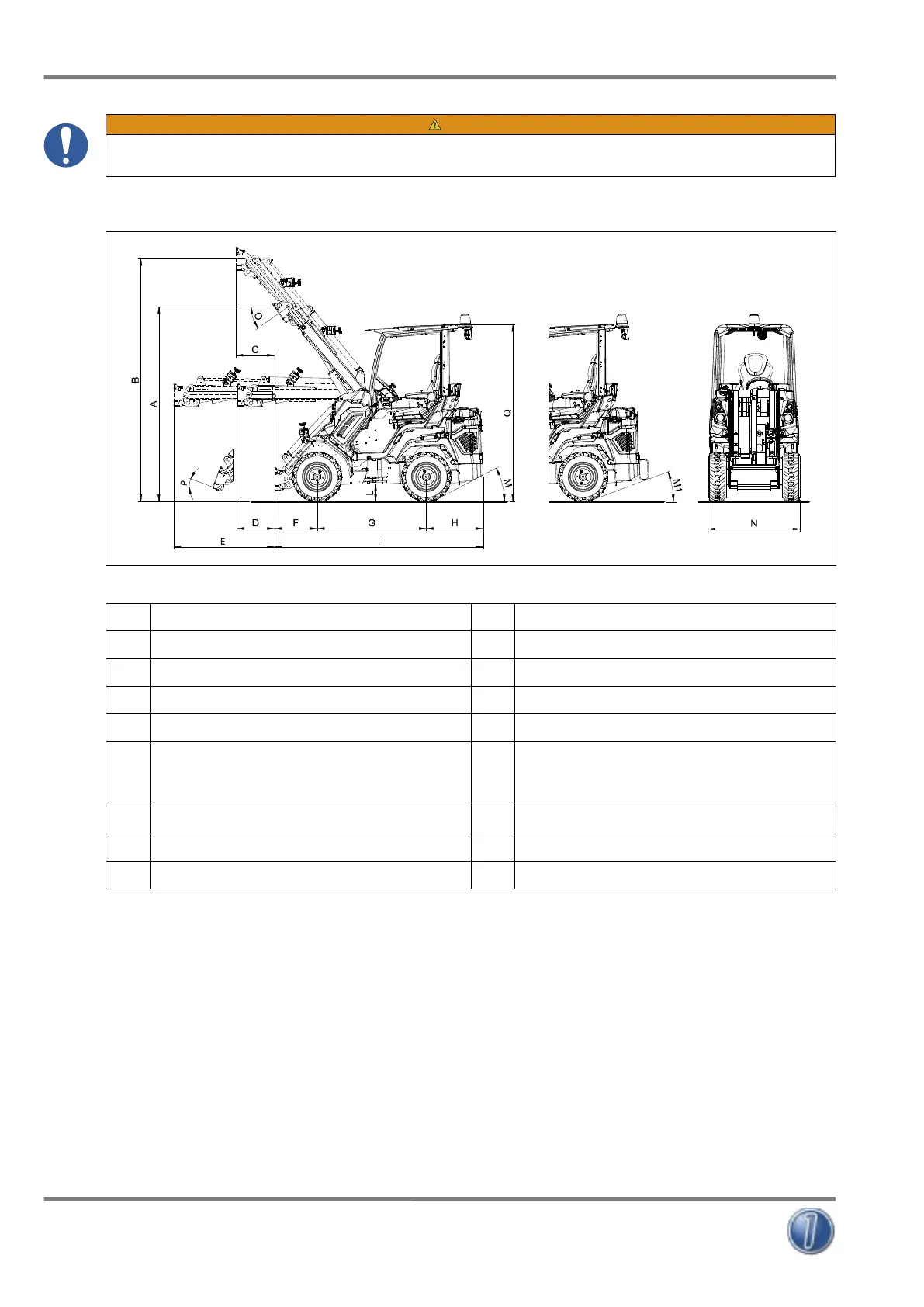

4.5.2 Dimensions
FIG. 8
Ref. Dimensions Ref. Dimensions
A 90.1 in / 2290 mm I 96.3 in / 2445 mm
B 115 in / 2920 mm L 8.3 in / 210 mm
C 17.9 in / 455 mm M 28°
D 17.5 in / 445 mm M1 21°
E 46.6 in / 1185 mm N
42 in / 1070 mm
NOTE: This dimension may change
depending on the tires installed.
F 19.7 in / 500 mm O 36°
G 50.4 in / 1280 mm P 29°
H 26.2 in / 665 mm Q 79.5 in / 2020 mm
TAB. 13
