MultiOne 6 Series User Manual

Instruction manual (Translation of the original instructions)
CM150032EN - 16.06.15 - 05 (11.07.18)
61/76
Self-moving Compact wheel loader, articulated frame, equipped with
multipurpose quick coupler, MULTIONE 6 Series
MultiOne SRL
12) Check again the hydraulic oil level (see par. 9.8.6).
ATTENTION
THE USED OIL AND FILTER MUST BE DISPOSED OF IN ACCORDANCE TO THE LAWS IN FORCE IN THE COUNTRY WHERE THE
MACHINE IS USED.
1
2
2
2
1
1

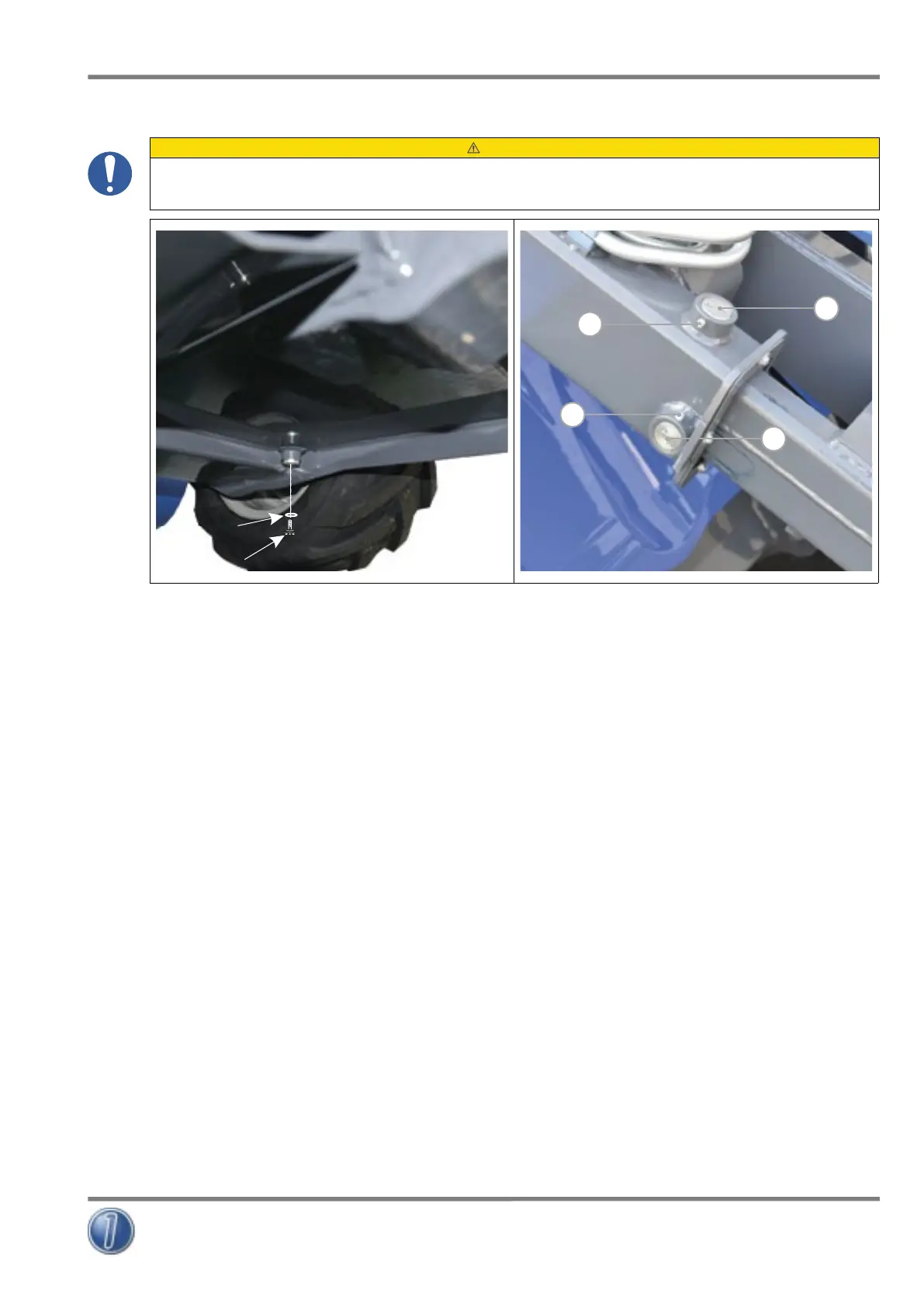

FIG. 40
FIG. 41
9.8.8 Adjust the boom guide shoes
All the four guide shoes must be adjusted.
To adjust the boom guide shoes proceed as follows:
1) Put the machine in “safety state” (see par. 9.2).
2) Loosen the lock screws (FIG. 41 - Ref. 1).
3) Using an appropriate tool, slowly rotate the top adjustment screw (FIG. 41 - Ref. 2) clockwise until slight resistance is felt.
4) Tighten the lock screw (FIG. 41 - Ref. 1), securing the boom guide adjustment screw in position.
5) Repeat these adjustment procedures for the opposite side boom guide shoes.
If the guide shoes is too worn, replace them with new ones supplied by the manufacturer.
MAINTENANCE -9
