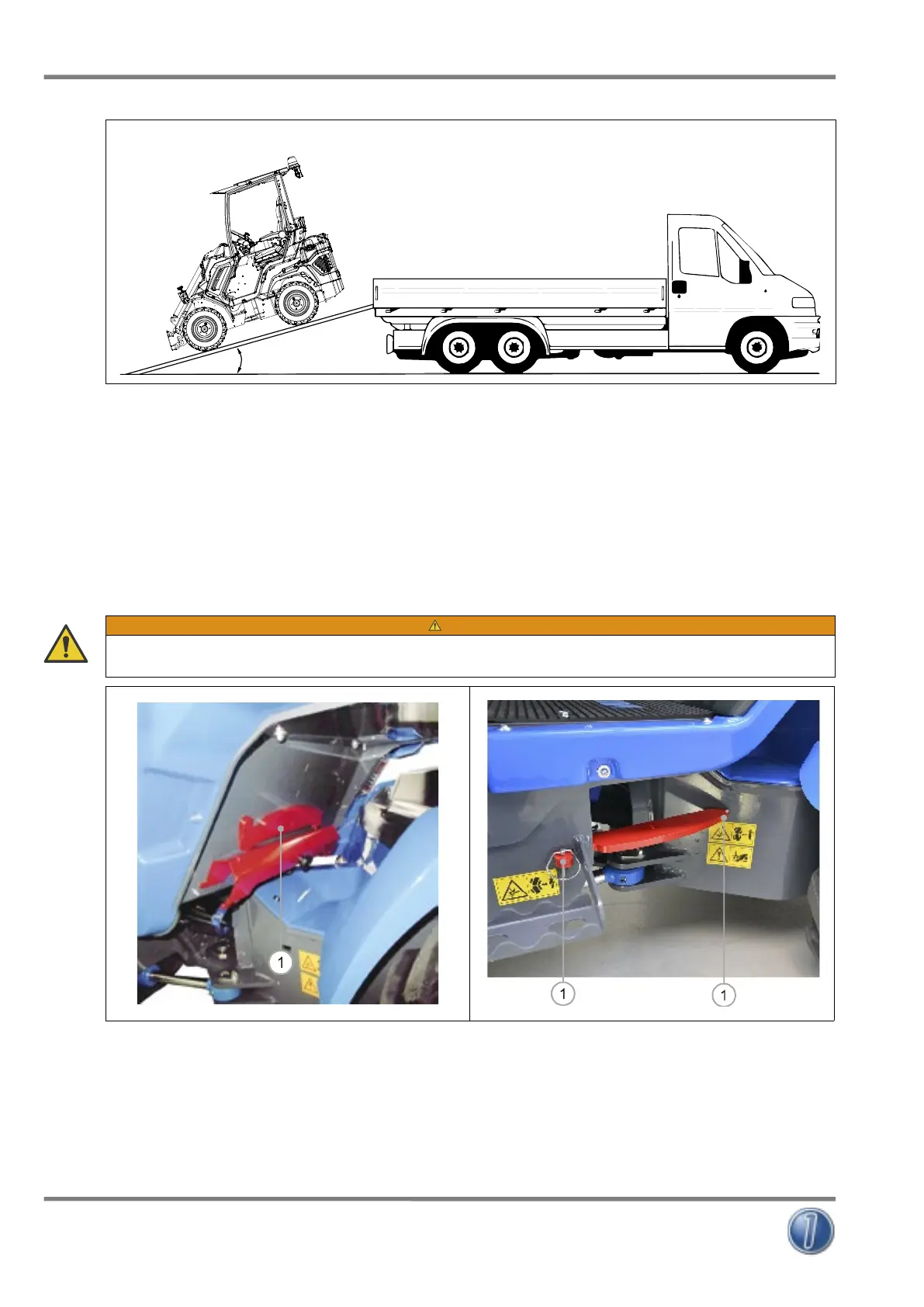

FIG. 15
MAX 30°
5.2.1 Installation procedure of the steering lock bracket
The steering lock bracket is placed under the driving seat.
When you must use the bracket proceed as follows:
1) Stop the machine not steering.
2) Activate the parking brake (see par. 8.3.7).
3) Loosen the knob (FIG. 16 - Ref. 1) fixing the steering lock bracket and that of the locking of the lifting arm.
4) Insert the bracket (FIG. 17 - Ref. 1) into the two slits placed on the left side of the machine near the joint of the central steering
and secure it by the appropriate plug.
5) Operate on the steering in order to facilitate the position of the bracket.
WARNING
THERE ARE RESIDUAL RISKS N.1, N.2, N.4 AND N.5 (SEE PAR. 3.2).
FIG. 16 FIG. 17
5- TRANSPORT AND HANDLING

MultiOne 6 Series Specifications

General

Brand	MultiOne
Model	6 Series
Category	Compact Loader
Language	English
