MultiOne 6 Series User Manual

Instruction manual (Translation of the original instructions)
CM150032EN - 16.06.15 - 05 (11.07.18)
71/76
Self-moving Compact wheel loader, articulated frame, equipped with
multipurpose quick coupler, MULTIONE 6 Series
MultiOne SRL

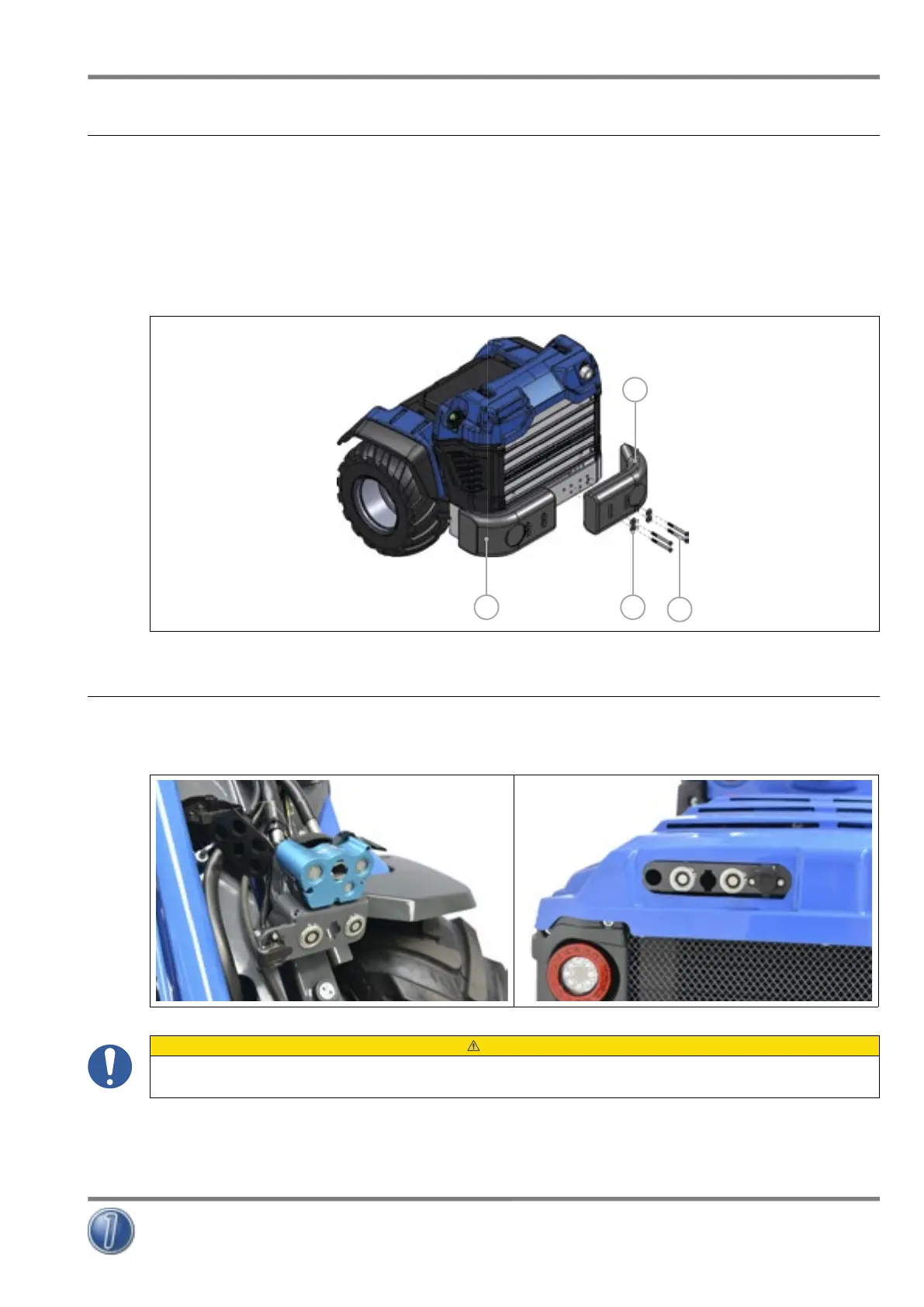

11.4 Backweights (option)
The backweights set adds approximately 184 kg of weight to the rear end of the machine, increasing the overall working capacity
of the machine.
To install the backweights proceed as follows:
1) Put the machine in “safety state” (see par. 9.2).
2) Using a lifting device, position one of the backweights (FIG. 53 - Ref. 1) at the rear bumper of the machine.
3) Secure the backweight to the bumper using the bolts and washers (FIG. 53 - Ref. 3 and Ref. 4).
4) Repeat the procedure for the second half of the backweights (FIG. 53 - Ref. 2).
5) To remove the backweights, reverse Steps 1) - 3).
FIG. 53
1
3
2 4
11.5 Additional hydraulic outlets (option)
The machine can be equipped with:
• front additional hydraulic outlets (see FIG. 54), activated by switch (TAB. 5 - Ref. 14).
• rear additional hydraulic outlets (see FIG. 55), activated by the yellow selector of the joystick (FIG. 5 - Ref. 5).
FIG. 54
FIG. 55
ATTENTION
TO WORK WITH ADDITIONAL FRONT OUTLETS AND REAR ADDITIONAL OUTLETS THE HI-FLOW SHALL BE SET OFF.
ANNEXES -11
