MultiOne SRL
Self-moving Compact wheel loader, articulated frame, equipped with
multipurpose quick coupler, MULTIONE 6 Series
Instruction manual (Translation of the original instructions)
CM150032EN - 16.06.15 - 05 (11.07.18)
48/76

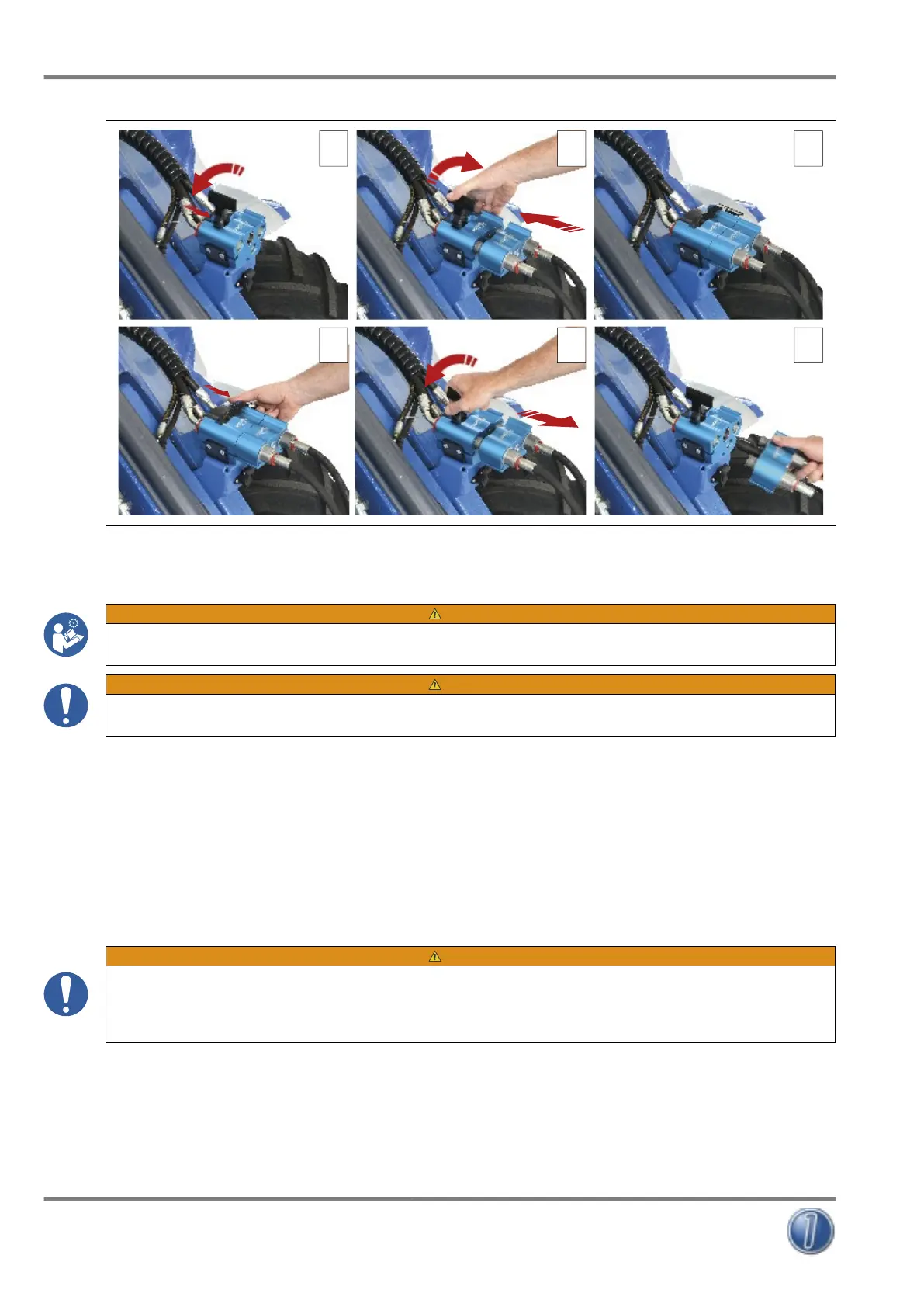

FIG. 27
A B C
D E F
8.3.4.4 Electrical connection of the attachment (if available)
WARNING
BEFORE MAKING ELECTRICAL CONNECTIONS READ THE ATTACHMENT INSTRUCTION MANUAL.
WARNING
THE CONNECTIONS MUST BE CARRIED OUT AFTER MECHANICALLY ATTACHED ATTACHMENT.
Insert the plug of attachment on the machine socket (FIG. 26 - Ref. 4).
8.3.5 Disassembly of the attachment
To disassembly the attachment proceed as follows:
1) Place the attachment on firm ground.
2) Turn off the machine (see par. 8.3.6).
3) Exhaust the residual pressure inside the hydraulic circuit (see par. 8.3.4.3).
8.3.5.1 Electrical and hydraulic disconnection
WARNING
CHECK THE ATTACHMENT INSTRUCTION MANUAL WITH REGARDS TO HYDRAULIC AND ELECTRICAL CONNECTIONS.
THE HYDRAULIC PIPES AND ELECTRICAL CABLE MUST BE DISCONNECTED BEFORE DISASSEMBLYING MECHANICALLY THE
ATTACHMENT.
1) Press the lock button (FIG. 27 - Ref. D) on the lock handle and raise the lock handle to the unlocked position (FIG. 27 - Ref. E).
2) Disconnect the attachment’s hydraulic lines from the machine (FIG. 27 - Ref. F).
3) Cover the multi-connector with the rubber cover (FIG. 26 - Ref. 1).
4) Disconnect the electrical plug (if any).
8- OPERATION
