9.8.9 Fuses
ATTENTION
IF A FUSE BLOWS, DETERMINE THE CAUSE BEFORE REPLACING IT WITH A NEW ONE.
To replace the fuses proceed as follows:
1) Remove the cover located on the right side of the machine (see FIG. 42).
2)
3) Replace the blown fuses with new ones with the same amperage rating (which is shown on the top of the blown fuse).
4) Reinstall the cover.
Standard Fuses Road Lights Fuses - optional
Ref. Function Rating Ref. Function Rating
1 Option 10A 1 Stop lights/Turn signals/Light controls 3A
2 Option 10A 2 Hazard/Battery line 10A
3 12V socket 10A 3 Hazard 7,5A
4 DBS/Joystick/Brake/Throttle 15A 4 Rotating beacom 7,5A
5 Oil cooler fan 25A 5 Ligths relais 15A
6 Work lights/Horn/OPT 15A 6 Front right and rear left parking lights 3A
7 Multi-function display/Overheating alarm 5A 7 Front left and rear right parking lights 3A
8 Fuel pump, Timers, Generator/Main engine line 10A 8 Low beam lights 5A
TAB. 23

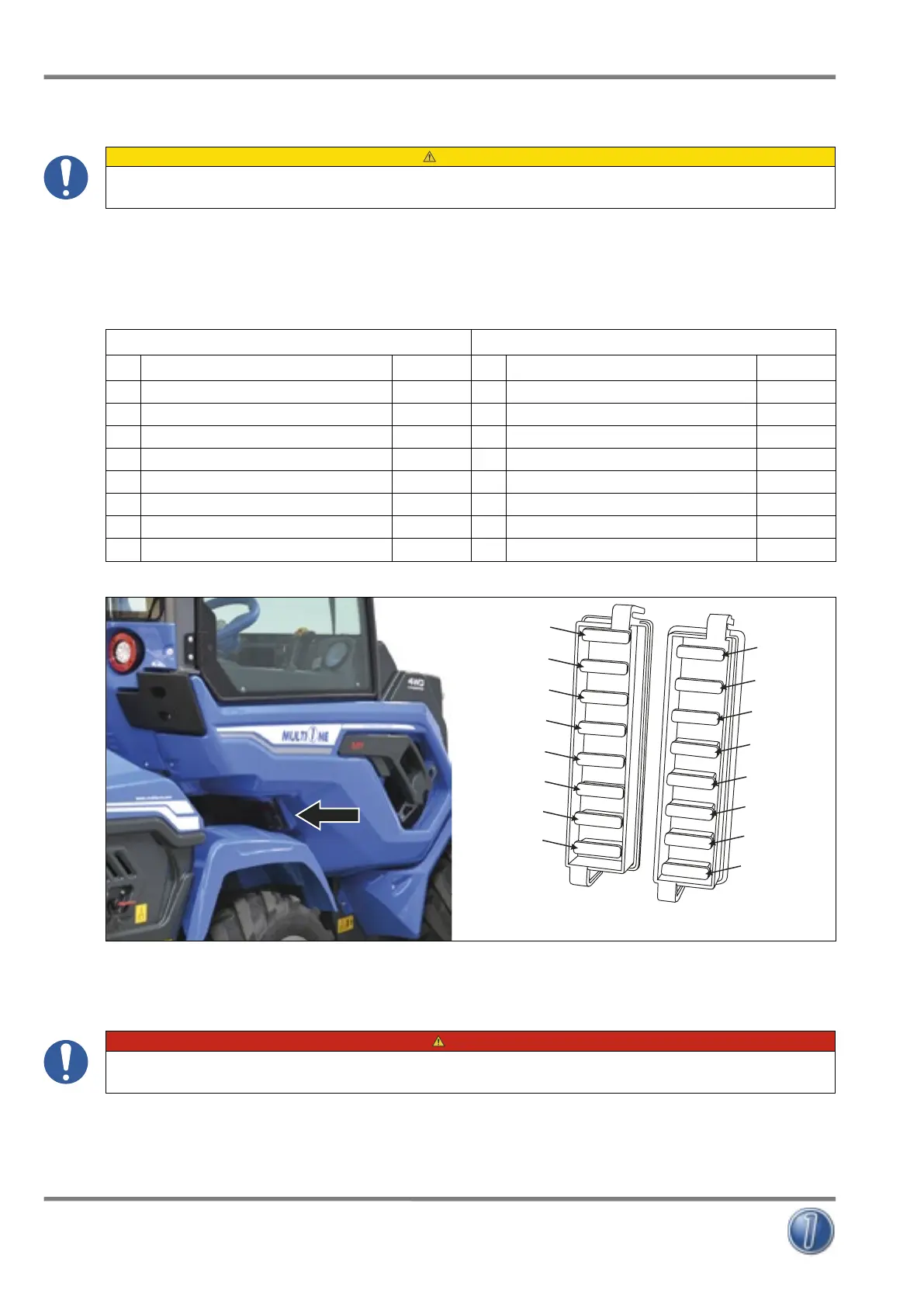

FIG. 42
15
5
15
3
3
7.5
7.5
10
3
2
3
4
5
6
7
8
1
9
10
11
12
13
14
15
16
10
10
25
15
5
10
10
STANDARD
FUSES
ROAD LIGHTS
FUSES
9.8.10 Greasing points
DANGER
IT IS MANDATORY TO INSTALL THE ARM SAFETY BLOCK WHEN PERFORMING MAINTENANCE WITH THE ARM RAISED.
The FIG. 43 shows the location of greasing points.
Clean the greasing points with a cloth and apply grease type 0088 PAKELO BEARING EP GREASE NLG I 0.
