MT CELL SETUP MANUAL MT556XNB, MT556UNB AND MT557D | 18
5 GET THE CELL INTO POSITION
Revision 3.0 www.multitaction.com
15.9.2020
P/N: MT2201012

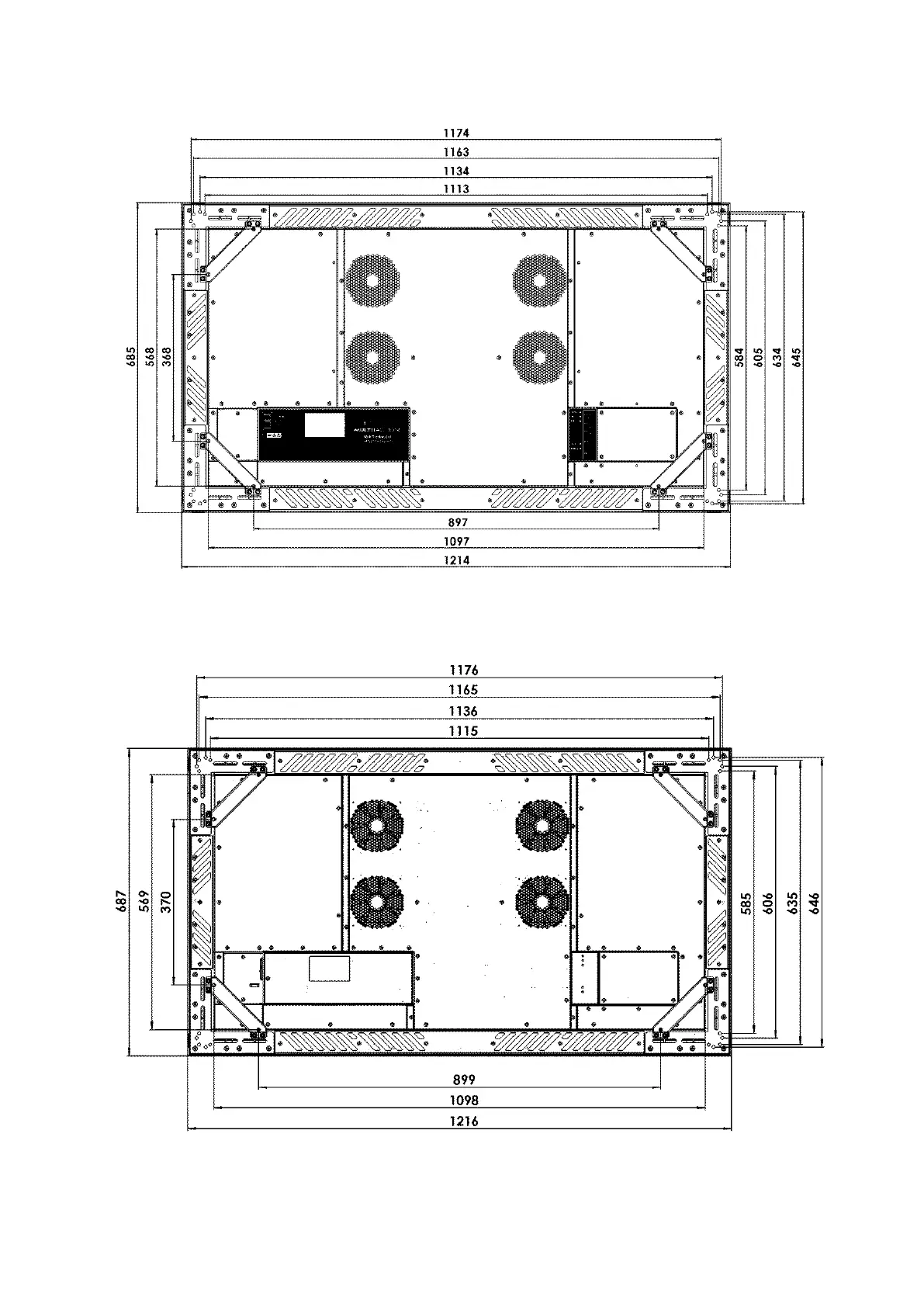

MT556XNB rear view. Screw hole locations.
MT557D and MT556UNB rear view. Screw hole locations.
