MultiTaction MT557D - Cell Overview; Cell Technologies

MT CELL SETUP MANUAL MT556XNB, MT556UNB AND MT557D | 7
2 CELL OVERVIEW
Revision 3.0 www.multitaction.com
15.9.2020
P/N: MT2201012
2 Cell overview
Note: For full technical specifications, see Appendix A.
Remarque: Pour des spécifications techniques complètes, voir Appendix A.
MultiTaction is an innovative way to build an integrated multi-touch LCD display. The front glass
and LCD package is tuned to allow the integrated optical imaging system to work effectively
through it. Imaging logic and processing power are embedded in the display unit. The diagram
below shows the main components used in MultiTaction Cells.

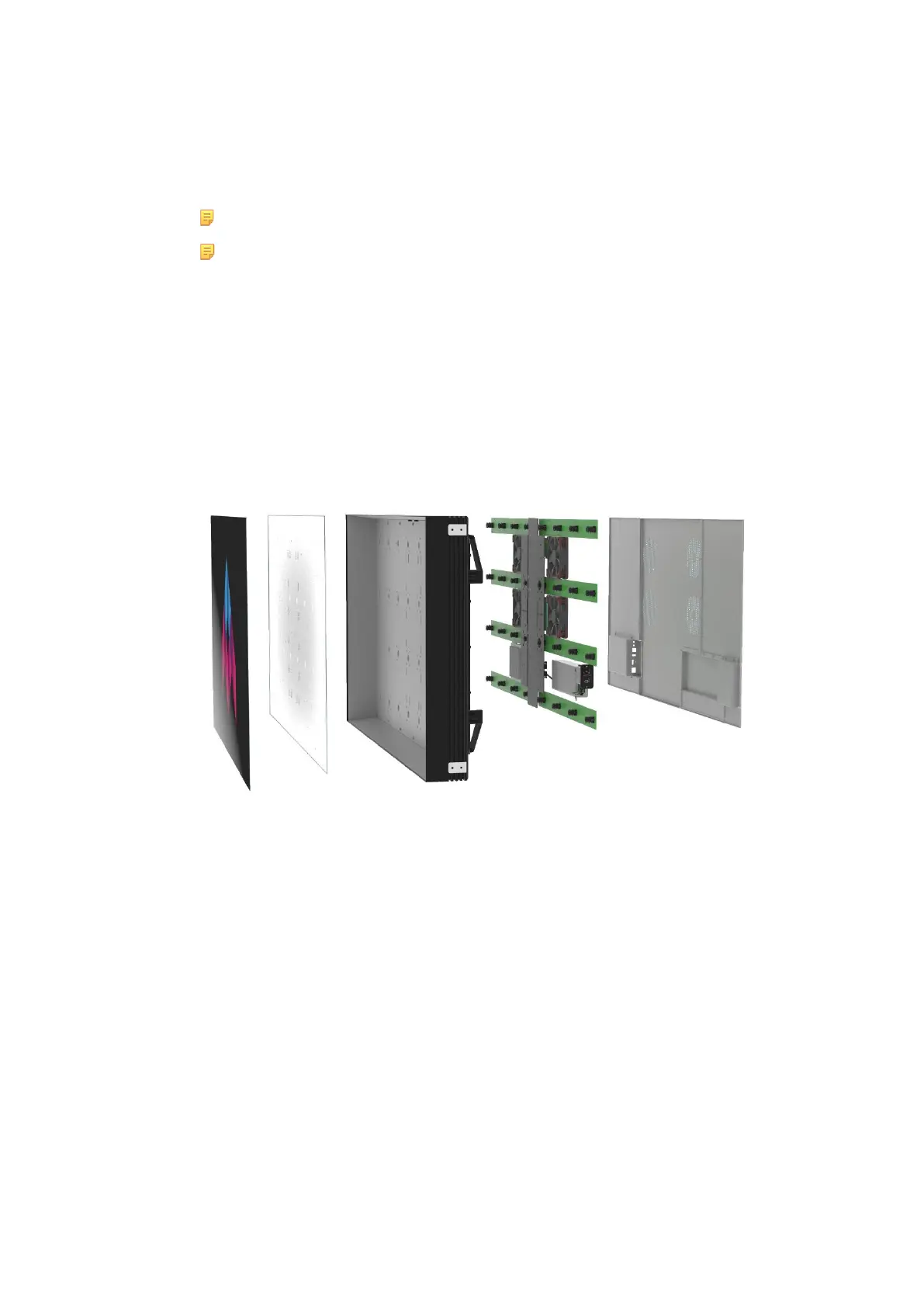

2.1 Cell technologies
Cell technologies
1 LCD panel. Uses Clearsight touch technology.
2 Backlight.
3 Aluminium frame and backlight cooling channel
4 Electronics, including:
- Extensible Hybrid Tracking Engine (EHTE) i.e., the core tracking technology
- Matrix Tracking System (MTS), comprising 32 distributed cameras
5 Back plate
1
2
3
4
5
1
3
2
4
5
MT556XNB
