Configuration/settings
User manual 55530_hdb_en_16 106 / 156
Assign the PROFINET
device name
After having clearly identified a module, you can assign a name.
The IP address is entered automatically by the PNIO controller via DCP (Dis-
covery and Configuration Protocol).

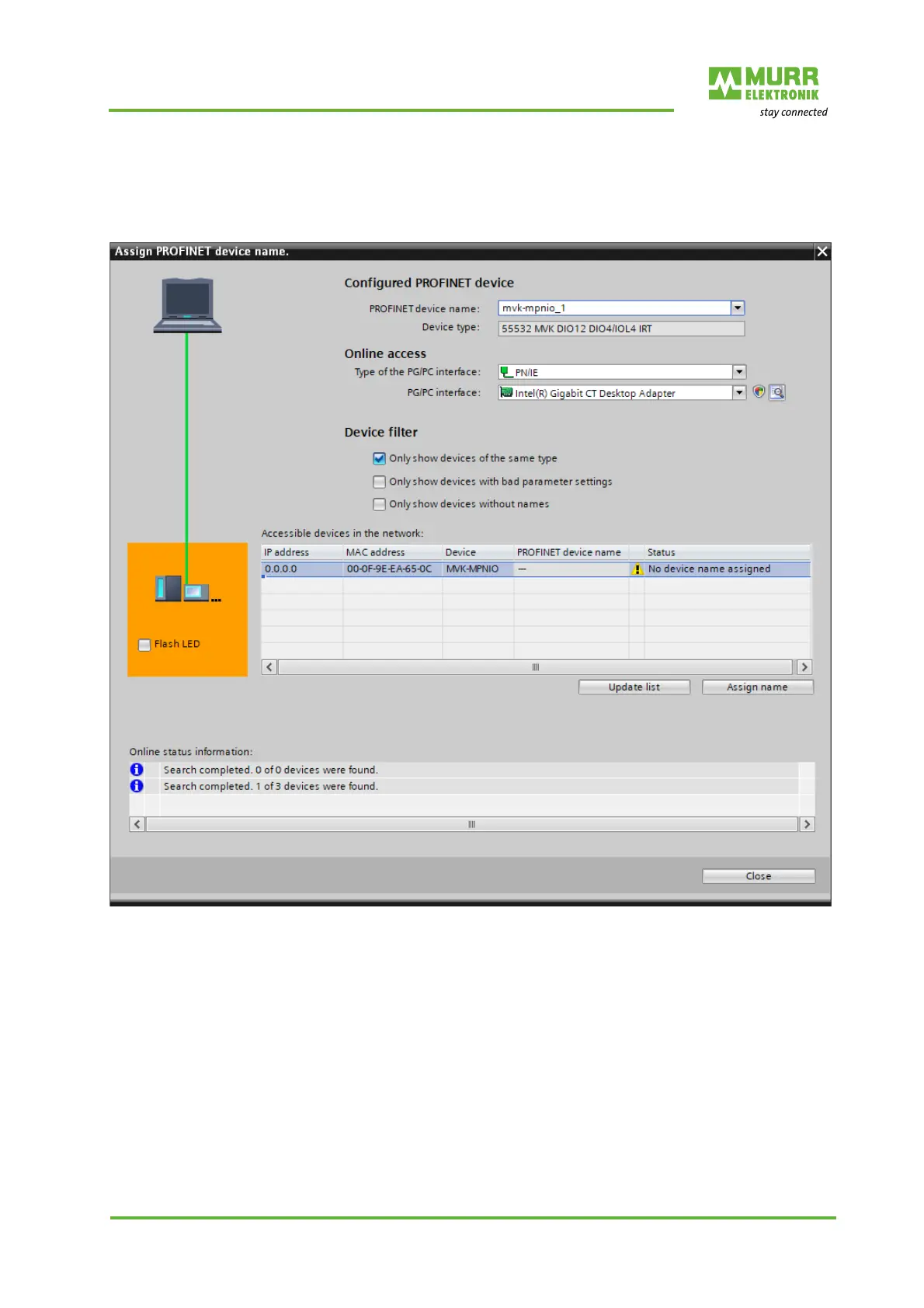

Fig. 8-33: Assign a device name
The address and name resolution is controlled only via this remanently stored
name.
Select module | Click Assign name.
