Configuration/settings
User manual 55530_hdb_en_16 90 / 156
Port mode
This parameter cannot be modified and is automatically determined when se-
lecting a certain sub-port for the IO-Link master.
Port cycle time

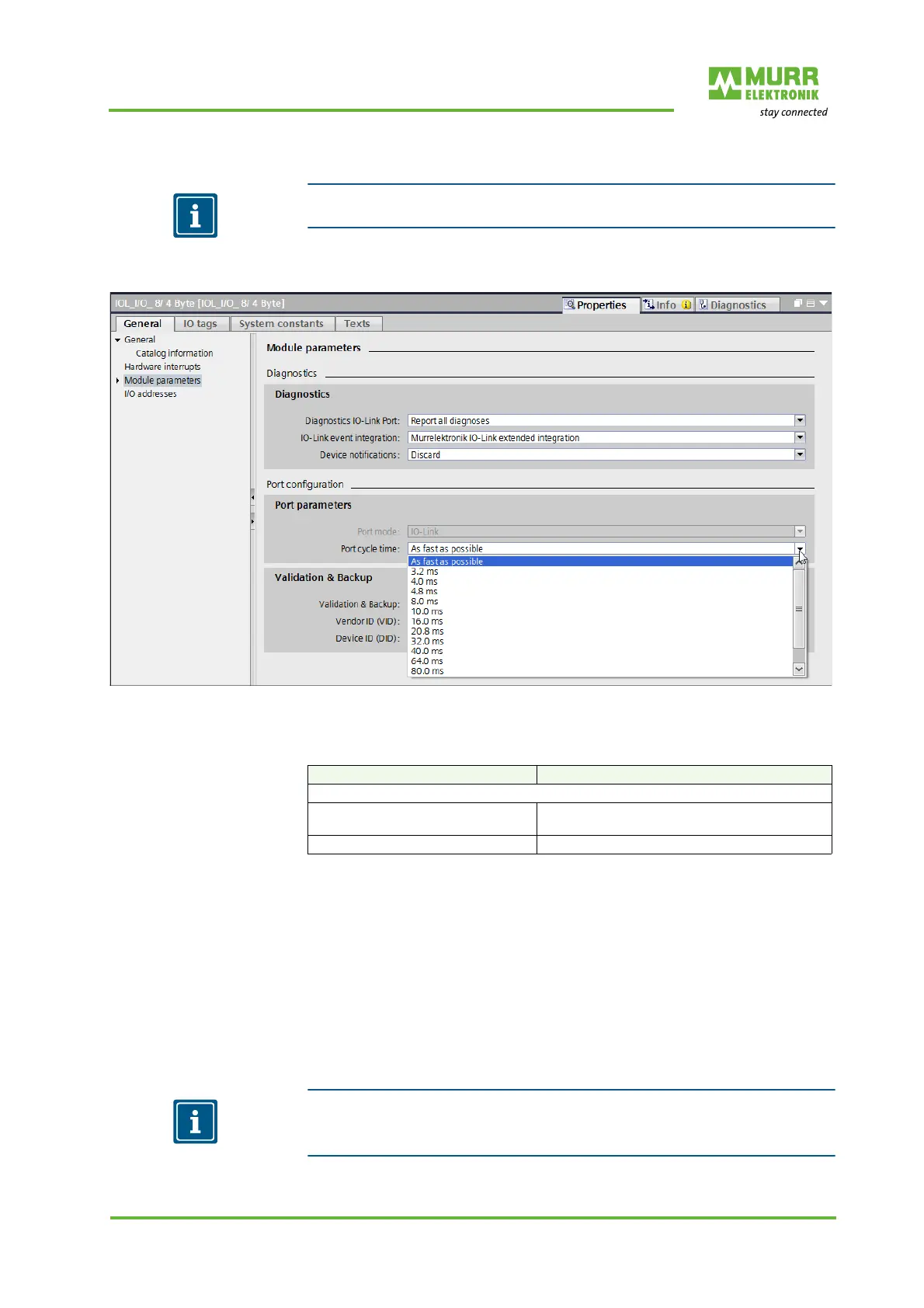

Fig. 8-26: Cycle time for communication
Cycle time for communication
Tab. 8-24: Cycle time for communication
The port cycle time defines which cycle time should be used for communica-
tion between master and IO-Link device.
For most applications, “As fast as possible” is the best choice. When estab-
lishing communication, the master and the device select the shortest possible
cycle time.
Under certain circumstances (e.g. when using inductive couplers or other de-
vices switched between the master and the IO-Link device), this mechanism
may be affected adversely.
In these cases, select a fixed cycle time (which both master and device must
support) to remedy this problem.
NOTICE
A cycle time of 10 ms is required for Art. No. 59450 Primary and Art. No. 59451
Secondary inductive couplers from Murrelektronik GmbH.
Selection Meaning
D = Default
As fast as possible D The Master and the IO-Link device automatical-
ly determine the shortest cycle time.
3.2 … 128.0 ms Setting cycle time to this value.
