1. Heater Body 2. Max. Fuel Level
3. Min. Fuel Level 4. Fuel Pump

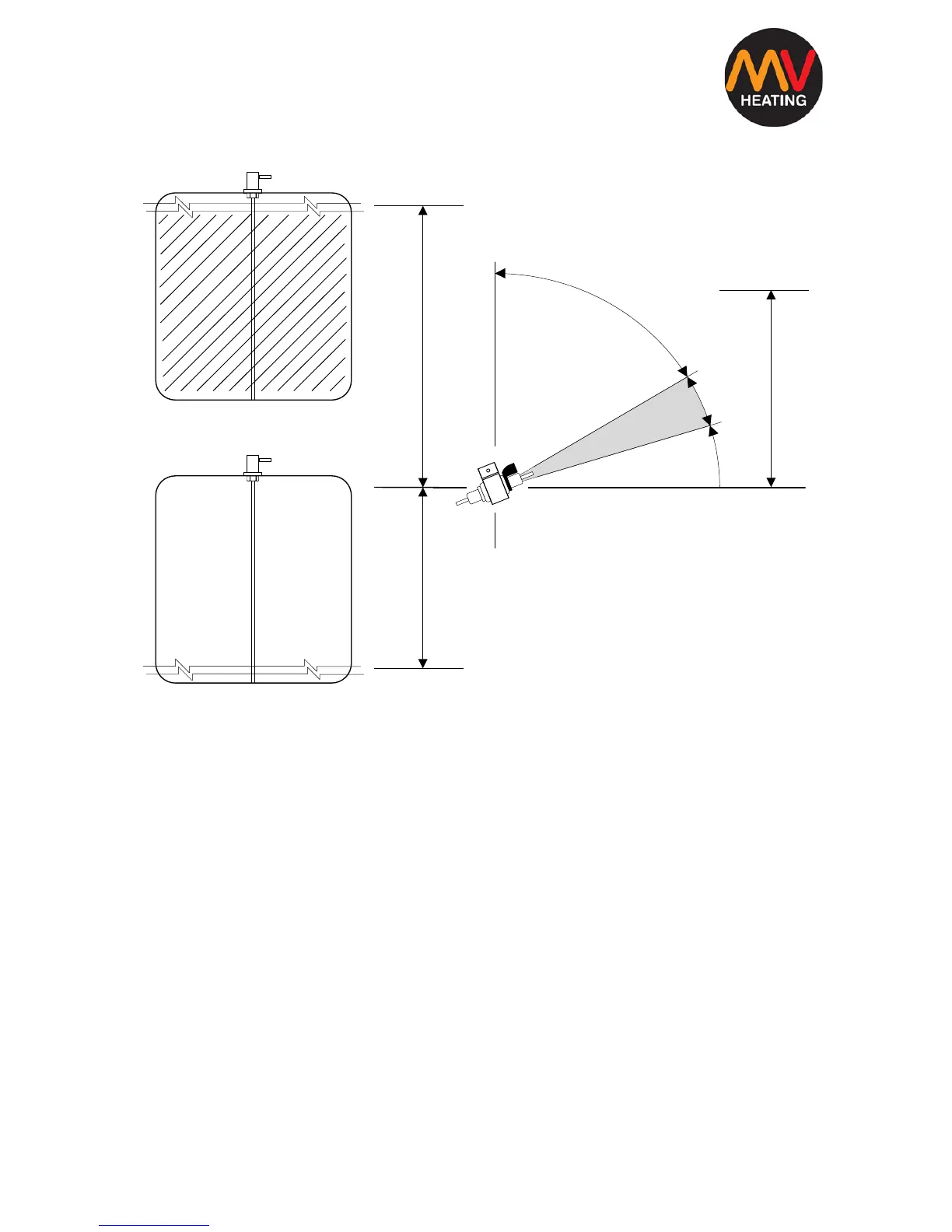

Fuel Pump Angle & Suction Height
A. 3000mm B. 500mm
C. 2000m D. Not acceptable
E. Acceptable (between 15-90°) F. Not acceptable
Figure XVII
Figure XVII shows the ideal way to mount the fuel pump
The fuel pump’s outlet should tilt upward at an angle between 15˚-35˚ (as
shown above).
