Fuel Lines

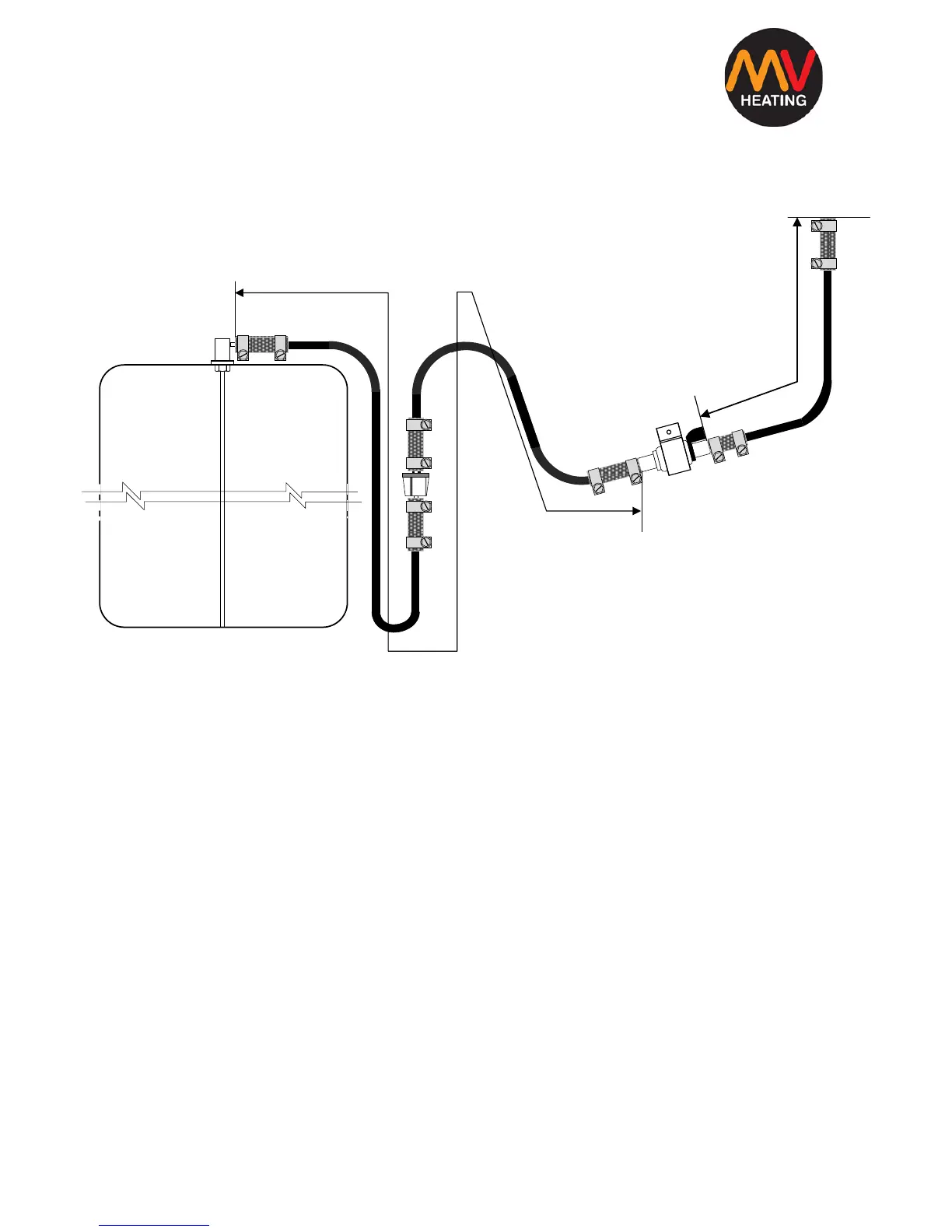

Figure XVI
1. Fuel Tank 2. Fuel Standpipe 3. Fuel line Hose Clamp
4. Fuel Line 5. Rubber Fuel connector 6. Fuel Filter
7. Fuel Pump 8. To Heater
Always fit the fuel pump on the anti-vibration mount securely onto the
vehicle. Ensure the outlet of the fuel pump tilts upward. The correct angle is
shown in Figure XVII.
Where possible the fuel line is ideally placed uphill to the fuel pump to ensure
ideal bleeding of the fuel line.
2
3 4
5
6
7
8
1
2000-6800mm
500-1200mm
