Fuel Standpipe
A fuel standpipe (or suction pipe) will need to be installed in the vehicle’s fuel
tank or an independent fuel tank depending on what the installation calls for.
Sealant is not required to fit the standpipes.
Depending on the standpipe provide in the kit you will need to install the
standpipe in one of two ways.

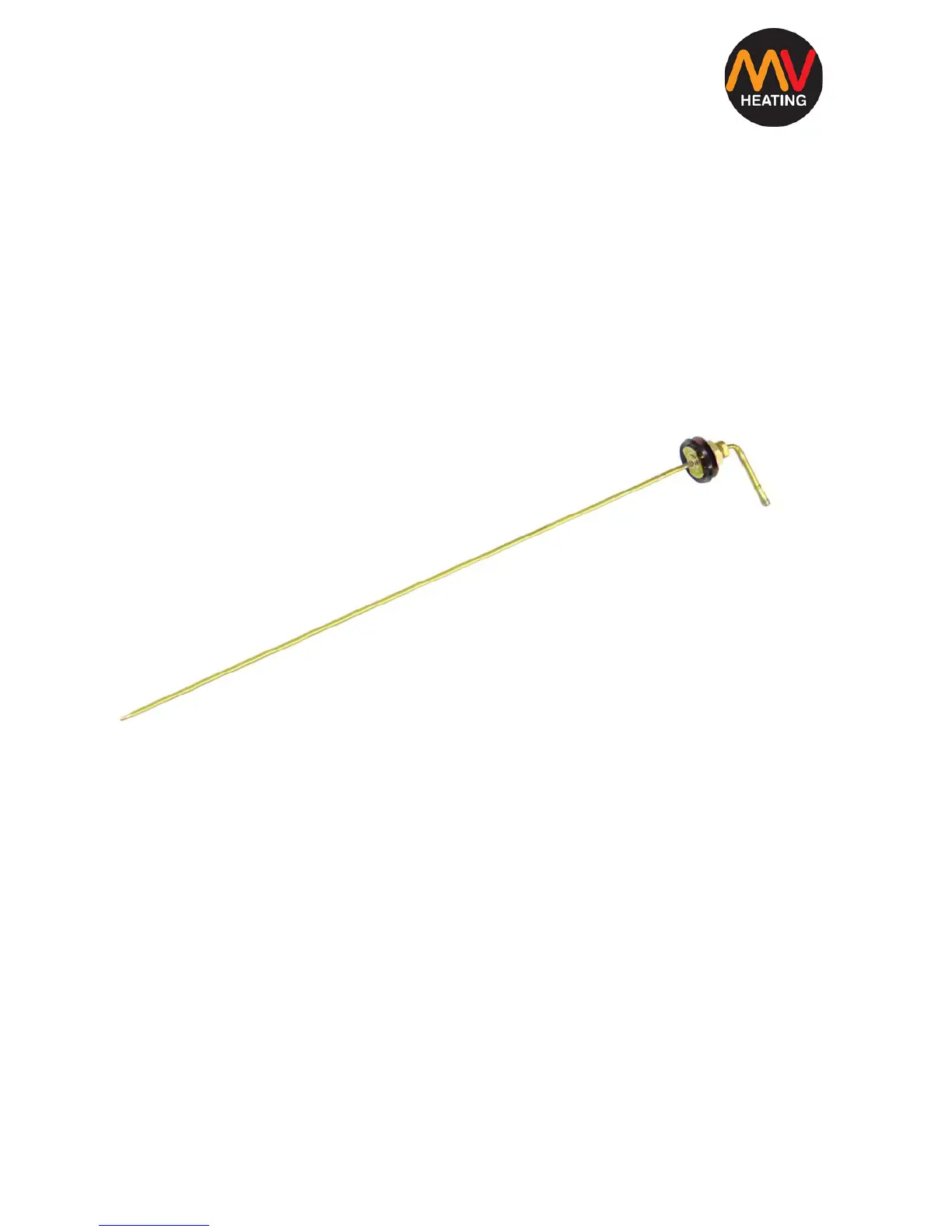

Standpipe 1: (Part No: AHZ-034) Figure XIX
Usually supplied in Marine kits and supplied bent, this standpipe is installed
like so:
• Drill a hole in the top of the vehicle’s fuel tank Φ22 ± 0.2mm in size.
Ensure it is smooth and clean of burrs
• Remove the top nut and washers and bend the standpipe straight
• Cut the standpipe down to size if necessary
• Fit the standpipe by tilting it into position into the newly drilled hole
• Place the rubber and metal washers back on top followed by the nut
and tighten it securely on top
