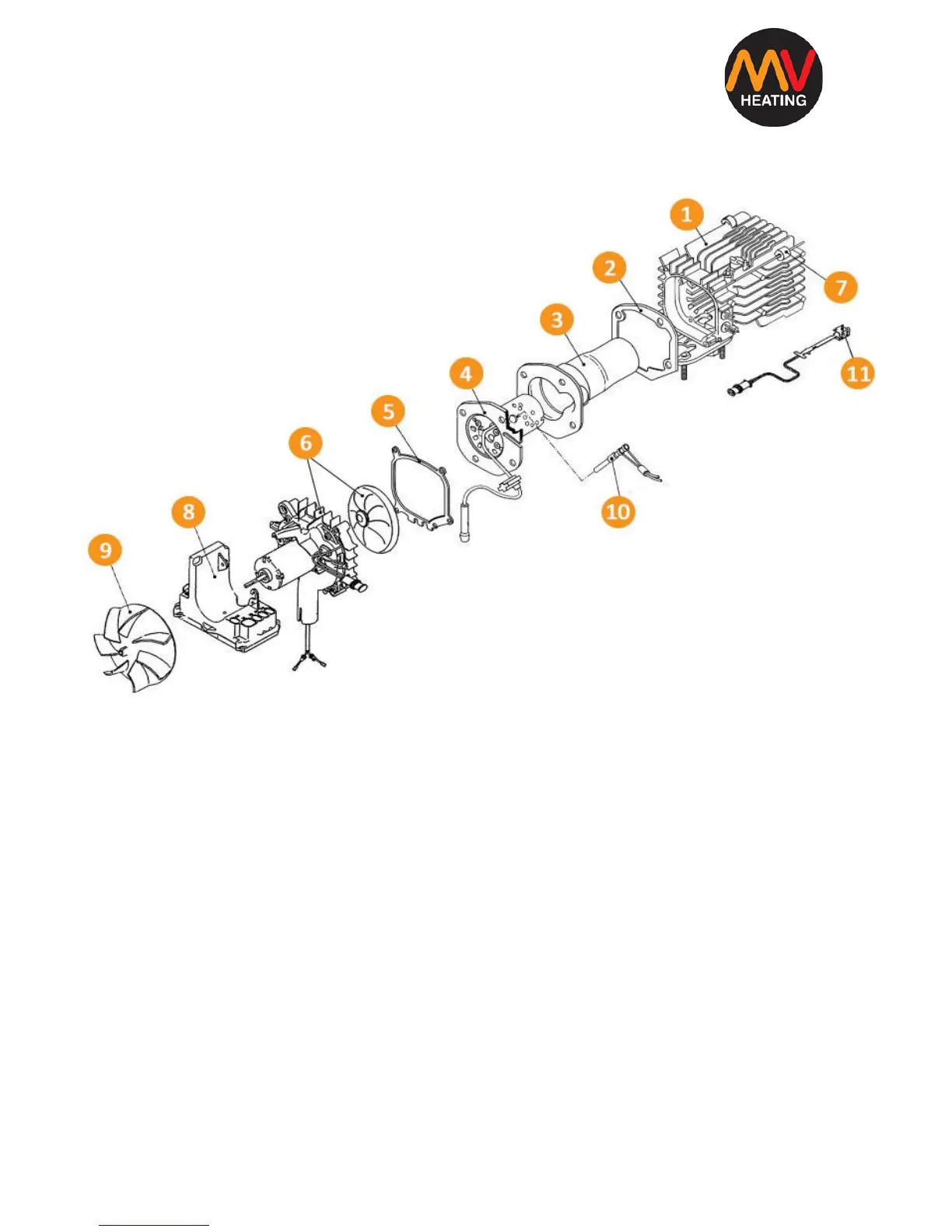

MV Airo 2 Internal Structure
Figure II
1. Heat exchanger 2. Gasket 1 (4 hole)
3. Combustion chamber 4. Burner Assembly
5. Gasket 2 (5 hole) 6. Air Motor Assembly
7. Insulating bush 8. ECU
9. Air Fan Wheel 10. Glow Pin
11. Overheat Sensor
