+44 (0)23 8052 2345
9
MV Heating UK Ltd

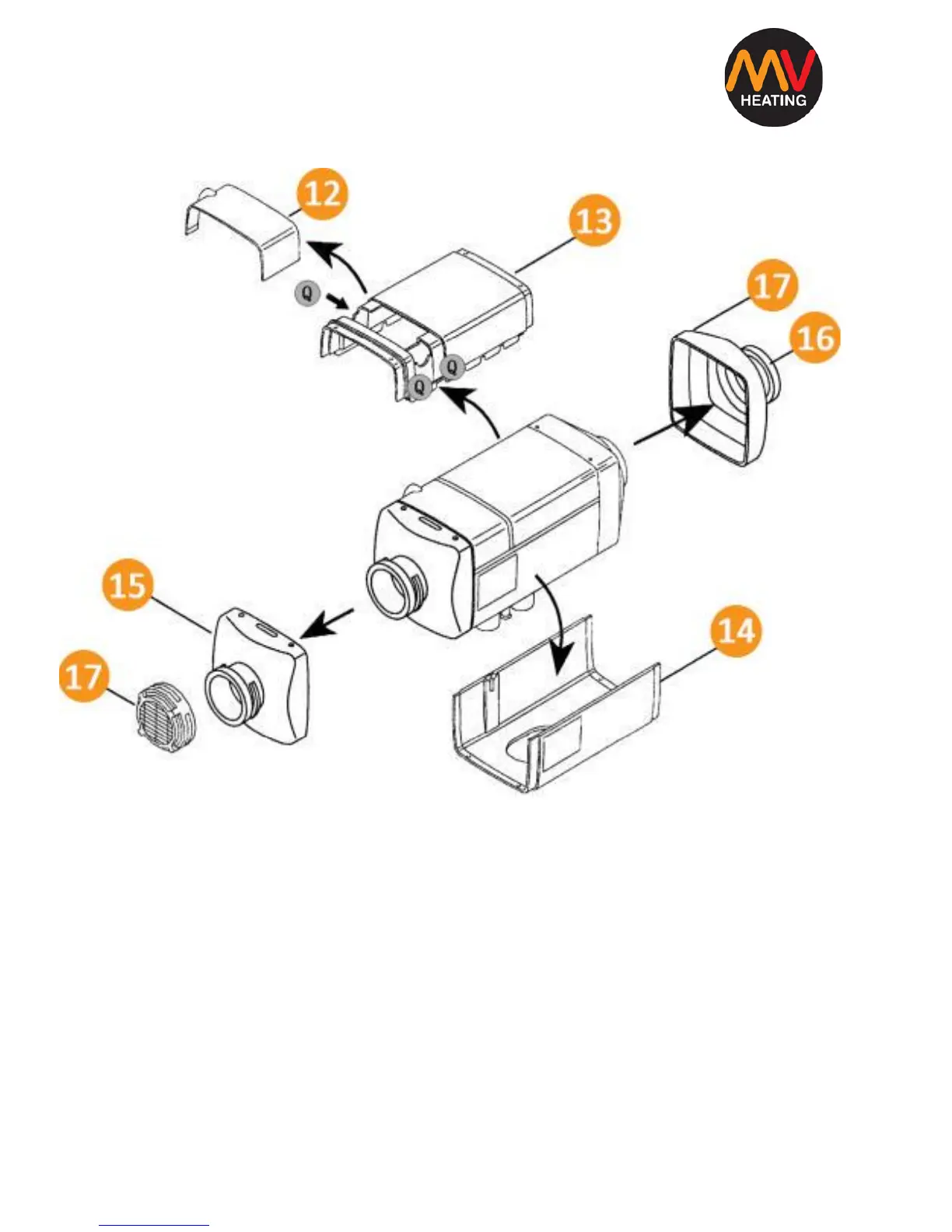

Case Assembly
Figure IV
12. Junction box cover 13. Top Case
14. Hot air outlet 15. Inlet Cover
16. Outlet Cover 17. Grill
