MyBinding Plockmatic BM 200 - SquareFolder Operation Guide; SquareFolder External Components

11
Trimmer, continues
5
1
2
3
4
6
7
8
9

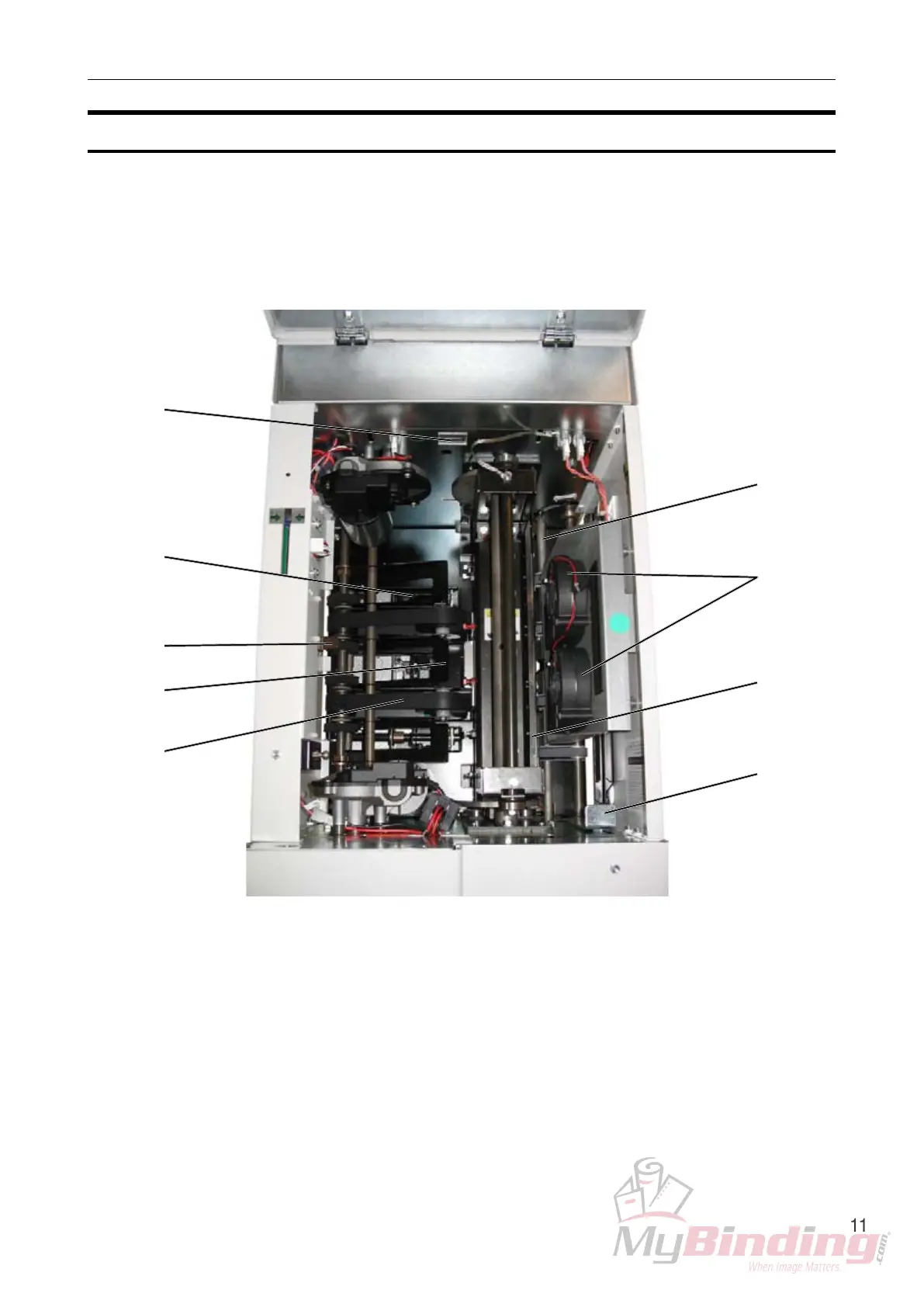

The Trimmer interior has parts that you will come in contact with if a misfeed occurs.
1 Set counter
2 Trimmer stop
3 Outfeed latch
4
Exit compressing brackets
5 Transport belt
6 Infeed roller shaft
7 Trimmer fan
8 Upper knife
9 Infeed latch
Trimmer, top view
