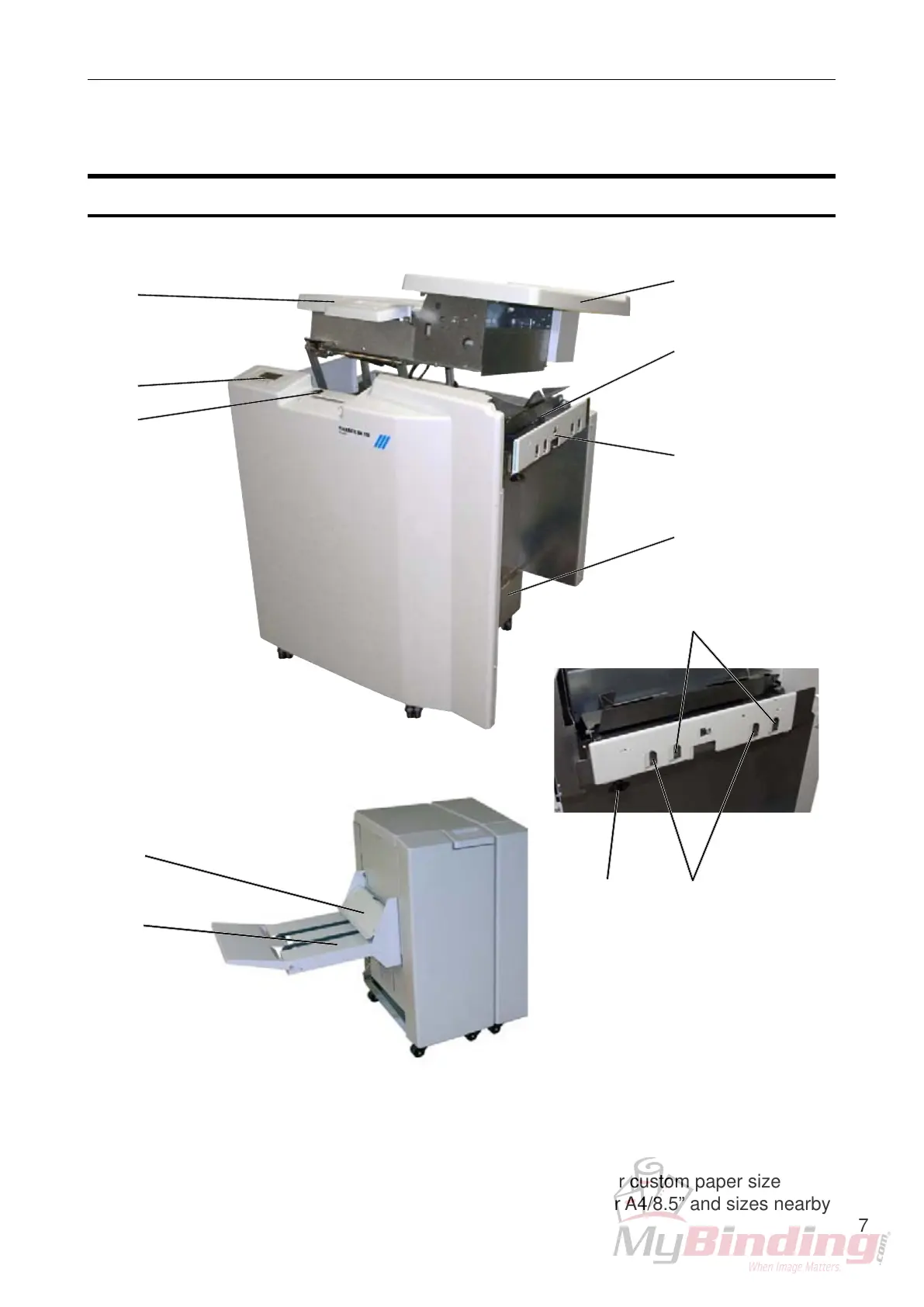

Guide To Components
2
3
7
1
1 Top cover
2 Control panel
3 Main power switch
4 Upper
Top cover
5 Infeed assembly
6 Docking assembly
5
Booklet Maker
7 Base
8 Positioning holes for A3/11” and sizes nearby
9 Belt Stacker Cover
10 Belt Stacker
11 Knob, adjustment for custom paper size
12 Positioning holes for A4/8.5” and sizes nearby
6
9
10
4
8
1211
