Emptying the trim bin

Remove the trim bin by lifting it and pulling it out.

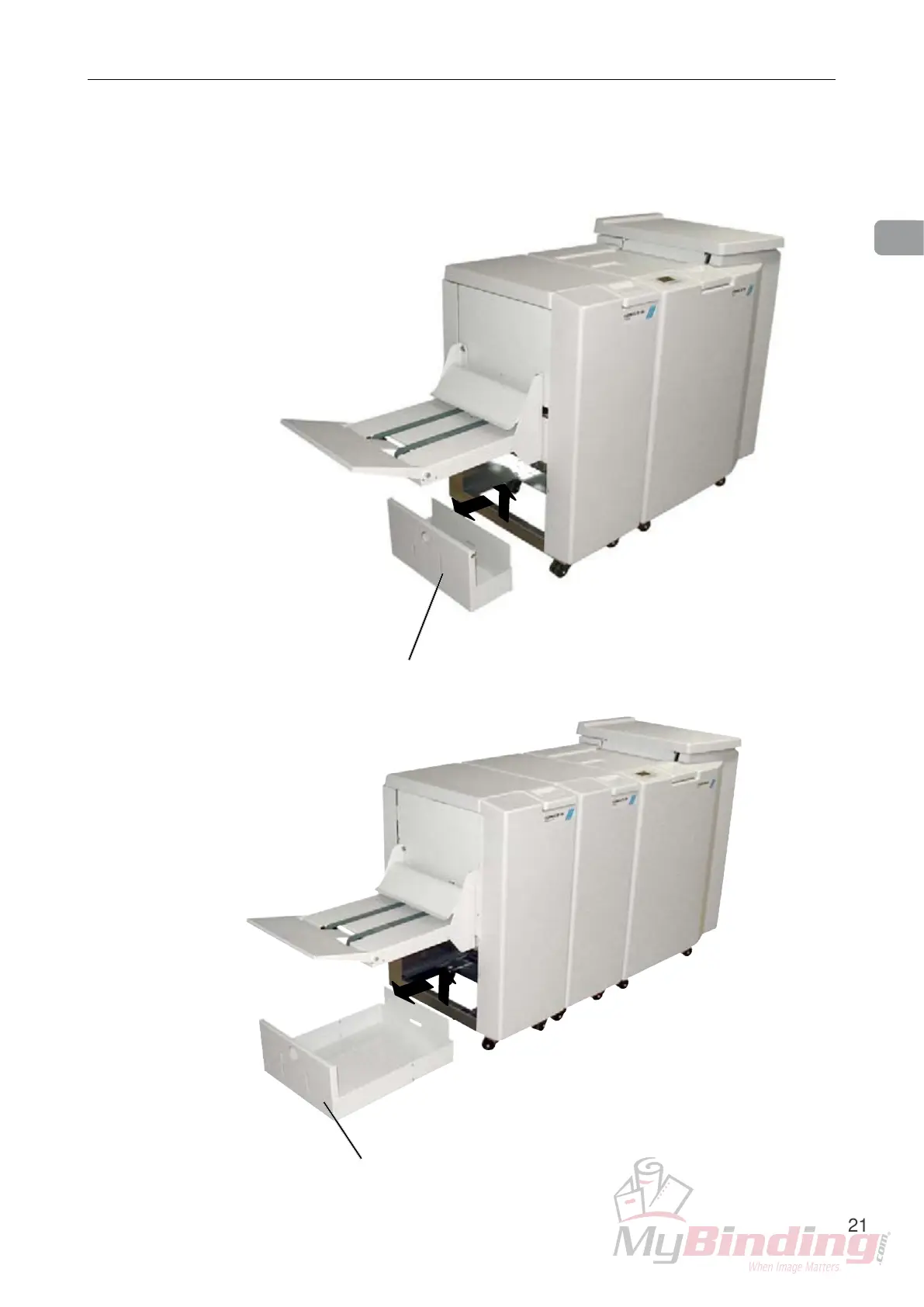

trim bin, no SquareFolder installed

trim bin, with SquareFolder installed

Emptying the trim bin
