Rev. 9-24-14 Part #15-10683
www.NabcoEntrances.com GT 710-8710 Swing Door System Low Energy Operator
Install the Magnets 7-23
5.2 Insert The Latch Check Magnet
Obtain (1) 1/4 inch square x 1 inch long Magnet. Please see .
Manually Close the Swing door to the Fully Closed position (0 degrees).
Place the Magnet (White side up) directly underneath the Door Closed Magnetic Switch.
DN 1130
DN 0062
DN 0063
DN 0064
DN 0065
LEFT HAND
OUTSWING
RIGHT HAND
OUTSWING
Door Closed
Magne c Switch
Door Closed
Magne c Switch
DOOR CLOSED
DOOR CLOSED
RIGHT HAND
INSWING
DOOR CLOSED
ALL MAGNETS MUST BE INSTALLED WHITE SIDE UP
Door Closed
Magne c Switch
LEFT HAND
INSWING
DOOR CLOSED
With Swing Door in the
Fully Closed Posi on:
Place Magnet
directly under the
Door Closed Magne c Switch

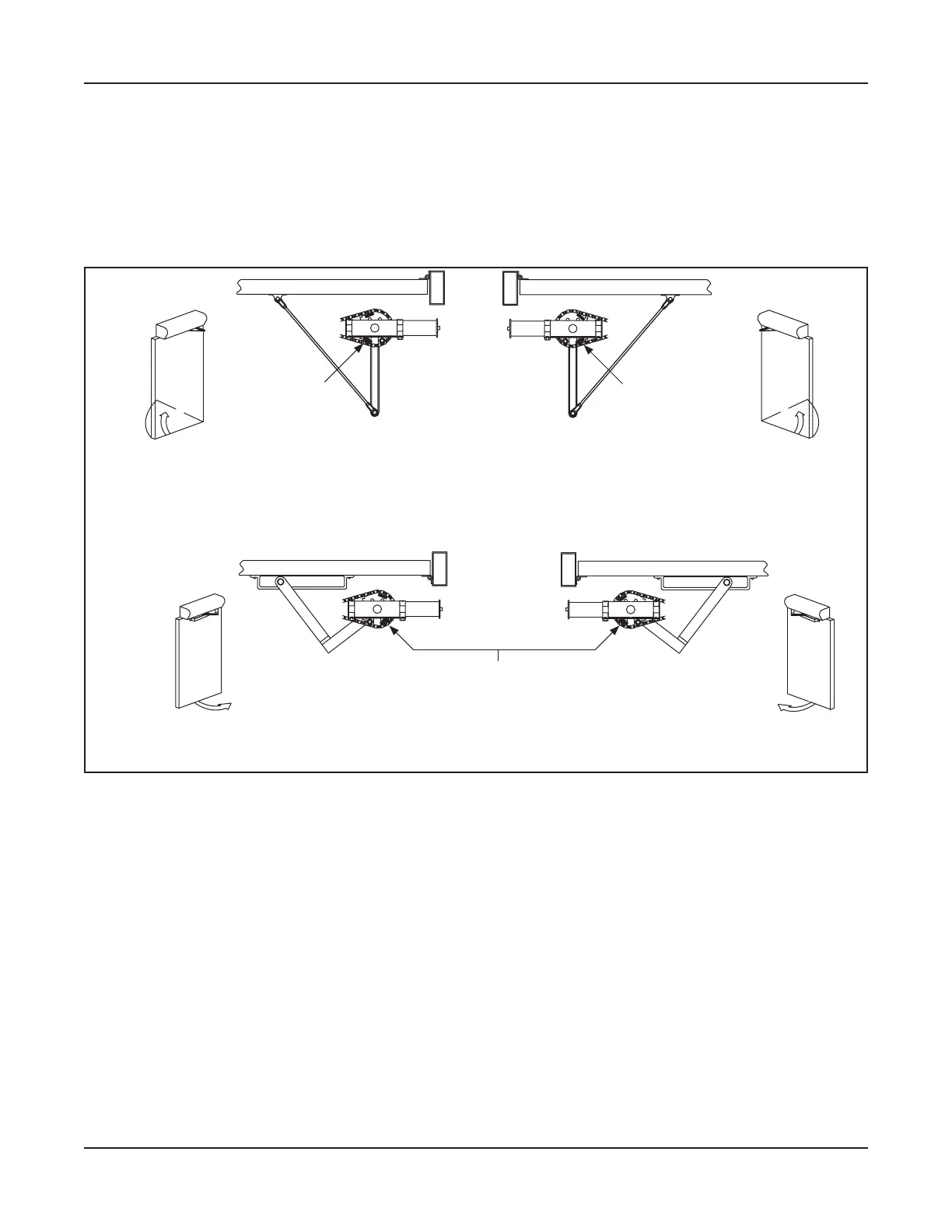

Figure 7-3 Install the Latch Check Magnet
5.2.2 Test the Latch Check Magnet
When the Magnet is correctly set, the Green LED on the Magnum 4A Control will be:
X OFF when the Swing door is in the fully Closed position.
Turn Power ON.
Electronically close the Swing door.
a. As the Swing door closes to the 15 degree mark, the Door Closed Magnet starts to rotate
underneath the “Door Closed” Magnetic Reed Switch. The Swing door will start to slow down.
b. At the 0 degree mark, the Latch Check Magnet is fully underneath the Door Closed Magnetic
Switch.
Relocate the Magnet if adjustment is deemed necessary.
