Nakanishi E4000 CONTROLLER - Page 45

92

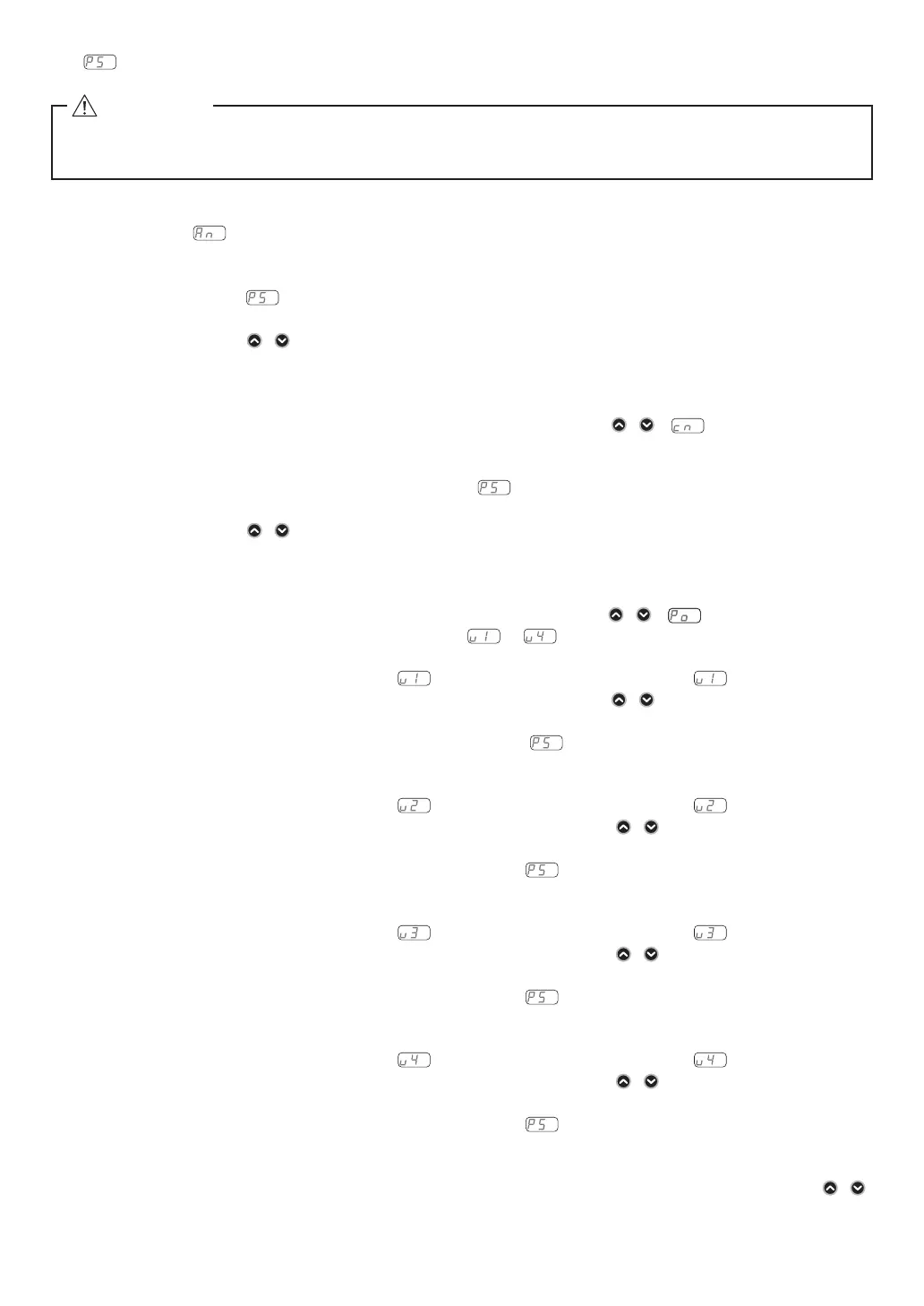

⑤ Selection of External Speed Control Mode
Procedure
1. Push the Start / Stop Button (START / STOP).
2.
is displayed.
2 - 1 If wish to set rotation speed via an Analog Signal (Motor Speed Control Voltage).
(1) Push the Error Reset button (RESET) to write the setting into memory.
(2)
will be displayed.
(3) If you desire to set other parameters, press the Motor Speed Adjustment Button (SPEED
, ) to select the parameter that needs to be set.
(4) When you are ¿nished setting parameters, press the Error Reset Button (RESET), then
turn the Main Power Switch is OFF.
2 - 2 To set rotation speed using a Pulse Signal.
(1)
Push the Motor Speed Adjustment Button (SPEED
, ). displayed on Digital
Speed Indicator.
(2) Push the Error Reset Button (RESET).
(3) To send the settings to memory,
will be displayed.
(4) If you desire to set other parameters, press the Motor Speed Adjustment Button (SPEED
, ) to select the parameter that needs to be set.
(5) When you are ¿nished setting parameters, press the Error Reset Button (RESET), then
turn the Main Power Switch is OFF.
2 - 3 To set rotation speed using the Speed Point Signal.
(1)
Push the Motor Speed Adjustment Button ( SPEED , ). displayed on Digital
Speed Indicator. This indicates
to the 4 Speed points can be set.
(2) Push the Start / Stop Button (START / STOP).
(3)
Alternately displayed and setting speed. The Speed Point can be set.
Push the Motor Speed Adjustment Button (SPEED , ) to set the motor rotation
speed.
Push the Error Reset Button (RESET).
is displayed.
If you are continuously setting these parameters, push the Start / Stop Button (START /
STOP).
(4)
Alternately displayed and setting speed. The Speed Point can be set.
Press the Motor Speed Adjustment Button (SPEED , ) to set the motor rotation
speed.
Push the Error Reset Button (RESET).
is displayed.
If you are continuously setting these parameters, push the Start / Stop Button (START /
STOP).
(5)
Alternately displayed and setting speed. The Speed Point can be set.
Press the Motor Speed Adjustment Button (SPEED , ) to set the motor rotation
speed.
Push the Error Reset Button (RESET).
is displayed.
If you are continuously setting these parameters, push the Start / Stop Button (START /
STOP).
(6)
Alternately displayed and setting speed. The Speed Point can be set.
Press the Motor Speed Adjustment Button (SPEED , ) to set the motor rotation
speed.
Push the Error Reset Button (RESET).
is displayed.
If you are continuously setting these parameters, push the Start / Stop Button (START /
STOP).
3.
If you desire to set other parameters, press the Motor Speed Adjustment Button (SPEED , )
to select the parameter that needs to be set.
4. When you are ¿nished setting parameters, press the Error Reset Button (RESET), then turn the
Main Power Switch OFF.
CAUTION
Actual motor rotation speed of the motor will be limited, based on maximum motor rotation speed
and the type of motor connected.
