Page 38
5-2 Fitting the Seat Base Assemblies.
1. Place the Seatbase assembly close to the Monitor Cabinet and connect the
connector.
2. Place the Seatbase assembly between the Seat Brackets, taking care not to trap
any wires.
3. Fit 6off (3 each side) socket button head screws (M8x16), with flat and spring
washers.
4. Repeat for each Seatbase assembly.

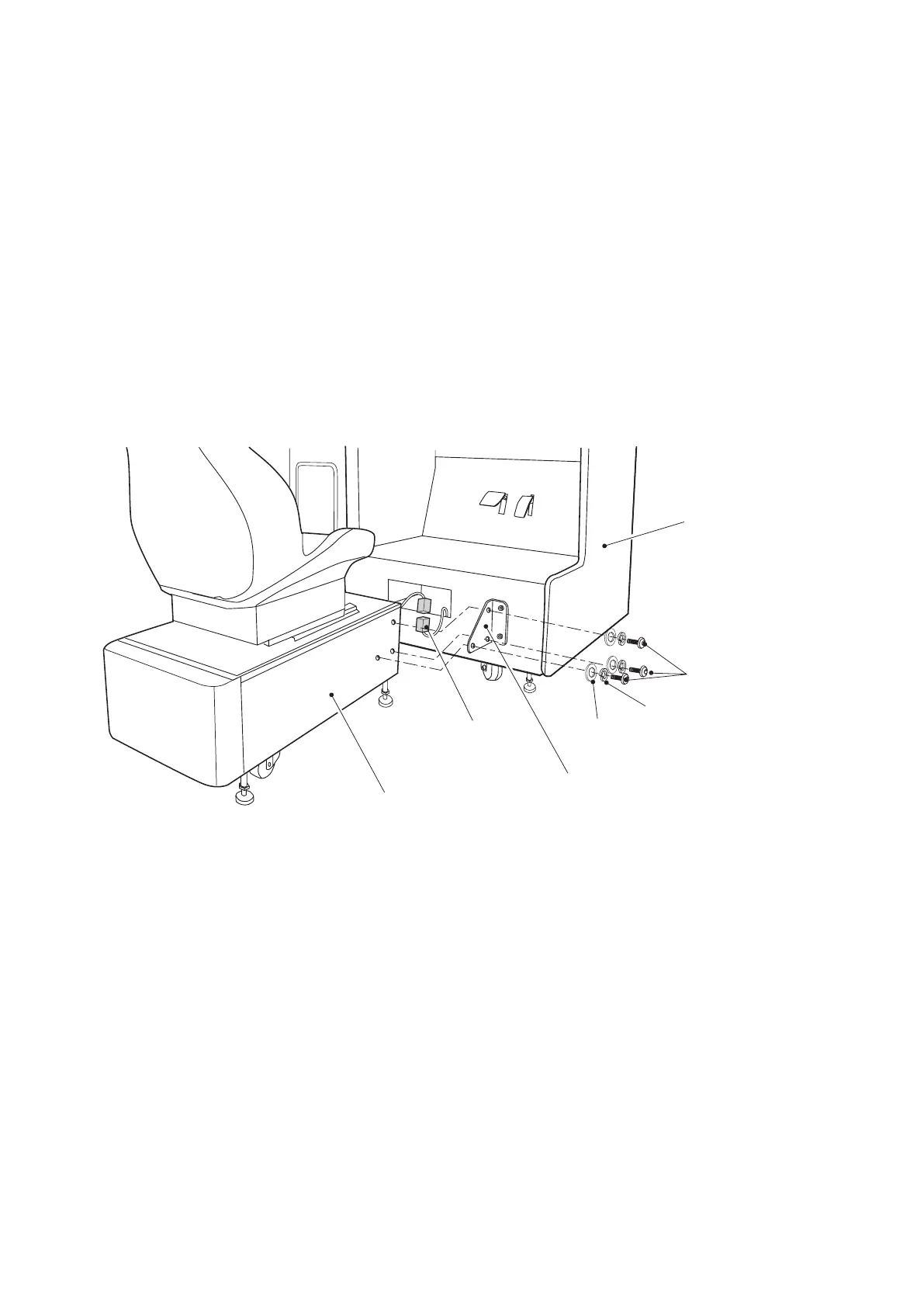

Monitor Cabinet
Seat Bracket
Connector
Seatbase Assy
Socket head screws
(M8x16)
Spring Washer
Flat Washer
