7-4 Replacing the Pushbutton Switches

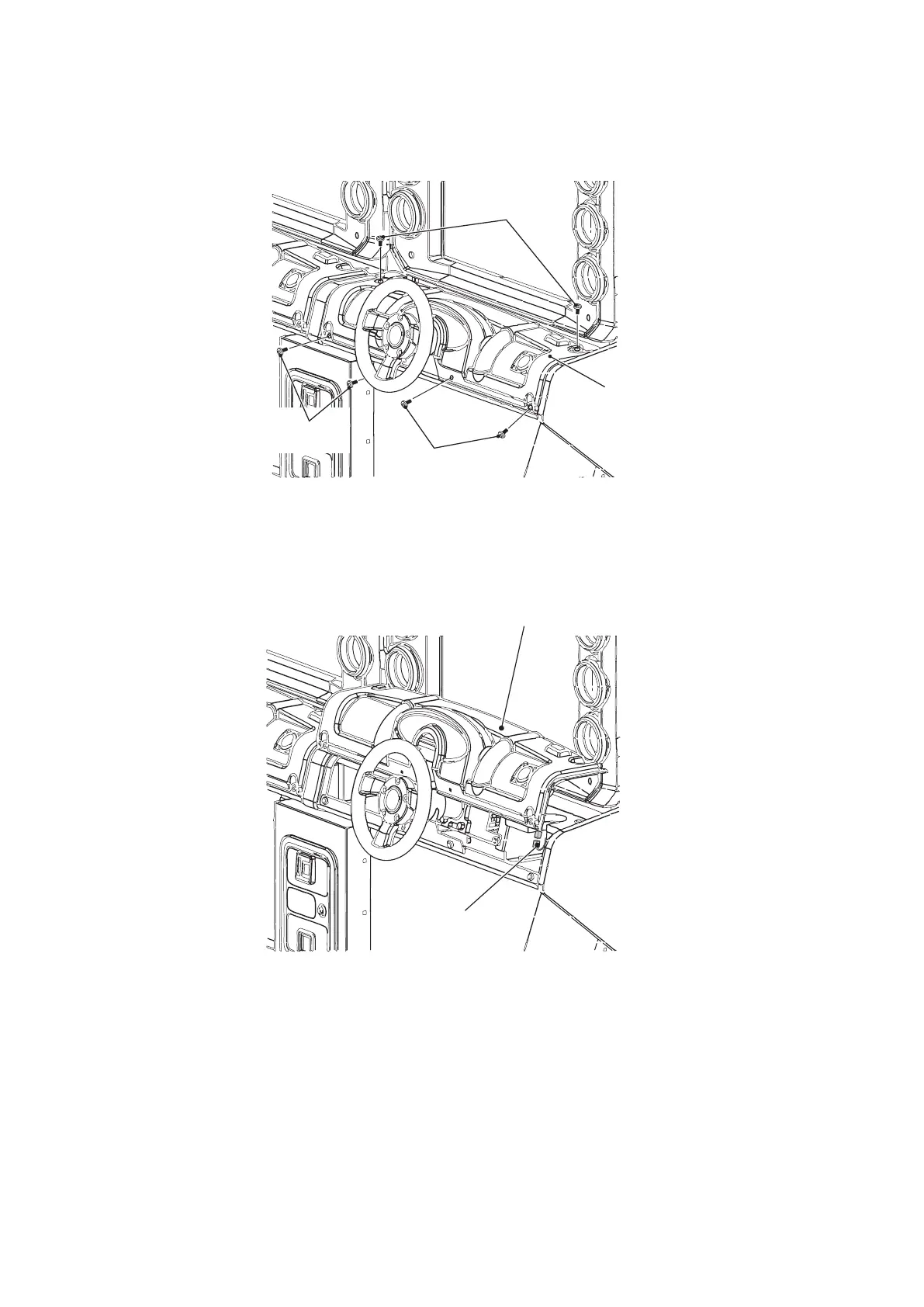

1. Remove 6off security screw (M5x12) to release the Play Panel Vac-Form.

2. Raise the Play Panel Vac-Form only sufficient to disconnect the connector.

3. Remove the Play Panel Vac-Form

Play Panel Vac-Form

Security screw

(M5x12)

Security screw

(M5x12)

Security screw

(M5x12)

Connector

Play Panel Vac-Form
