Page 88
Item
Desc
ri
pti
on
P
ar
t No
Steering Assy - Com
plete
88800132
1
Steering Wheel
8
15
00359
2
Steer
ing Boss - Special
81500358
3
Steer
ing Motor
88800040MK
4
P
otentiometer
X008-022
5
Steer
ing Belt
81500376
6
Steer
ing Wheel Button Assy
88800143
7
Pulley
C-40-025048-Plastic
81500375
8
Pulley C-GA-TX03600-Metal
81500377

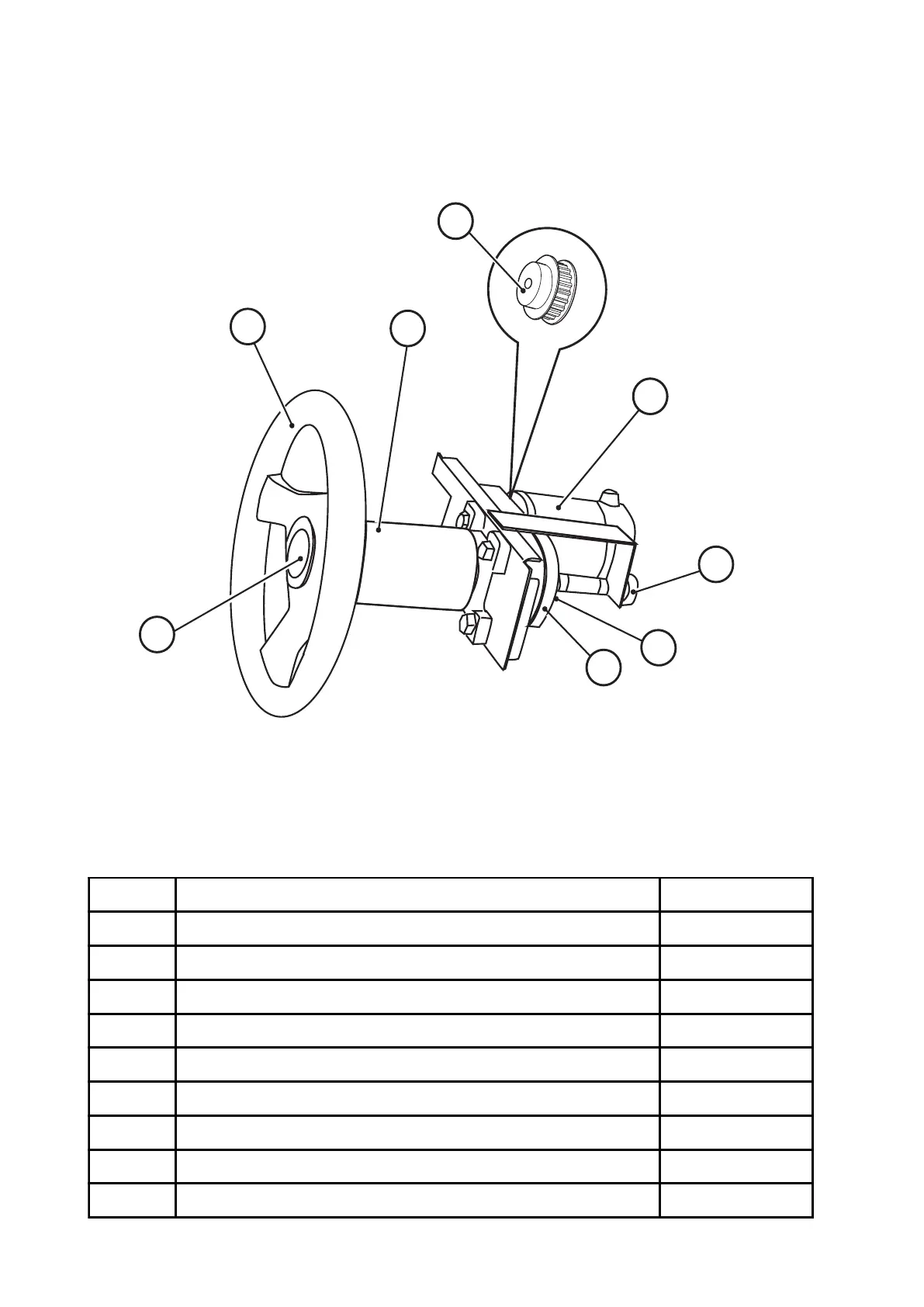

8-4
Steering Assembly
1
6
4
5
8
2
3
7
87
89
Table of Contents
Default Chapter
1
Operators Manual
1
Table of Contents
2
General Safety Considerations
4
Allgemeine Sicherheitshinweise
6
Generelle Sikkerhedsovervejelser
8
Consideraciones Generales de Seguridad
10
Consignes Generales de Securite
12
Εξεταση Γενικησ Ασφαλειασ
14
Considerazioni Generali Sulla Sicurezza
16
Vanlige Sikkerhetstiltak
18
Algemene Veiligheidsoverwegingen
20
Avisos de Perigo
22
Allmänna Säkerhetsbeaktanden
24
Yleiset Turvallisuunäkökodat
26
1 Specifications
28
2 Main Components
29
3 How to Play
30
4 Moving the Machine
33
5 Installation
33
Removing the Header Assy
37
Fitting the Seat Base Assemblies
38
Linking Two Cabinets
39
Game Initialization
40
Adjusting the Level Adjuster
41
6 Adjustments
42
Adjustment Switches
43
Test Mode
44
Coin Assignment
45
Clock Setting
47
Network Setting
47
Game Test Menu
48
Game Options
49
(A) GO to [I/F] INITIALIZE
50
I/O Test
50
(B) Switch Test
51
(C) Lamp Test
52
(D) Camera Check
53
Namcam2 Camera Adjustment Method
54
Monitor Test
55
Sound Setting
56
Setting the Business Closing Time (CLOSE SETTING)
57
Book Keeping
58
Others
59
7 Maintenance
60
Self Test
62
Error Displays
63
Errors Related to the Steering Assy
63
Errors Related to the Camera Assy
64
Errors Related to Communications
64
Replacing the Fluorescent Tube
65
Replacing the Pushbutton Switches
66
Replacing the Camera Assy
68
Replacing the Steering PC Board Fuse
70
Removing the Steering PC Board
71
Removing the Steering Assy
72
Replacing the Steering Potentiometer
73
Replacing the Steering Motor or Drive Belt
74
Removing the Steering Wheel
75
Removing the Pedal Assy
76
Replacing the Pedal Potentiometer
77
Removing the Monitor
78
Removing the FCA PC Board
81
Removing the TRIFORCE PC Board
82
Removing the Sound PC Boards
83
8 Parts
84
Monitor Cabinet
84
Seat Base Assembly
86
Header Assembly
87
Steering Assembly
88
Accelerator/Brake Pedal Assembly
89
Service Bracket Assembly
90
9 Disposal of the Machine
91
10 Schematic
92
