Page 68

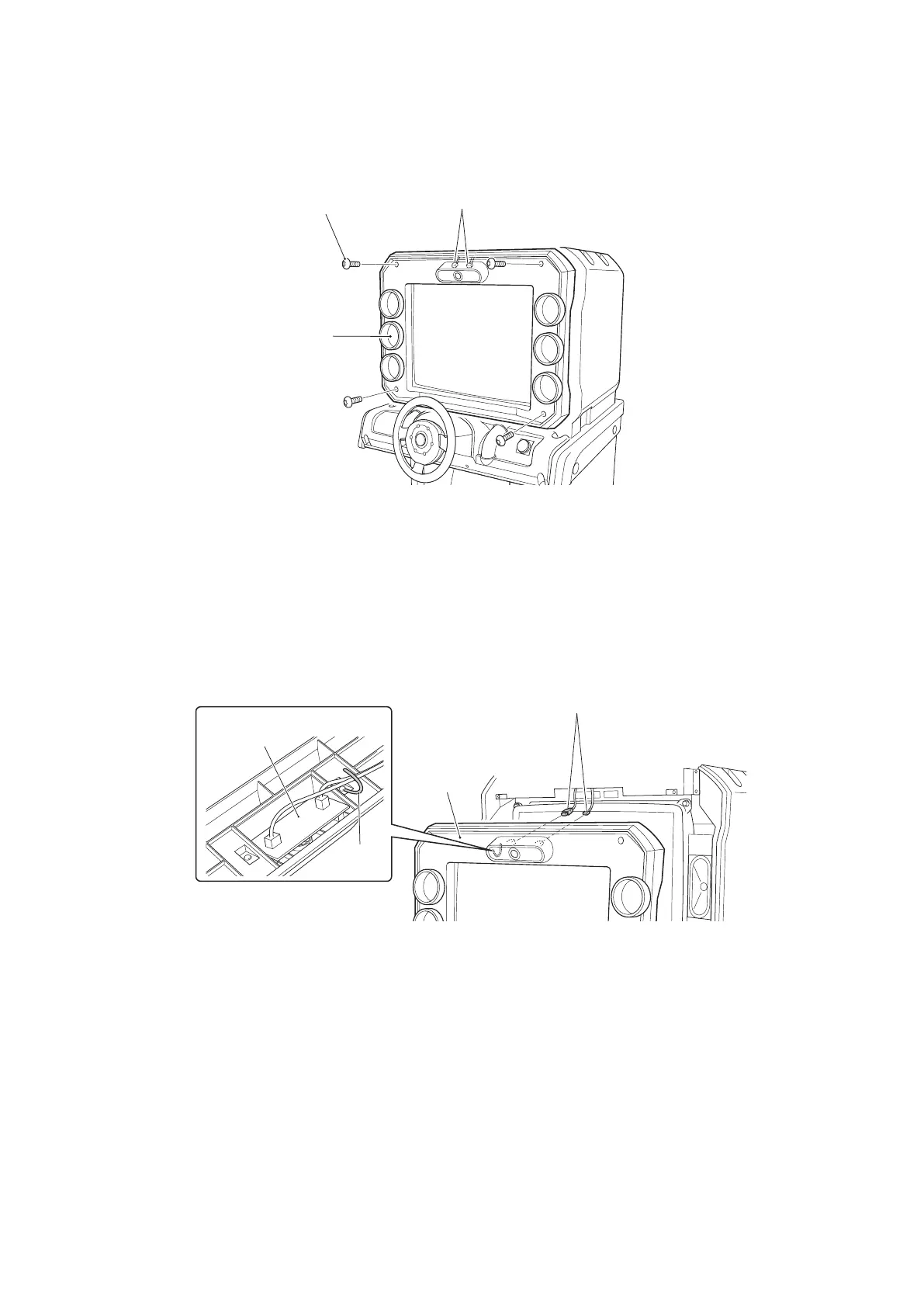

Monitor Surround

Security screw (M5x20)

Connectors

7-5 Replacing the Camera Assy

1. Remove 4off security screw (M5x20) to release the Monitor Surround.

2. Remove the Monitor Surround only sufficient to disconnect the connectors.

3. Disconnect the connectors.

Note: Undo the cable clamp when removing the connectors.

Cable Clamp

Camera Assy

Camera PCB Assy

Cable Clamp

Connectors
