5-2 Fitting the Header Assembly
The Header Assembly has a forward centre of gravity, so it is important that at
least
two people are used to fit or remove the Header Assembly.
The fitting position of the Header Assembly is very high, and it is important
that a means of reaching the height safely , without stretching, is available
(e.g. steps, step stool etc.)

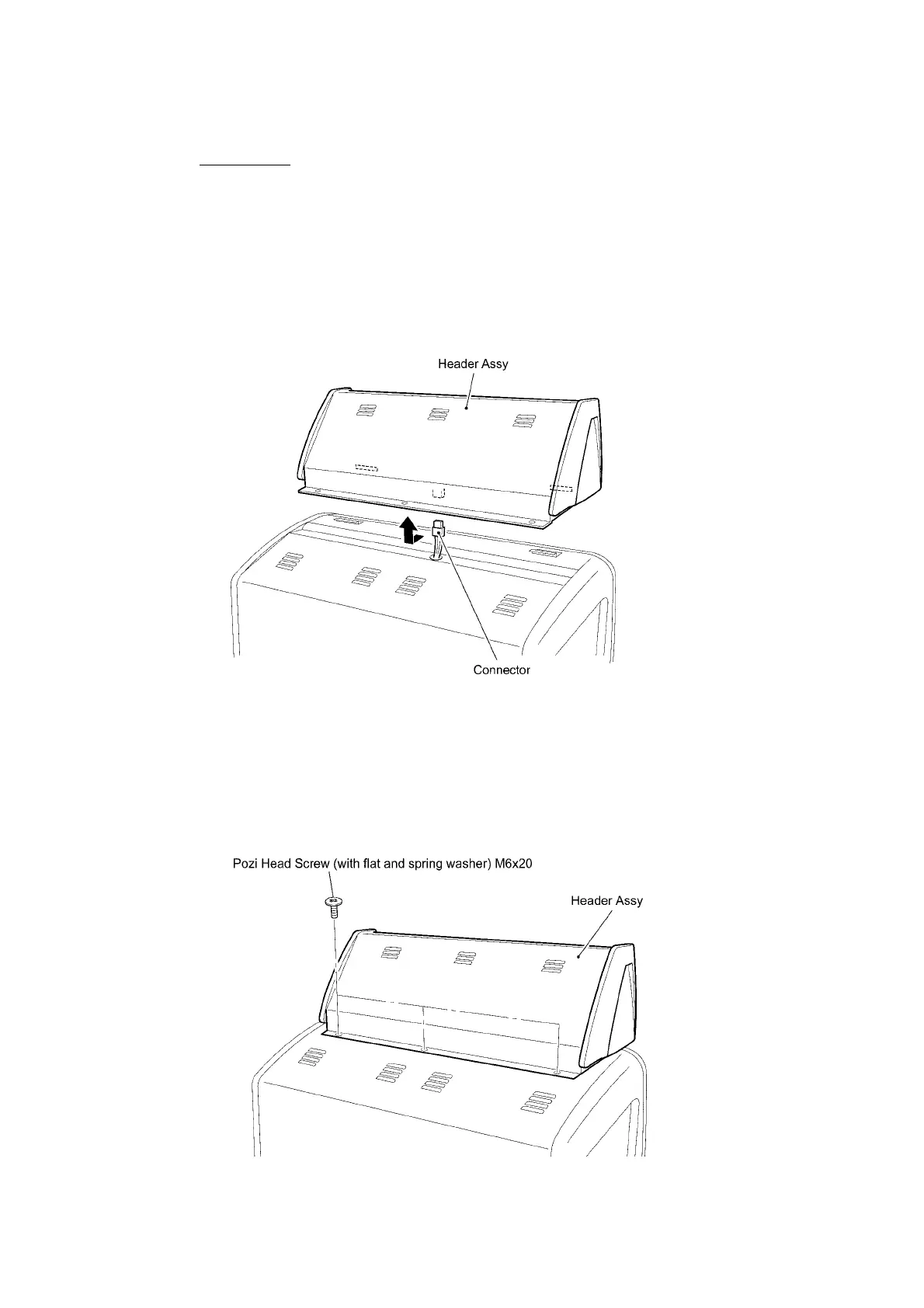

1. Place the Header Assembly on to the top of the Monitor Cabinet and
connect the connector.
2. Slide the Header Assembly forward, taking care not to trap any wires, so
that it fully engages under the retaining brackets.
3. Fit the 3off pozi head screw, with flat and spring washer, (M6x20) to retain
the Header Assembly in position.
