8-3 Replacing the Camera

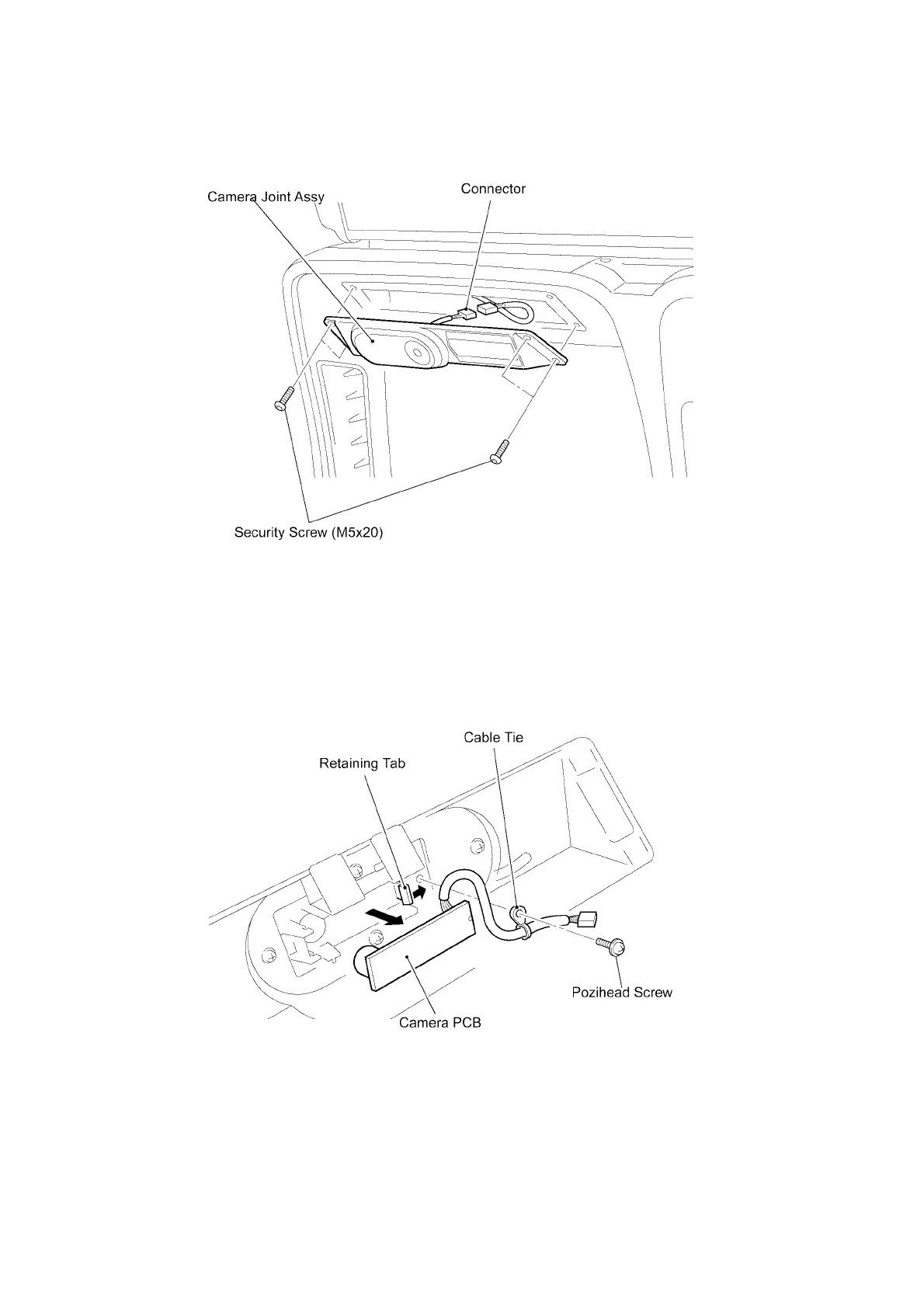

1. Remove 4off security screw (M5x20) and remove the Camera Joint Assy.
2. Disconnect the connector.
3. Remove 1off pozi head screw retaining the cable clamp.
4. Remove the Camera PCB Assy from the Camera Joint Assy by gently
pulling the retaining tab to the right to release the PCB .
5. Replace the Camera PCB Assy.
6. Reassemble in reverse order.
