Page 70
8-11 Replacing the Pedal Potentiometer

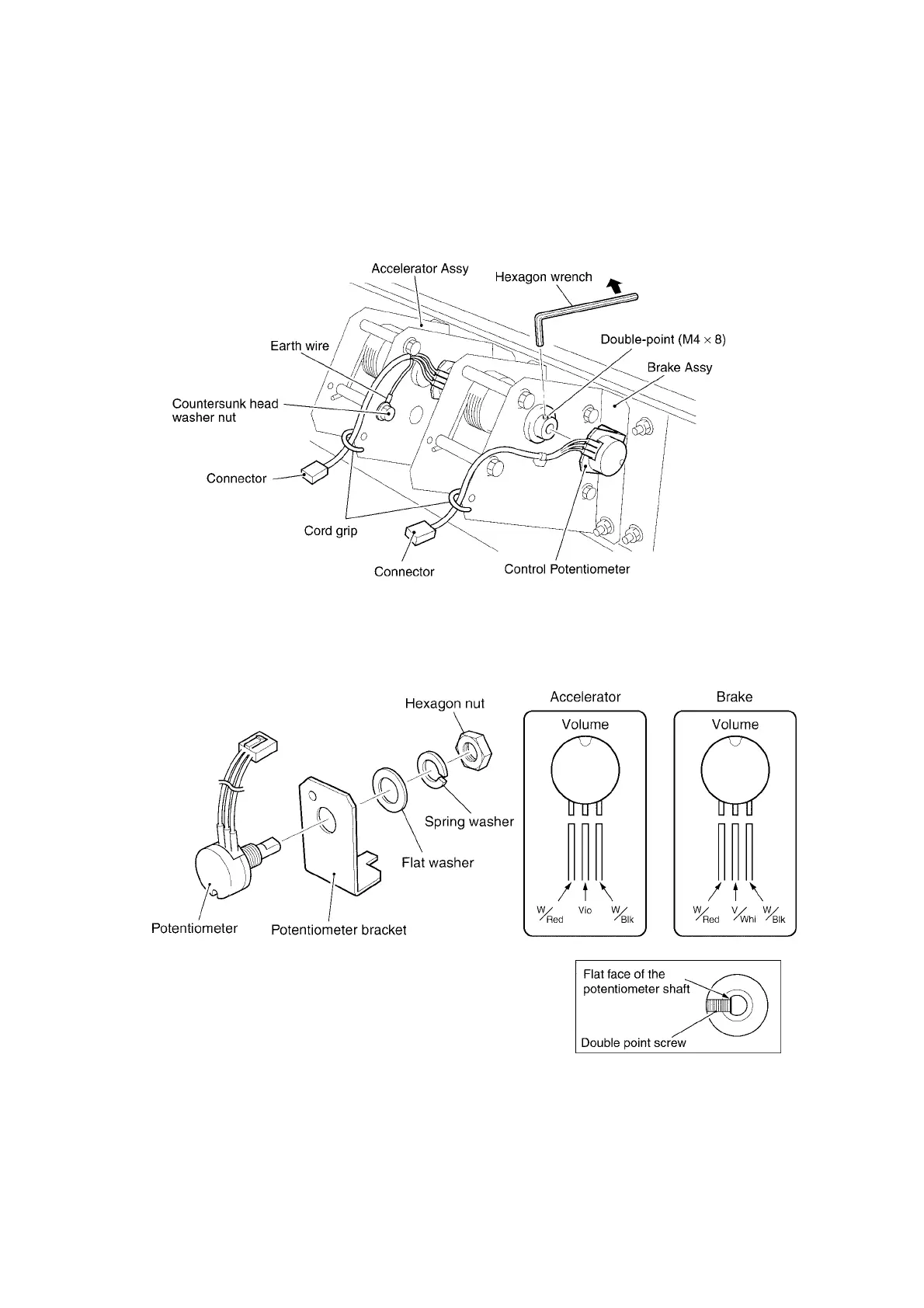

1.Remove the pedal asembly. (see 8-9 page 68)
2. Slacken the double point screw (M4x8) and remove the potentiometer
complete with potentiometer bracket.
3. Replace the potentiometer ensuring that the correct colour wires go to the
correct terminals.
Note: When replacing the potentiometer
ensure that the double point screw
engages on the flat of the potentiometer
shaft.
4. Reassemble in reverse order.
Note:After replacing the potentiometer ensure that the game is re-
initialized. (see section 7 page 57)
