Page 67
8-8 Replacing the Steering Potentiometer
1.Remove the steering assembly. (see 8-6 page 65)

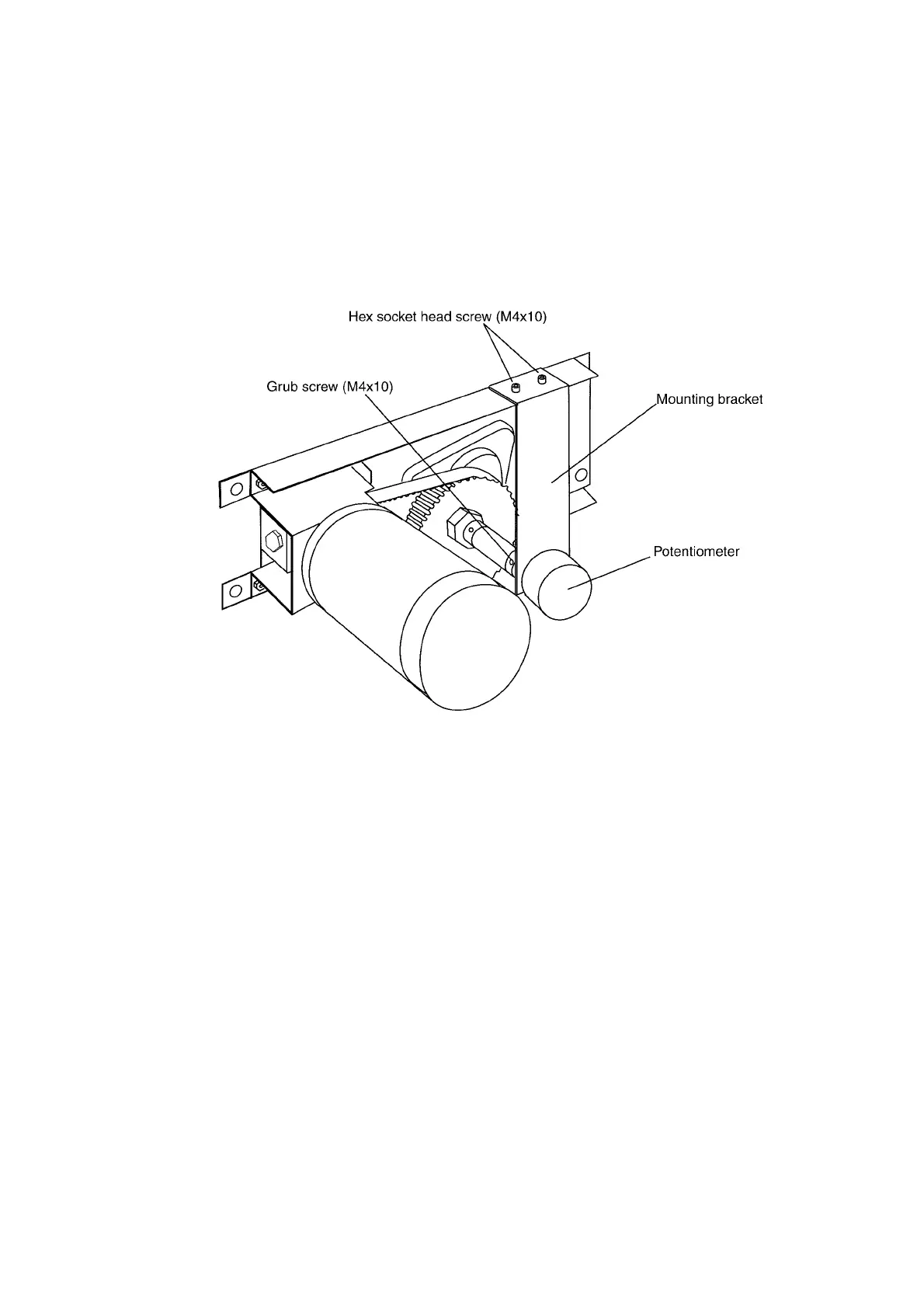

2. Remove 2off hex socket head screws (M4x10) holding the potentiometer
mounting bracket to the front plate.
3. Slacken the grub screw (M4x10) and remove the potentiometer complete
with the mounting bracket.
4. Replace the potentiometer taking care to replace the correct colour wire
to the correct terminal.
5. Reassemble in reverse order.
Note: When refitting the potentiometer ensure that the grub screw engages
on the flat of the potentiometer shaft.
6.After replacing the potentiometer ensure that the game is re-
initialized. (see section 7 page 57)
