Page 68

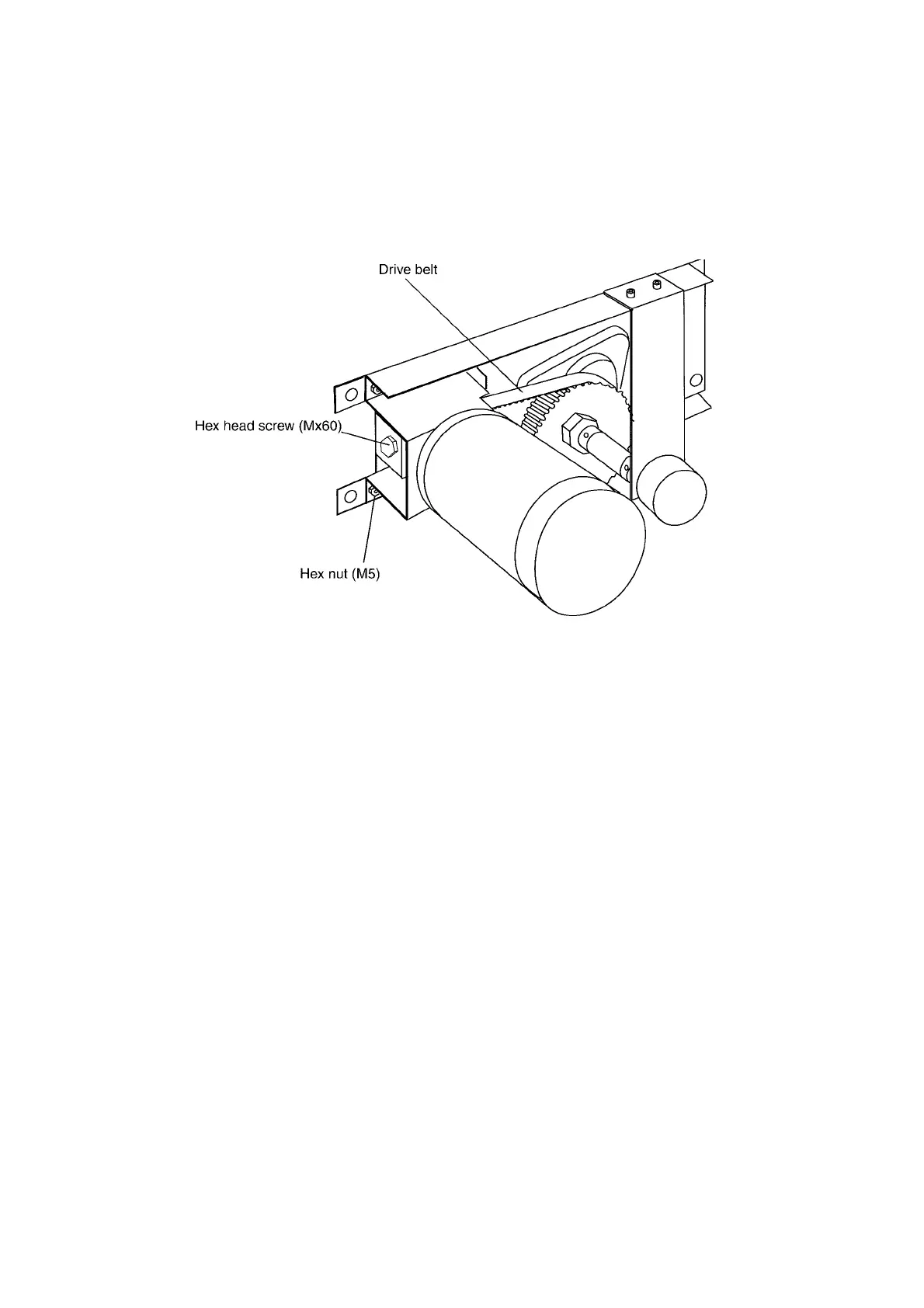

8-9 Replacing the Drive Belt
1.Remove the steering assembly. (see 8-6 page 65)
2. Slacken the adjustment screw (hex head M6x60).
3. Slacken the 4off hex nuts to remove the tension from the belt.
4. Replace the drive belt.
5. Tighten the adjustment screw (M6x60) to tension the belt correctly.
Note: Do not over tension the drive belt.
6. Retighten the 4off hex nuts.
7. Refit the steering assembly.
Note:After replacing the drive belt ensure that the game is re-initialized.
(see section 7 page 57)
