Page 37
5-3 Fitting the Seat Assemblies

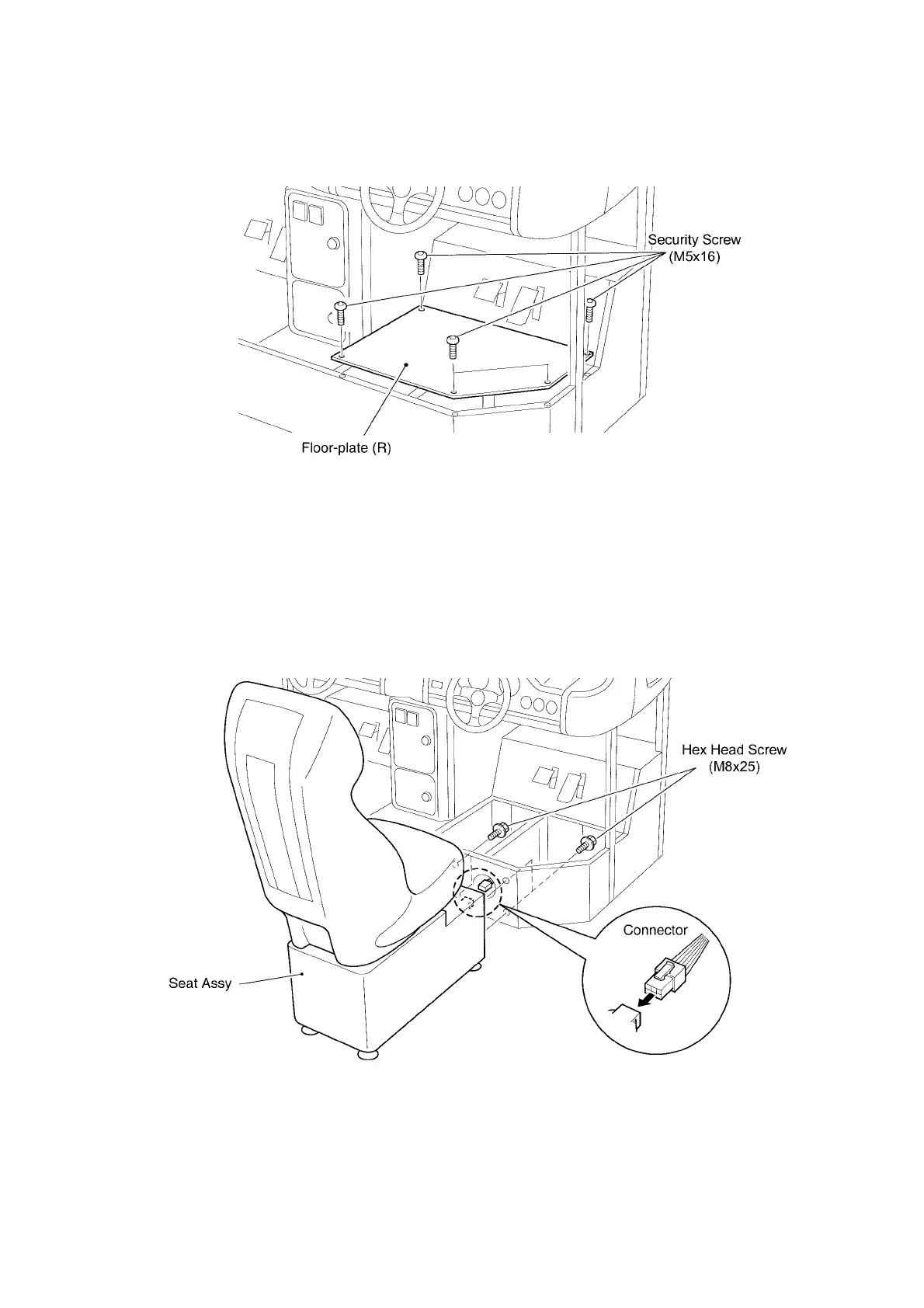

1. Remove 10off security screw (M5x16) and remove both floor plates.
2. Place the Seat Assemblies up to the Monitor Cabinet and set the
adjustable feet so that the seat base is level with the main cabinet.
3. Connect the connectors.
4. Fit the 8off Hex head screws (M8x25), 4 screws per seat, with flat and
spring washers to retain the Seat Assemblies in position.
5. Refit the floor plates with the 10off security screws (M5x16).
