NAMCO Race on! User Manual

Page 71

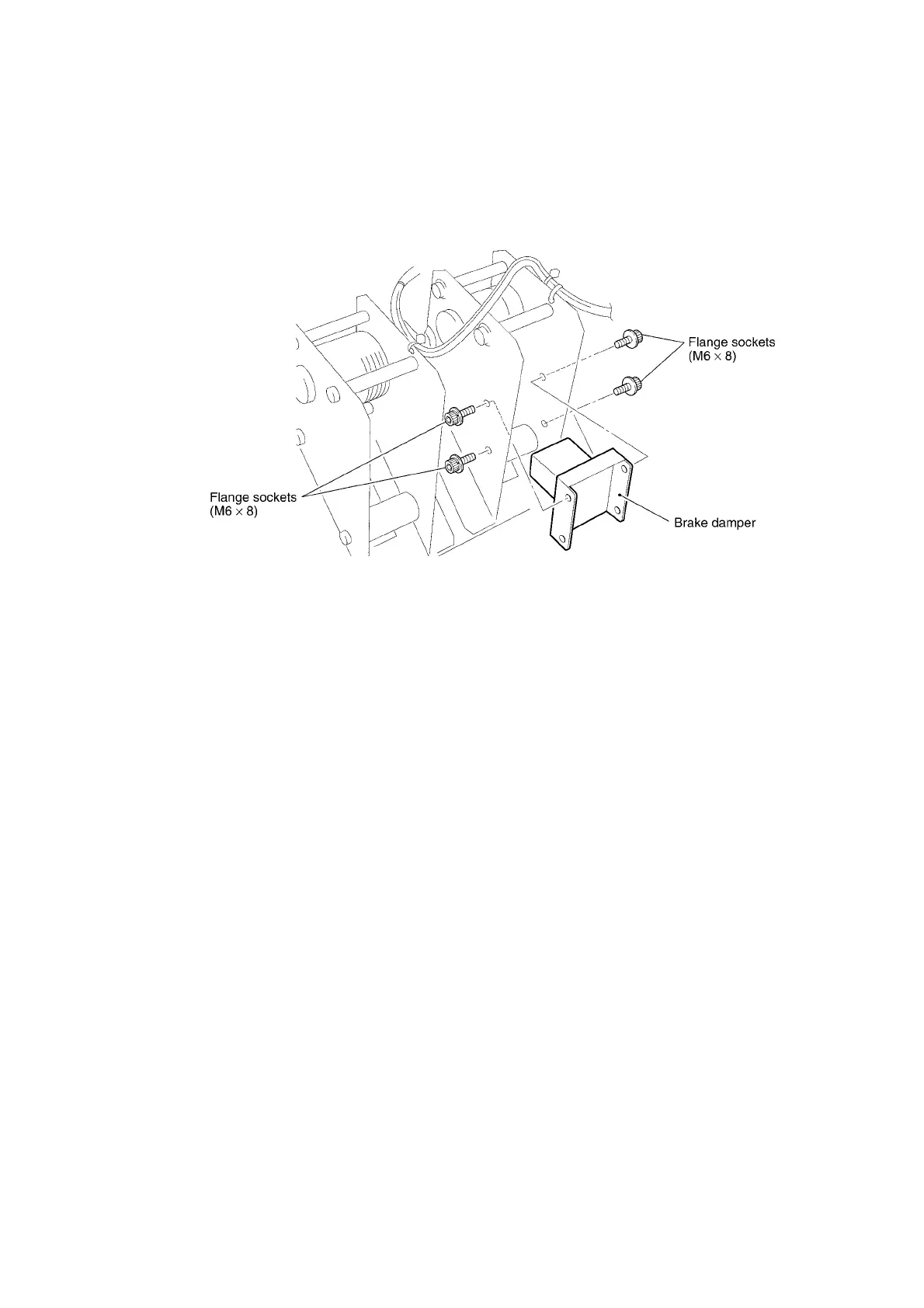

8-12 Replacing the Brake Damper
1.Remove the pedal assemble. (see 8-9 page 68)
2. Remove 4off flange socket head screws (M6x8) and remove the brake
damper assy.
3. Replace the damper assy and reassemble in reverse order.
Note:After replacing the damper ensure that the game is re-initialized.
(see section 7 page 57)

NAMCO Race on! Specifications

General

Brand	NAMCO
Model	Race on!
Category	Game
Language	English
