13 Accelaterm
®
Installation and Service Manual
IMPORTANT: Keep power-limited wiring AT LEAST 1/4" (one-quarter of an inch) away from the top of the ex-
posed printed circuit boards, and away from the Battery Compartment. Use clear tubing for auxil-
iary power "ACC PWR OUT" wiring as noted in the above image.

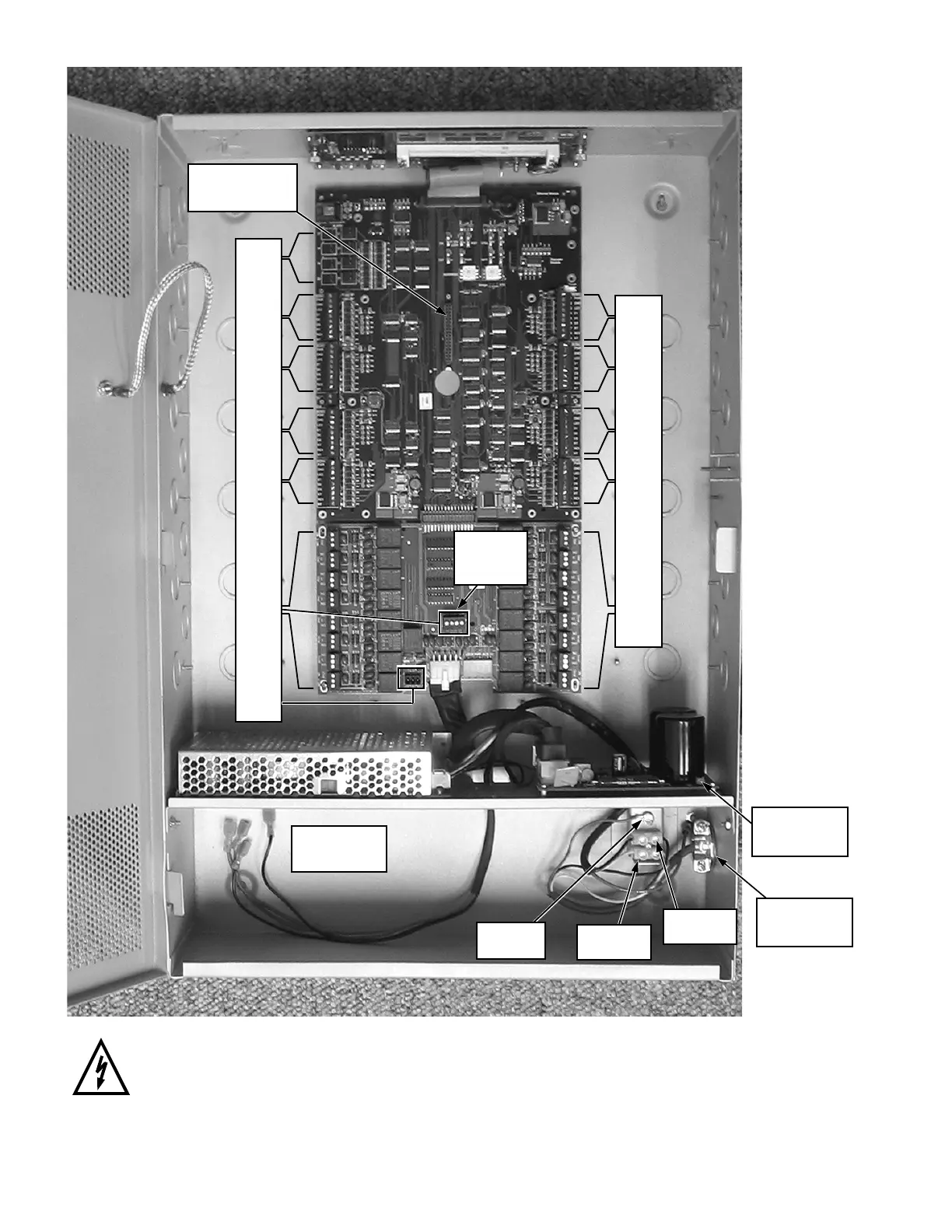

Figure 7 - Power Limited Wiring Information
POWER CONNECTIONS
Neutral
Connection to
branch circuit
Class 1 Wiring
Connection
Power Limited Wiring
Power Limited Wiring
Battery
Compartment
(Use Clear
Tubing for
these wires)
Ground
Connection
Line
Connection to
branch circuit
Green LED AC
power "ON"
indicator light
CICP2800EXPRDBD
8 Reader Expansion
Board connector
To Next Page
