Accelaterm
®
Installation and Service Manual 16
PWR
GND
LED
D1
D0
DS
RT
REX
RT
DOOR CONNECTIONS

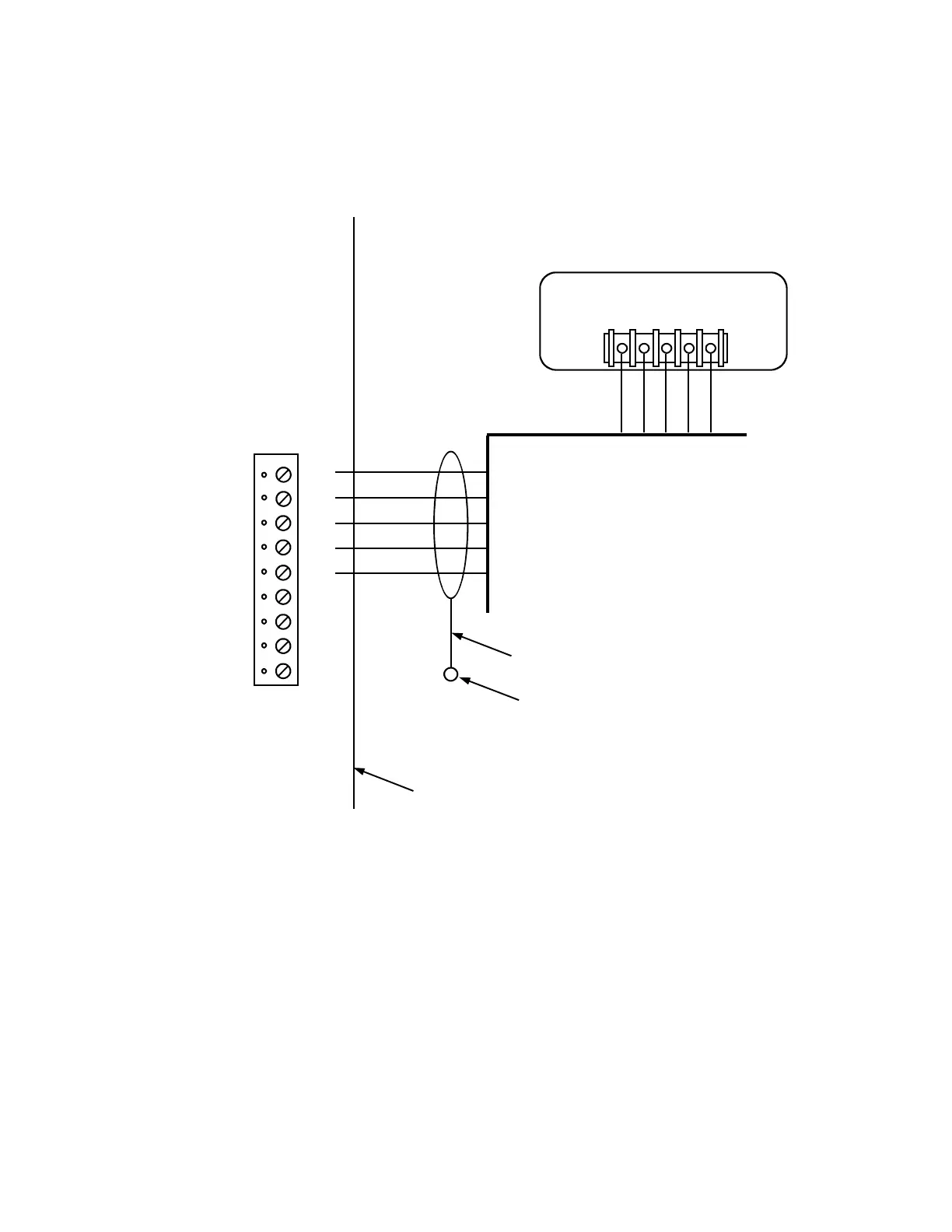

Figure 9 - Wiegand/Proximity Reader Connection to Accelaterm Board
Accelaterm Circuit Board
Wiegand Proximity Reader
Terminal
Strip
Red
Black
Brown
White
Green
Drain Wire/Shield
Accelaterm Cabinet Ground Post
