9 Accelaterm
®
Installation and Service Manual
Installation Preparation
First, select a mounting location within a secure, limited ac-
cess area (see Figure 2). Make note of the wall construction
type to which the cabinet will be secured.
• Ensure adequate space is available for mounting the Ac-
celaterm cabinet vertically on a wall with no interference
from wires, pipes, or other obstructions. The Accelaterm
measures:
Height: 24-3/8" (620mm)
Width: 16-3/8" (416mm)
Depth: 5" (127mm)
• Confirm that adequate free space exists on both sides of
the Accelaterm cabinet for cabling conduit entering and
exiting the cabinet.
• Determine the directions of the cabling conduit exiting
the Accelaterm cabinet. Confirm sufficient access to
ceilings and/or walls before fitting the conduit lengths.
• Knockouts at the back of the unit may be used for
"hidden wiring" installations.
• Use all 4 mounting screws to secure cabinet to wall.
Note: All Accelaterm signal wiring and accessory power
circuits are power limited. The use of conduit is optional
for these circuits (if accepted by your Authority Having
Jurisdiction [AHJ]).
INSTALLATION

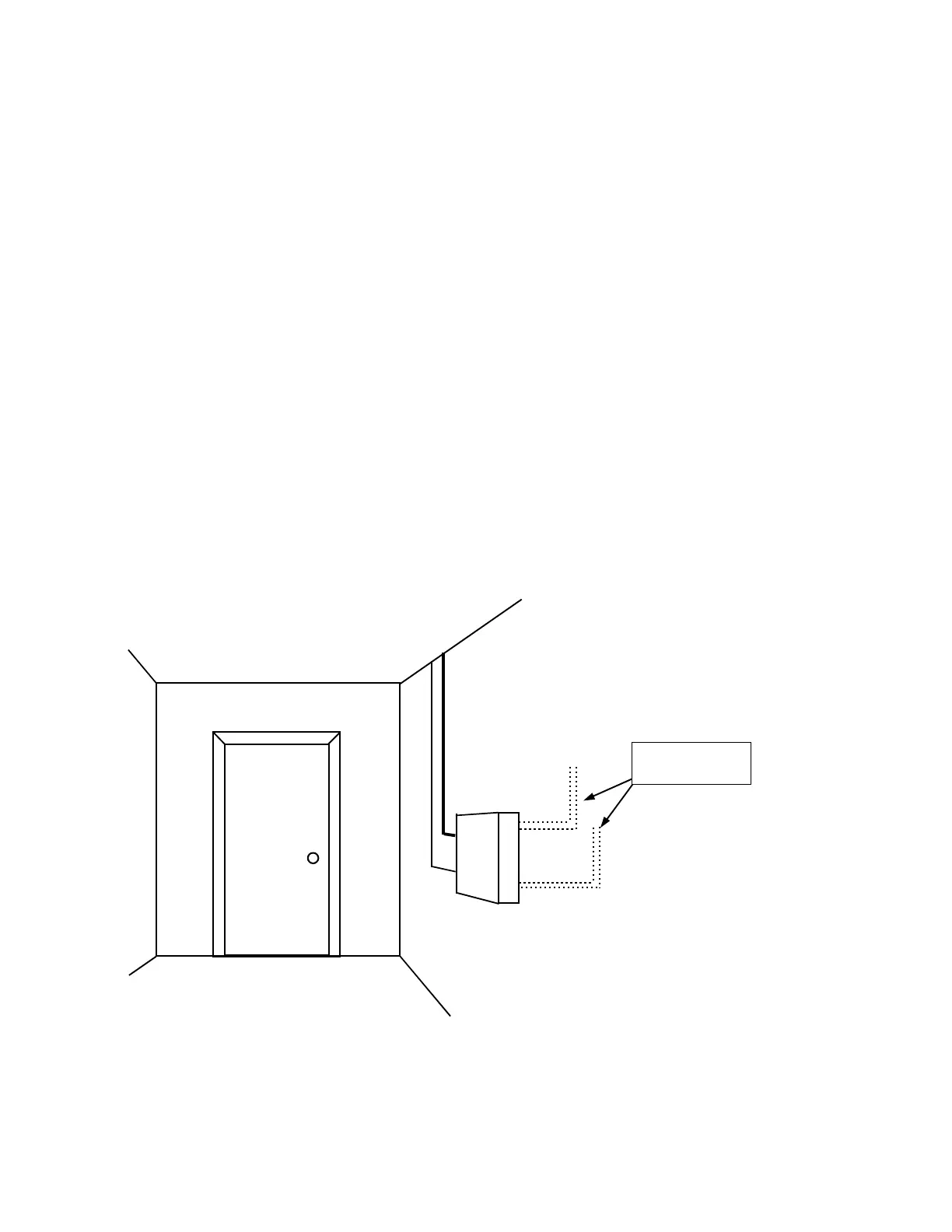

Figure 2 - Accelaterm Installation Location
Accelaterm
Panel
Assembly
Optional "hidden
wiring" installation
