Minimum clearance to combustible construction from appliance and vent surfaces:
Appliance framing: - 6” to top
- 0” to stand-offs
(Rear and sides)
Vent pipe*: - 2” top
- 1” sides and bottom
Recessed depth: - 7”
WITHOUT FRAME INSTALLED
WITH FRAME INSTALLED

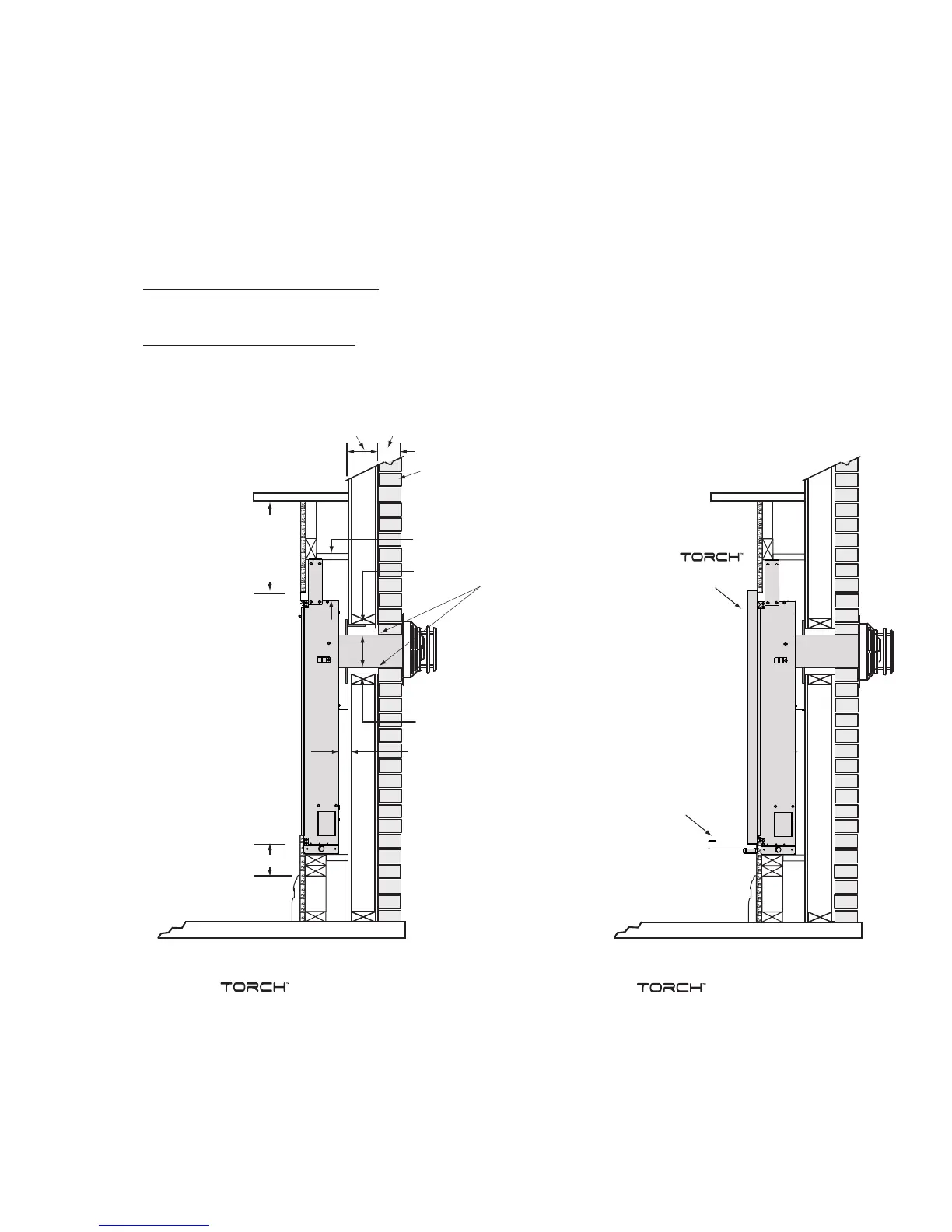

5.1 MINIMUM CLEARANCE TO COMBUSTIBLES
2” MIN.*
12” MIN. TO
COMBUSTIBLES
(to ceiling or mantle)
1
1
/2” MIN.
* Any protruding
finishing material
installed in this space
(ie. baseboards) must
leave 2” of
unobstructed clearance
to allow for full rotation
of the control door.
COMBUSTIBLE
NON-COMBUSTIBLE
2”
1”
0” IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK AND
STONE.
BRICK
6” MIN.
FRAME
CONTROL
DOOR (OPEN
POSITION)
* HORIZONTAL VENT SECTIONS: A minimum clearance of 1” at the bottom and sides and 2” at the top of the
vent pipe in all horizontal runs to combustibles is required. Use fi restop spacer W010-1961 (supplied).
* VERTICAL VENT SECTIONS: A minimum of 1” all around the vent pipe on all vertical runs to combustibles
is required. Use fi restop spacer W500-0358 (not supplied).
