22
W415-0794 / A / 06.08.10
!
WARNING
6.0 FINISHING

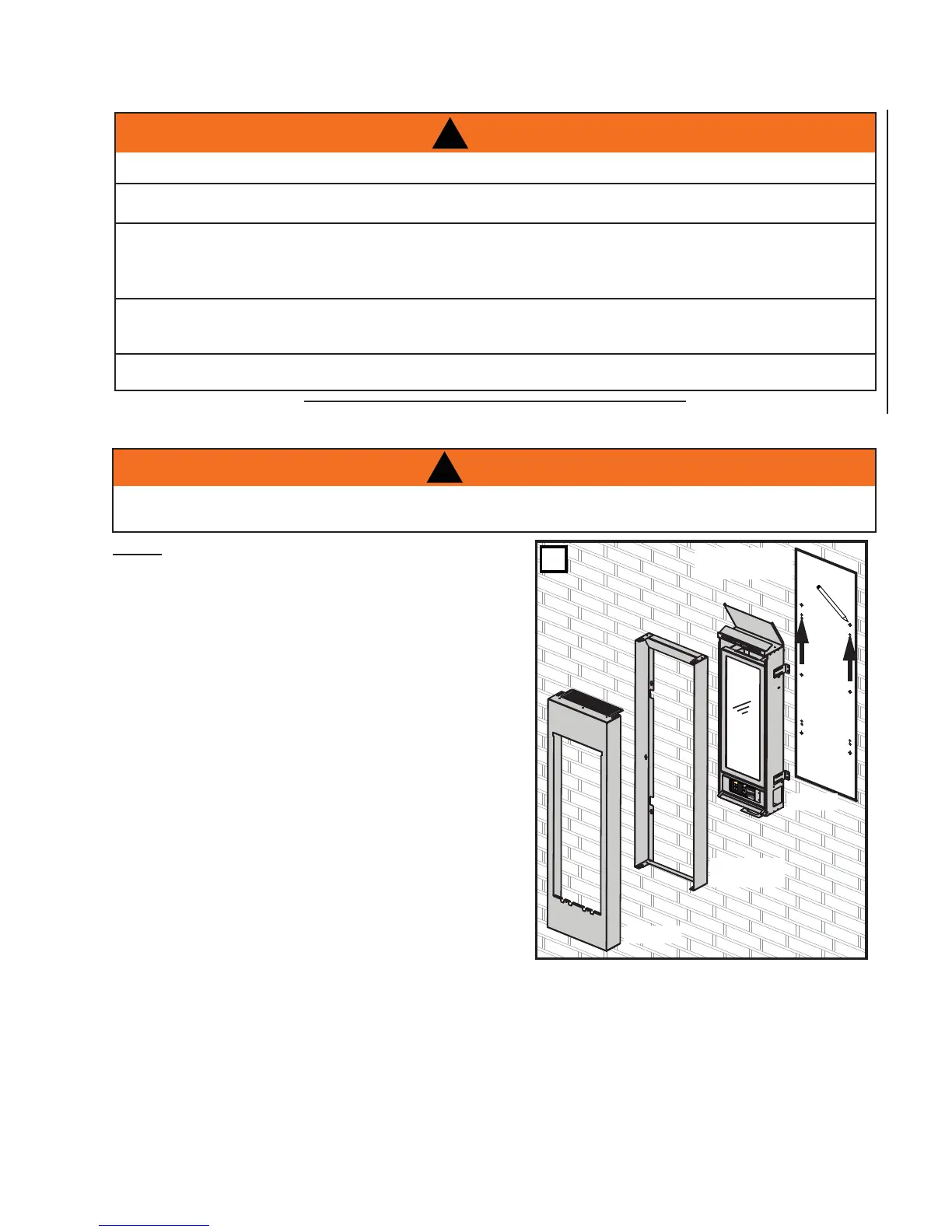

6.1 MOUNTING CABINET INSTALLATION
INSTALLATION
TEMPLATE
TORCH
MOUNTING
FRAME
CABINET
1
NOTE: It is recommended that all fasteners be stain-
less steel.
6.1.1 Using the installation template (W122-0401) sup-
plied with the TMCK or TMCSS kit, determine the
best mounting location for your new Torch. See
“MINIMUM CLEARANCE TO COMBUSTIBLES”
section. Mark all 14 hole centres on the wall (sur-
face) using the template.
BEFORE STARTING THE INSTALLATION REMOVE THE PROTECTIVE LAYER FROM ALL THREE
COMPONENTS THAT MAKE UP THE GT8 (CABINET, FRAME, AND TORCH)
!
WARNING
RISK OF FIRE!
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
THE FRONT OF THE APPLIANCE MUST BE FINISHED WITH ANY NON-COMBUSTIBLE MATERIALS
SUCH AS BRICK, MARBLE, GRANITE, ETC., PROVIDED THAT THESE MATERIALS DO NOT GO
BELOW THE SPECIFIED DIMENSION AS ILLUSTRATED.
DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS
REMOVED, CRACKED, BROKEN OR SCRATCHED.
FACING AND/OR FINISHING MATERIAL MUST NEVER OVERHANG INTO THE APPLIANCE OPENING.
72.1A
