23
W415-0794 / A / 06.08.10
2
MOUNTING
BRACKET
4
3
KEYHOLE

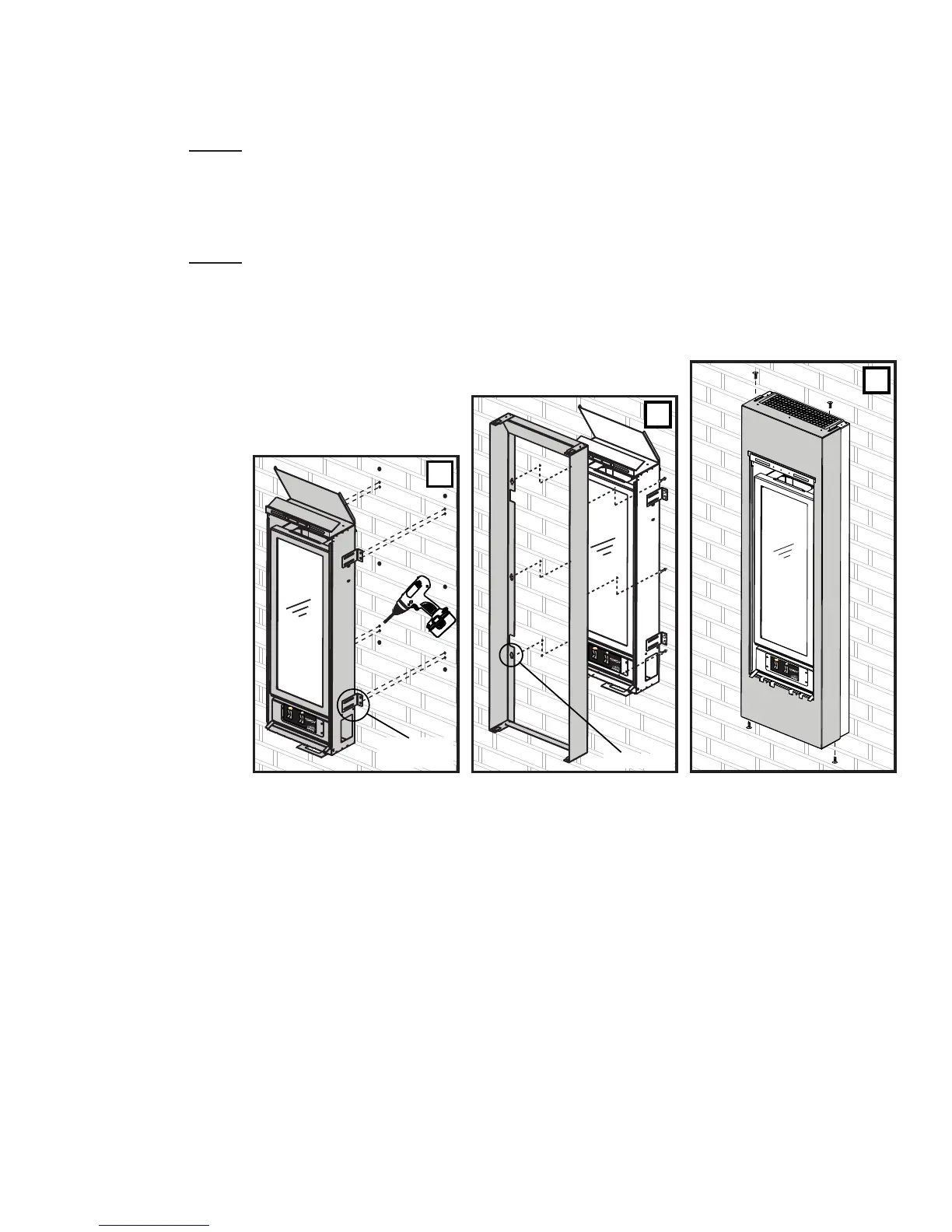

6.1.2 Remove the template. Depending on the surface and fasteners, drill the appropriate holes. Hold the
Torch up, aligning the mounting brackets to the mounting holes. Secure the Torch to the wall using the
appropriate fasteners.
NOTE: The Torch has been designed to have a 1/2” clearance between the rear outer panel and
the mounting surface.
6.1.3 Start the fasteners into each of the six remaining mounting holes. Align the keyholes of the frame to
the heads of the fasteners and slide the frame down onto the fasteners. Ensure the frame is plumb
and level before tightening the fasteners.
NOTE: It is recommended that the gas and electrical be connected to the appliance at this
stage. Both must enter the appliance at the opening created between the bottom of the Torch
and the bottom of the mounting frame.
6.1.4 Slide the front of the cabinet over the mounting frame, ensuring the “mesh” is to the top. Start each of
the four screws (supplied) through the slots. Once the cabinet has been
adjusted for depth the four screws can be tightened.
